Theoretical output capability: 30 – 50 m³/h
Max. Theo. vertical conveying distance: 120m
Max. Theo. horizontal conveying distance: 500m
What is a Concrete Mixer Pump?
The concrete mixer pump is an integrated construction equipment that combines concrete mixing and pumping functions in one unit. It integrates the advantages of a concrete mixer and a concrete pump, realizing the integrated operation of "mixing - pumping - conveying", which greatly improves the construction efficiency, reduces labor costs, and avoids the trouble of coordinating multiple equipment. It is widely used in various construction scenarios where concrete needs to be mixed and conveyed continuously, especially suitable for projects with limited construction space and high requirements for construction efficiency.

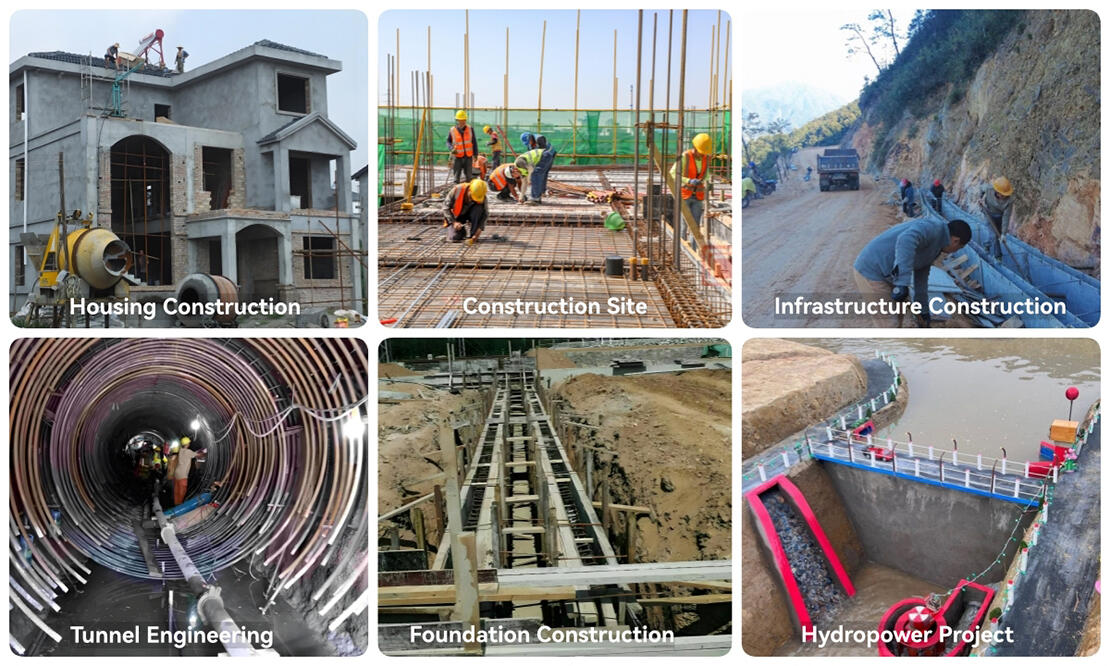

Where Can a Concrete Mixer Pump Be Used?
● Residential construction: High-rise building pouring, villa foundation, floor slab and beam column concrete pouring.
● Infrastructure projects: Highway, railway, bridge, tunnel construction, such as bridge pier pouring, tunnel lining, road base reinforcement.
● Rural construction: Rural house building, water conservancy projects (reservoir, canal), village road hardening.
● Emergency projects: Flood control and disaster relief, emergency repair of damaged buildings, temporary engineering construction.
● Other scenarios: Industrial plant construction, prefabricated component factory, landscape engineering, etc.
What are the types of concrete mixer pumps?
● Three different types of mixers
According to the structure of the mixing device, the concrete mixer pump is mainly divided into three types, each with its own characteristics and applicable scenarios, which can meet the needs of different construction projects:

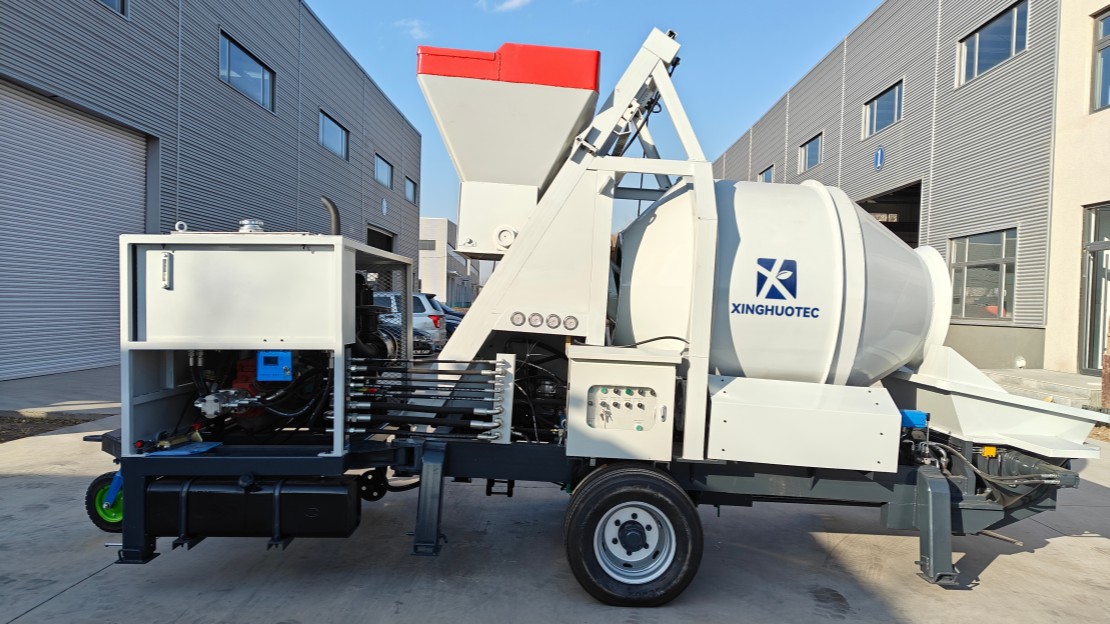

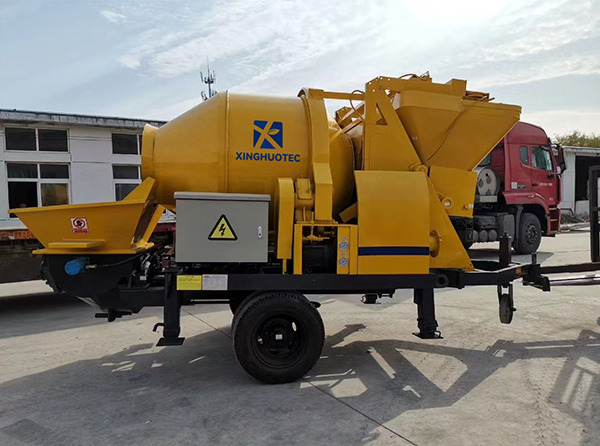

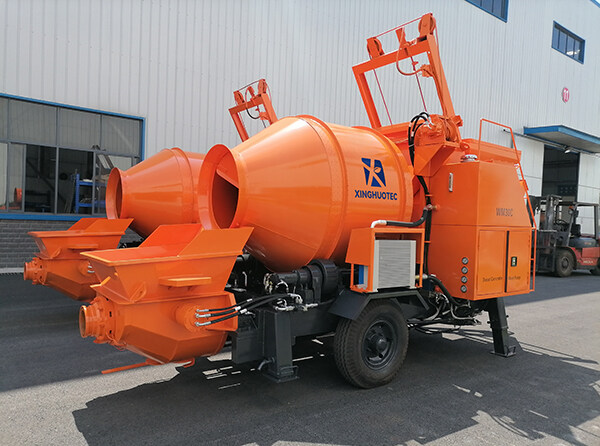

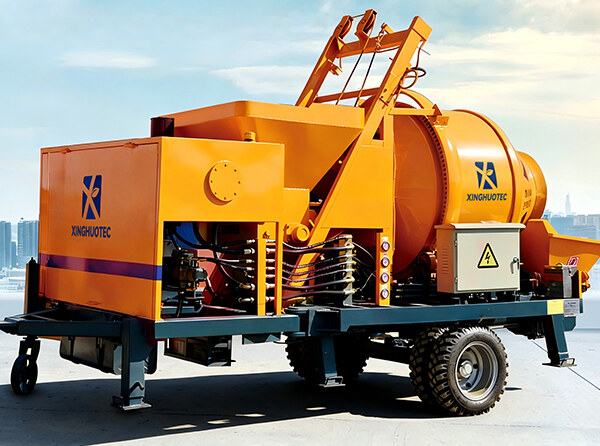

Concrete Mixer Pump

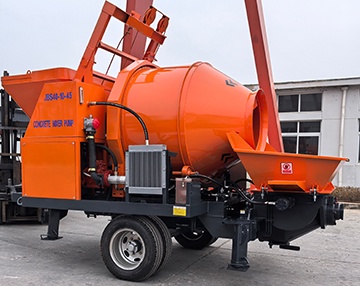

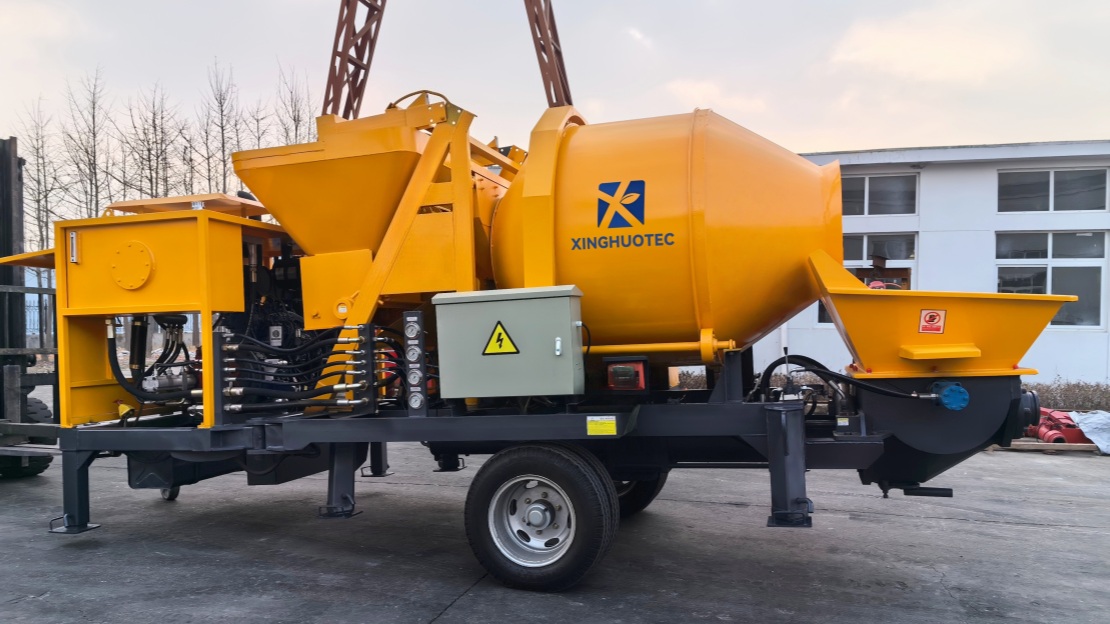

with Drum Mixer
Mixing is achieved through the rotation of the drum and internal mixing blades. It has the advantages of simple structure, easy maintenance, and low failure rate, and is suitable for small and medium-sized building projects with low requirements for concrete uniformity.such as rural house building and small-scale road construction.

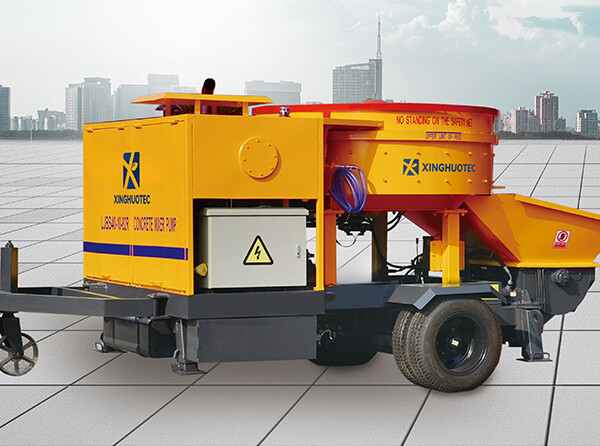

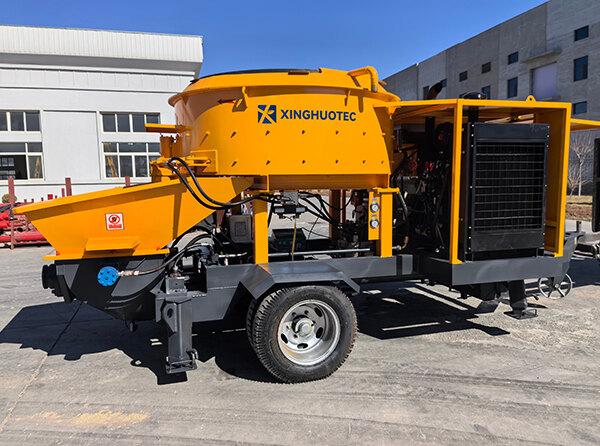

Concrete Mixer Pump
with Vertical Shaft Mixer
The mixing device is of the vertical shaft type, equipped with a pan mixer. The mixing blades rotate at high speed to mix the raw materials. It features uniform mixing, high efficiency, and compact size, making it suitable for projects with limited construction space and high requirements for concrete quality.such as prefabricated component production.

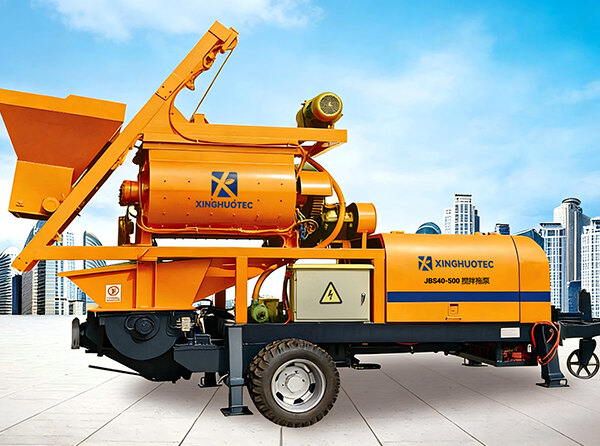

Concrete Mixer Pump
with Twin Shaft Mixer
It is equipped with two parallel horizontal shafts, and the stirring blades on the shafts rotate in opposite directions to stir the raw materials. It has the advantages of strong mixing capacity, uniform mixing, and high production efficiency, which is suitable for large-scale construction projects with large concrete demand, such as bridge, tunnel and industrial plant construction.
● Three different power sources
There are three main power types of concrete mixer pump, which can be selected according to the on-site power supply conditions and construction needs.

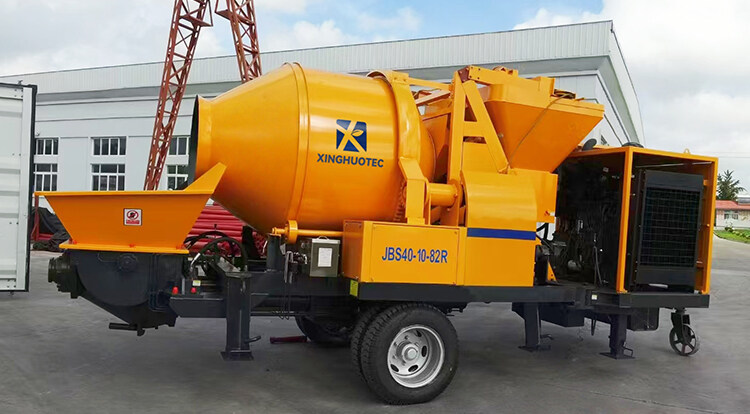

Concrete Mixer Pump
with Diesel Engine
Driven by a diesel engine, it has strong mobility and flexibility, and does not rely on external power supply. It can be used in remote construction sites, rural areas, or construction sites with unstable power supply. It has a wide scope of application and can adapt to various harsh construction environments.
Concrete Mixer Pump

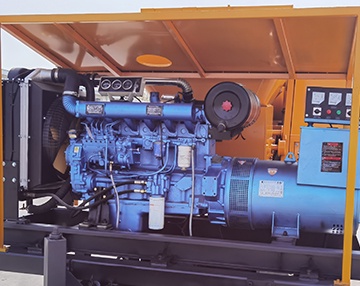

with Electric Motor + Generator Set
This concrete mixer pump is driven by a motor, but it is equipped with a diesel generator set. It is suitable for customers with unstable power supply . When there is electricity, the motor is used for driving, and when there is no electricity, The diesel generator set can be connected for power generation. This machine has strong compatibility.

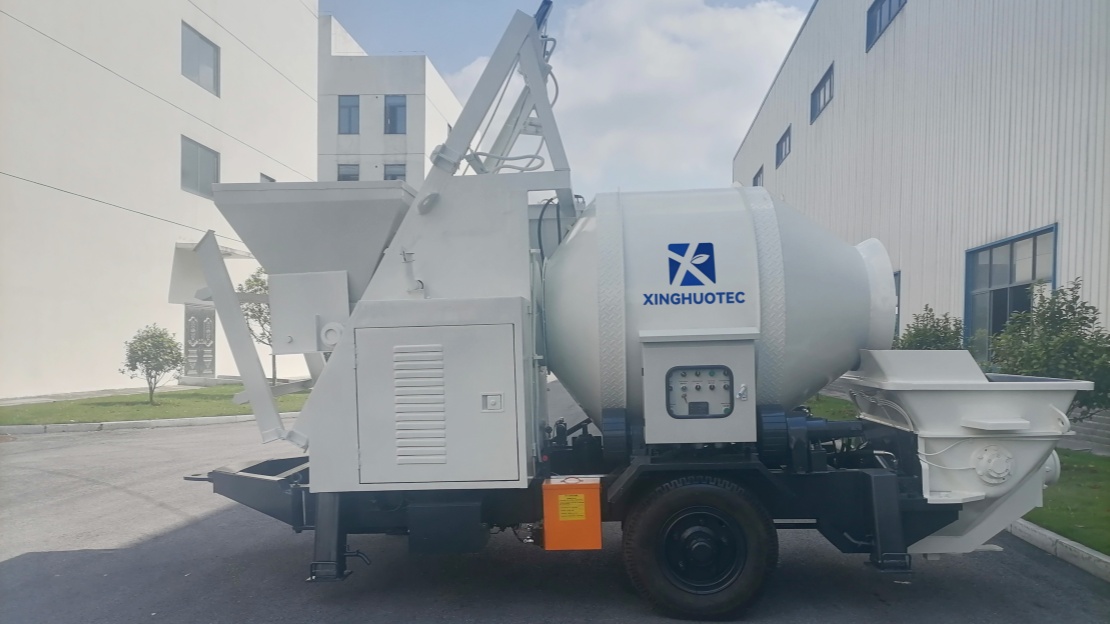

Concrete Mixer Pump
with Electric Motor
Driven by an electric motor, it has the advantages of low noise, low energy consumption, environmental protection and energy saving. It is suitable for construction sites with sufficient and stable power supply, such as urban construction projects, industrial parks, and prefabricated component factories. It can effectively reduce the operation cost.
How Does a Concrete Mixer Pump Work?
As we offer multiple types of concrete mixer pumps, we will take the Concrete Drum Mixer Pump as an example here.
The working process of the concrete mixer pump is a continuous and coordinated operation of mixing and pumping, and its core principle is to complete the whole process of concrete preparation and conveying through the linkage of multiple components. The specific working steps are as follows:
● Feeding: The raw materials (cement, sand, gravel, water, admixtures) are put into the mixing drum according to the specified proportion manually or by automatic feeding equipment.
● Mixing: The mixing drum rotates at a certain speed under the drive of the power system, and the internal mixing blades fully stir the raw materials to form uniform concrete.
● Discharging & Pumping: After the concrete is mixed, the discharge door of the mixing drum is opened, and the concrete flows into the hopper of the pump body. The pump body uses the hydraulic system to drive the piston to reciprocate, forming negative pressure in the pump cylinder, sucking the concrete into the cylinder, and then pushing it out through the conveying pipe to the construction position.
● Continuous Operation: The mixing and pumping processes can be carried out synchronously. While the next batch of raw materials is being mixed, the mixed concrete is continuously pumped, realizing uninterrupted construction and improving work efficiency.
Why Choose XINGHUOTEC Concrete Mixer Pumps?
XINGHUOTEC concrete mixer pumps are designed for efficient work
Our concrete mixer pump integrates advanced technology and practical design, focusing on solving the pain points of traditional construction equipment, with the following core features:
● Integrated Design, High Efficiency: Integrates mixing and pumping functions, eliminates the need for additional mixing equipment and transportation links, reduces the time of concrete transfer, and improves construction efficiency by 30% - 50% compared with traditional separate equipment.
● Flexible Movement, Wide Adaptability: The equipment is equipped with a movable chassis (optional crawler or wheel type), which is easy to move and transfer on the construction site. It can adapt to various complex terrains, such as slopes, uneven ground, and narrow construction spaces.
● Stable Performance, Low Failure Rate: Adopts high-quality core components (Diesel Engine, hydraulic system, mixing drum, pump body) from well-known brands, with strict quality control and long service life. The optimized structural design reduces the failure rate during operation and ensures continuous and stable construction.
● Easy Operation, Labor Saving: Equipped with an intelligent control system, the operation interface is simple and intuitive, and one person can complete the whole operation of feeding, mixing and pumping, which greatly reduces labor input and labor intensity.
● Energy Saving and Environmental Protection: The electric model adopts high-efficiency motor, low energy consumption and no exhaust gas emission; the diesel model adopts advanced combustion technology, which reduces fuel consumption and exhaust pollution, meeting the environmental protection requirements of various regions.
● Adjustable Parameters, Strong Versatility: The mixing speed, pumping speed and concrete output can be adjusted according to the construction needs, which can adapt to different types of concrete and different construction scenarios, with strong versatility.
XINGHUOTEC concrete mixer pumps pays attention to details to ensure long-term quality
● Using well-known brand components: The power unit, hydraulic system, mixing system, pumping system, electronic control system, cooling and lubrication system of the concrete mixer pump are all made of internationally renowned or domestically renowned professional manufacturers' components to ensure stable and reliable operation of the equipment.
● Implement systematic cleaning work: Thoroughly clean or perform compressed air high-pressure blowing on oil tanks, water tanks, hydraulic pipelines, valve blocks, etc., remove all impurities, ensure clean circulation of oil and water circuits, reduce wear and tear, minimize the occurrence of system failures, and extend the service life of equipment.
● Strict pre delivery testing: Prior to shipment, we conduct high and low voltage tests on the product to ensure that the mechanical components function properly and operate stably. We will also verify its performance under actual operating conditions with load.

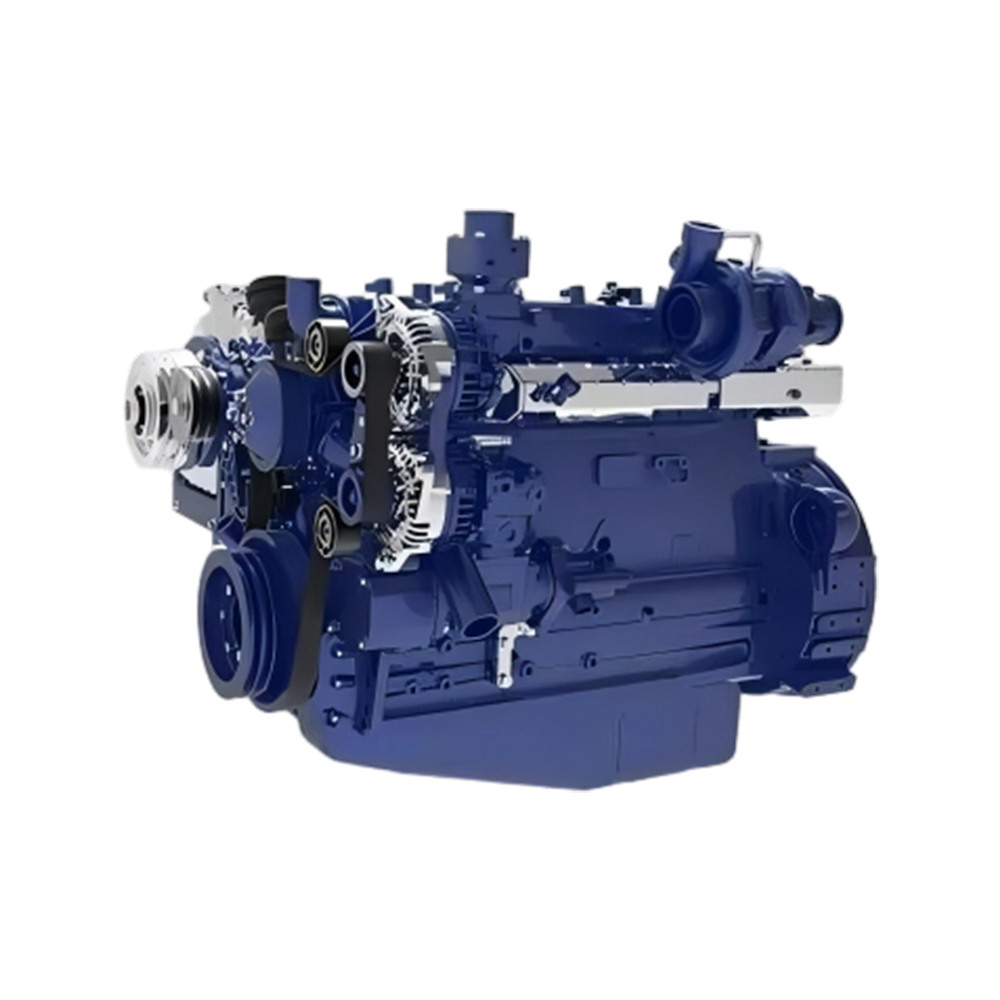

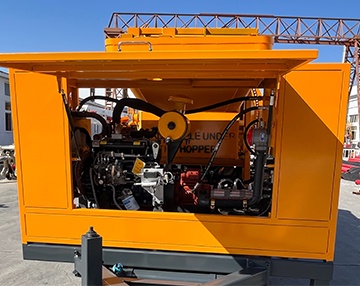

Adopting domestic renowned brands of diesel engines, such as Weichai and Yuchai, or alternatively, Dongfeng Cummins engines can be installed.

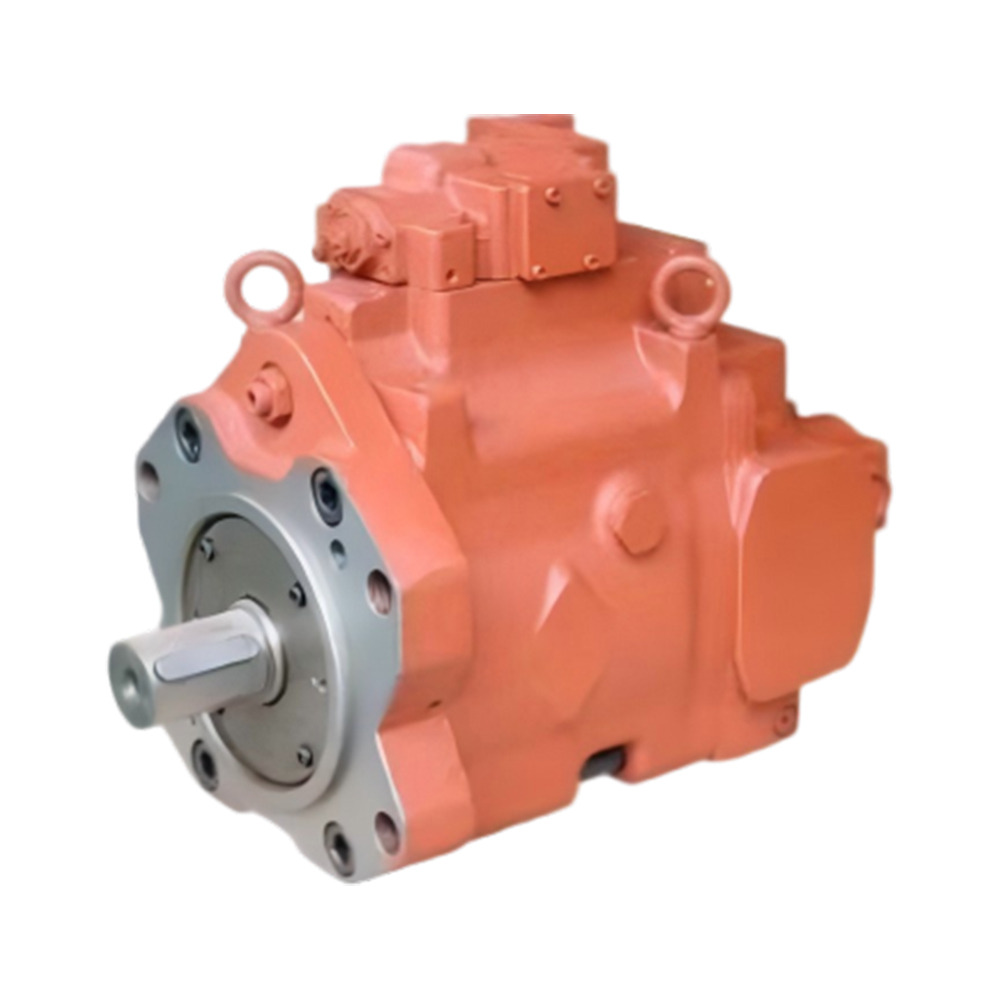

The hydraulic main oil pump adopts Kawasaki series products with mature technology, stable displacement, and low failure rate.

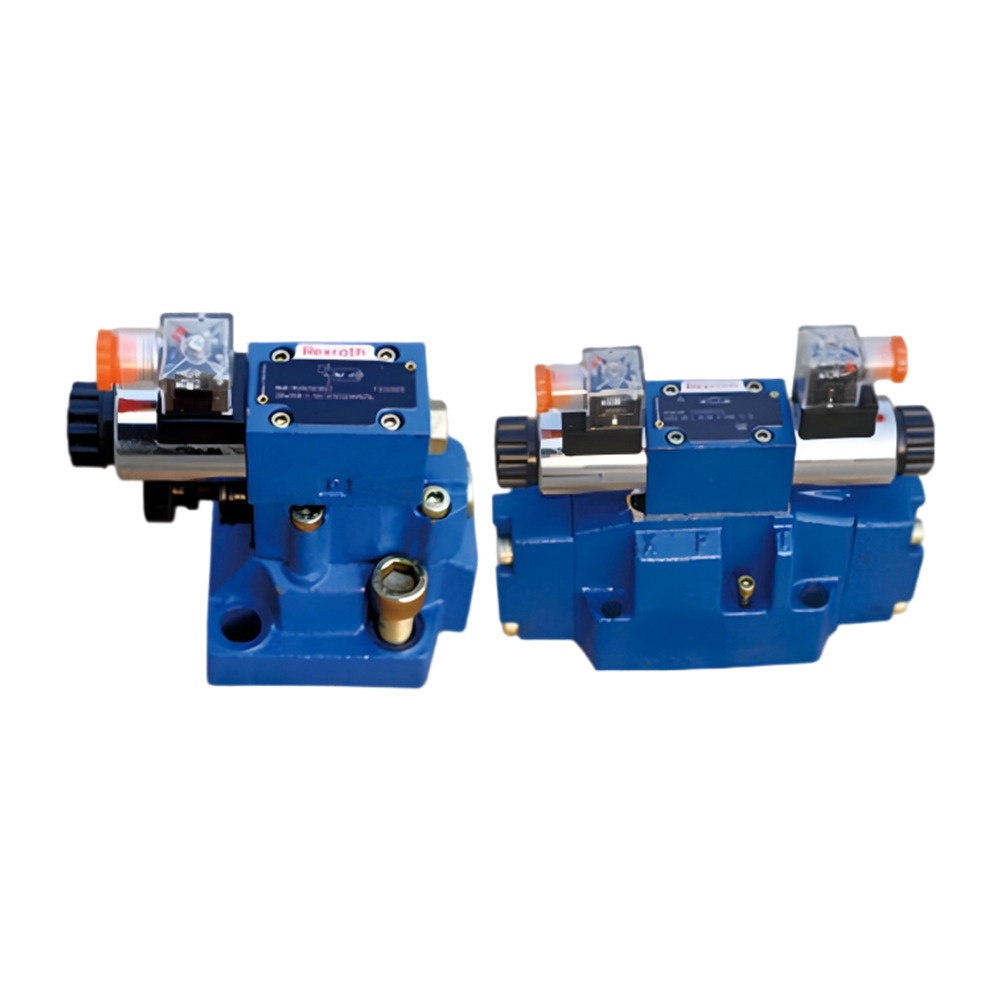

The solenoid valve group adopts internationally renowned brands such as Eaton and Rexroth, with stable performance and mature technology.

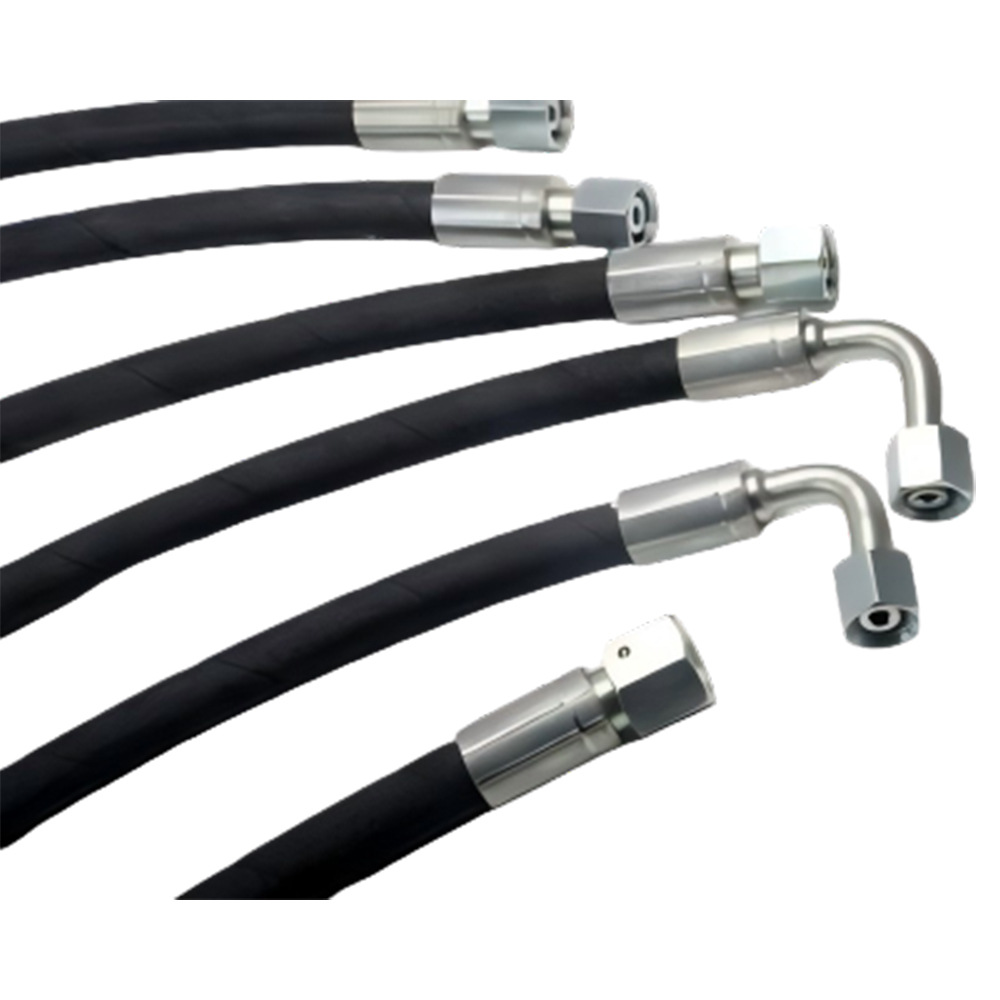

The oil hoses adopts the well-known imported brand - Manuli from Italy, which effectively reduces the occurrence of explosive pipe oil leakage.

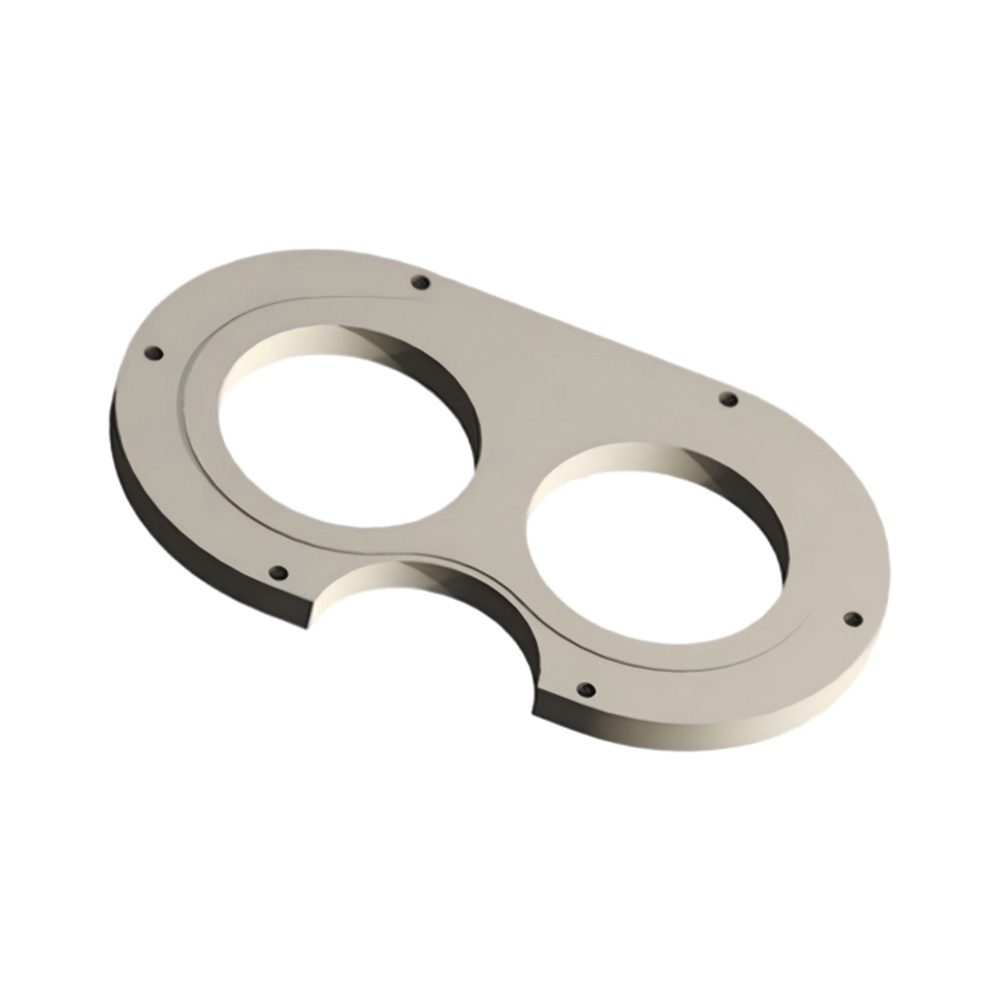

The wear-resistant parts made of high wear-resistant alloy material extend the service life of vulnerable parts.

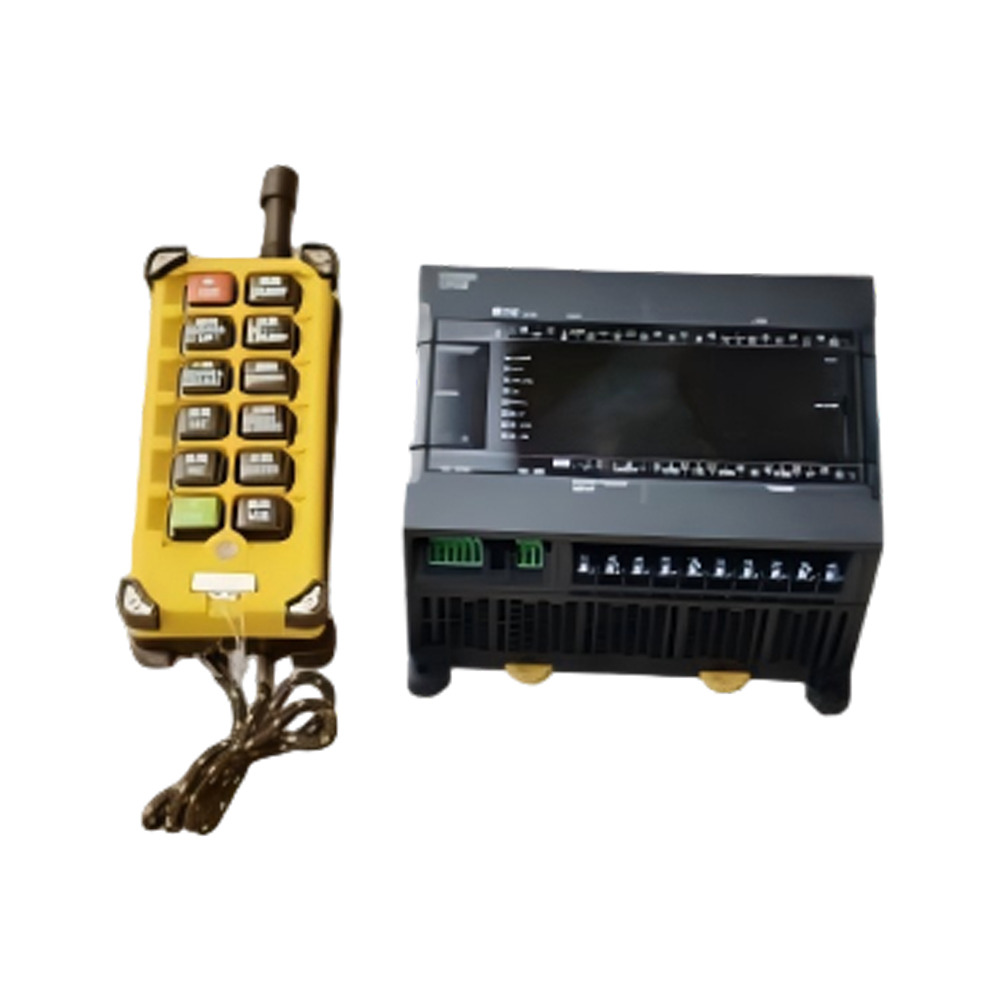

The electronic control system utilizes an OMRON PLC, ensuring stable and reliable control. It comes standard with a wireless remote control, providing flexible and convenient operation.

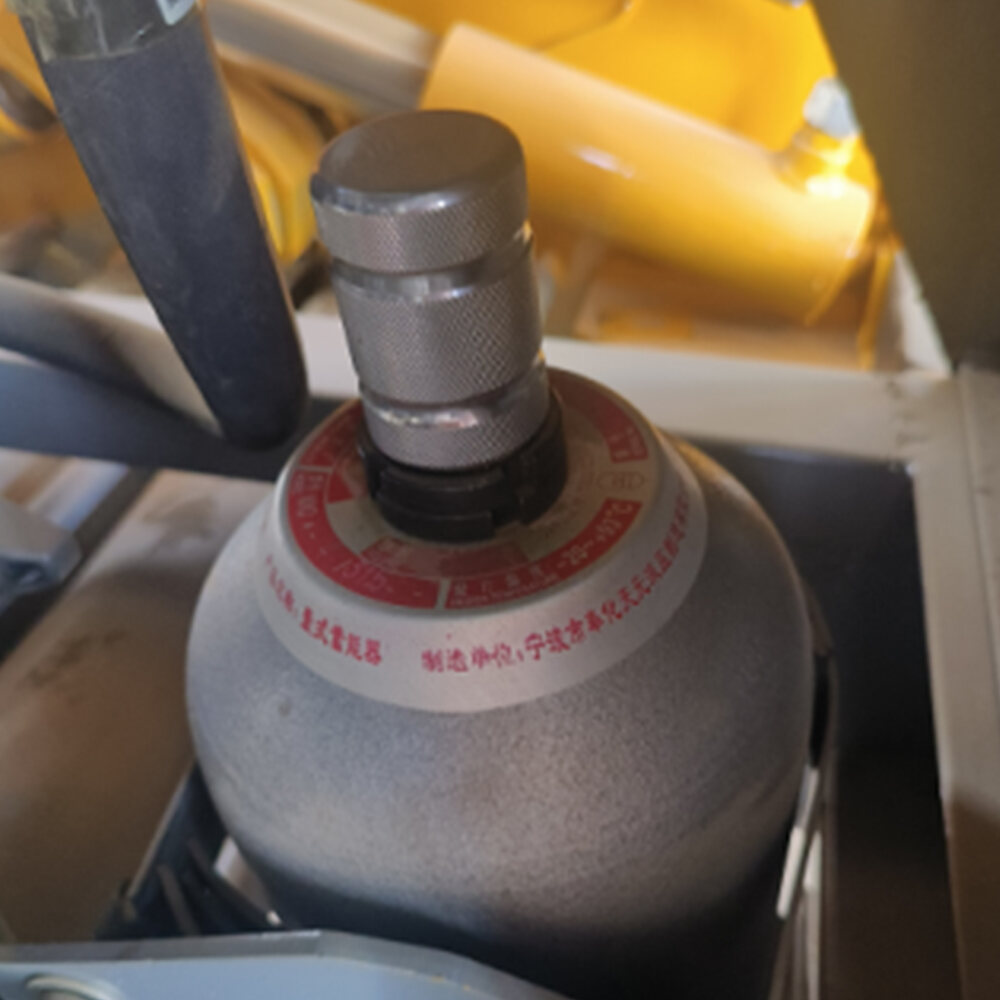

Equipped with an accumulator, and the S-tube is easier to return to its position under poor concrete working conditions, reducing the occurrence of pump blockages.

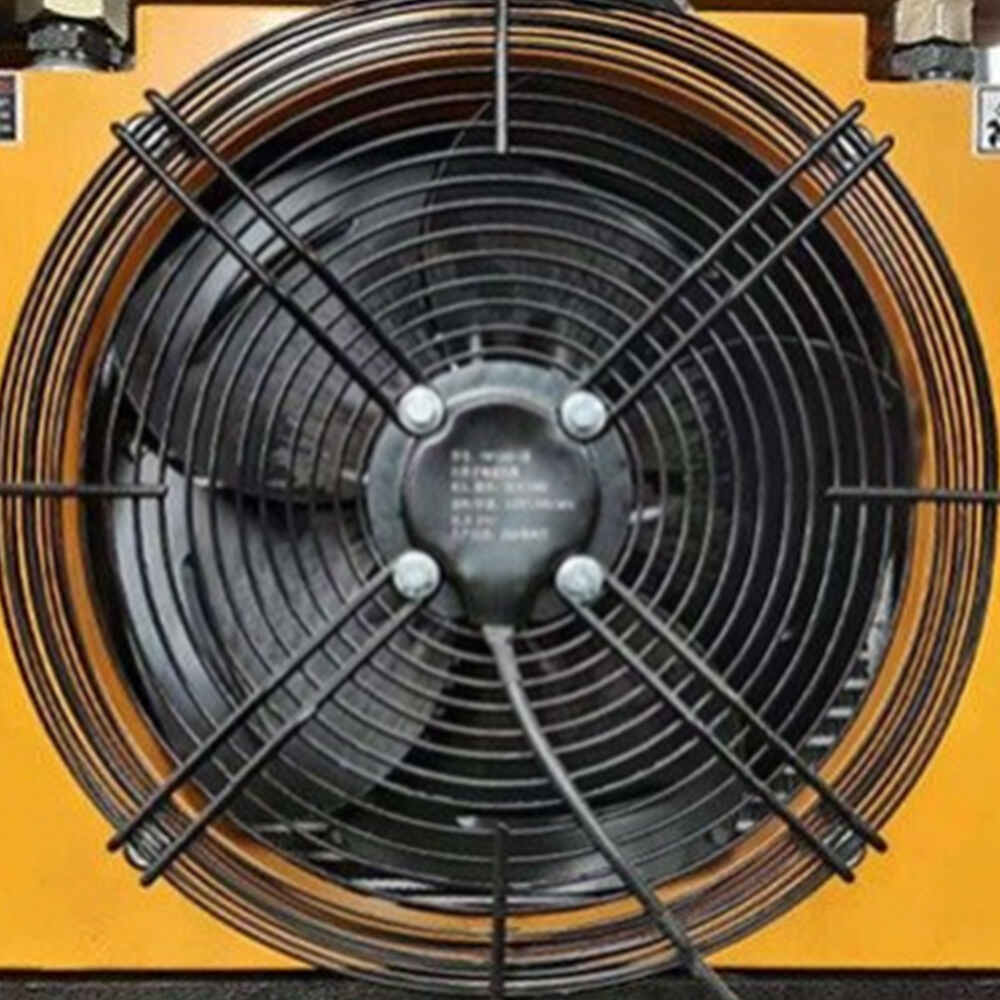

The suction type air cooling system has a more effective cooling effect than traditional air fans, reducing oil temperature more effectively.

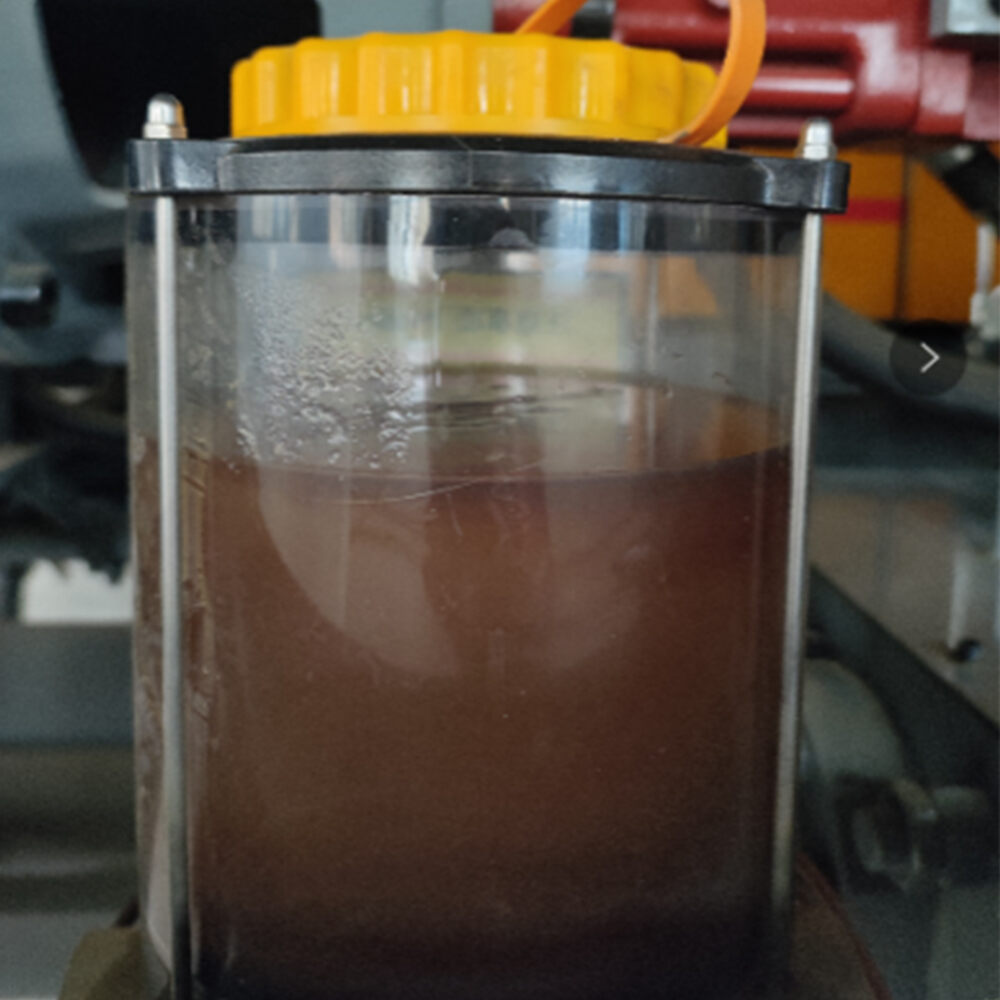

Adopting a well-known domestic brand's automatic centralized lubrication oil pump, the oil injection is smoother and the lubrication effect is guaranteed.
Technical Specifications of Concrete Mixer Pumps
The following are the standard specifications and parameters of our concrete mixer pump. We also provide customized services according to the specific needs of customers (such as adjusting the mixing capacity, pumping height, etc.).
Diesel Powered Concrete Mixer Pump Technical Specifications:
Electric Powered Concrete Mixer Pump Technical Specifications:
How Much Does a Concrete Mixer Pump Cost?
The price of XINGHUOTEC concrete mixer pump is determined according to the model, power type,configuration, customization requirements and other factors, and the specific price will be provided after confirming the customer's needs. However, we can provide you with a price range ($18,000 to $40,000) for concrete mixer pump with drum mixer for your reference.
The main factors affecting the price are as follows:
● Model & Capacity: The larger the mixing and pumping capacity, the higher the price. For example, the price of JBS40-10-82R (40m³/h) is higher than that of JBS30-10-52R (30m³/h), because the larger model requires more materials and higher-performance core components.
● Power Type: Under the same model, the price of the diesel power type is slightly higher than that of the electric power type, because the diesel engine has higher cost and stronger mobility.
● Core Components Brand: The price of equipment equipped with well-known brand core components (such as hydraulic pump, motor, diesel engine) is higher, but the performance is more stable and the service life is longer.
● Customization Requirements: If the customer needs to customize parameters (such as increasing pumping height, changing chassis type, adding intelligent functions), the price will be adjusted according to the customization difficulty and cost.
● Order Quantity: For bulk orders (more than 3 units), we will provide preferential prices and better after-sales service.
● After sales service and warranty: High quality after-sales service, such as installation support, training, maintenance, and warranty coverage, can also affect prices. The initial price is usually higher, but it can provide peace of mind and save long-term costs.
● Logistics transportation: Transportation costs can also affect overall prices. If the equipment is transported internationally or over long distances, logistics costs (including packaging, shipping, and insurance) will be added to the base price.
Note: For detailed price quotes and preferential policies, please contact our sales team, and we will provide you with a professional and personalized quotation plan according to your specific needs.

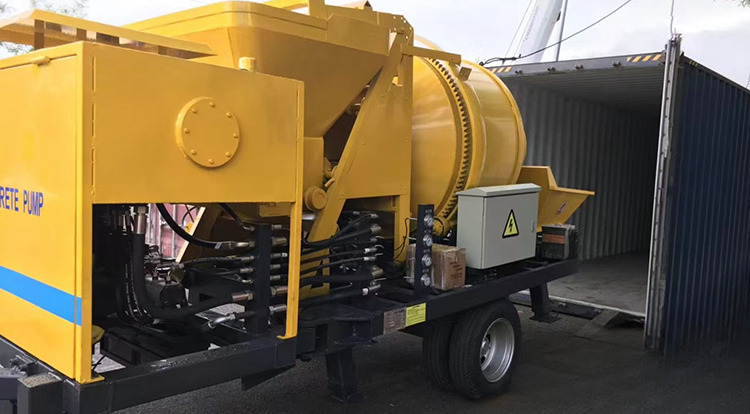

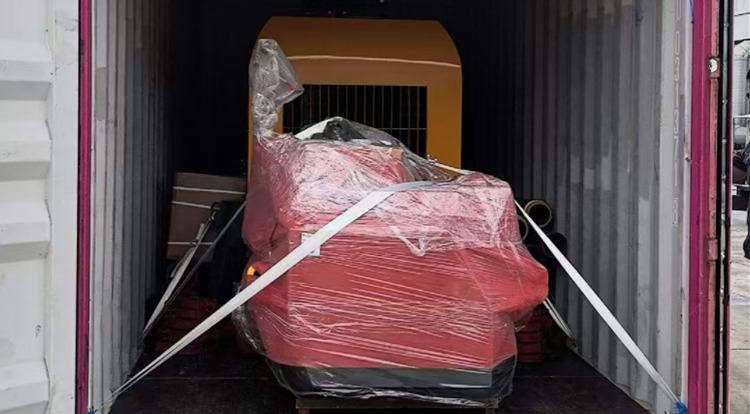

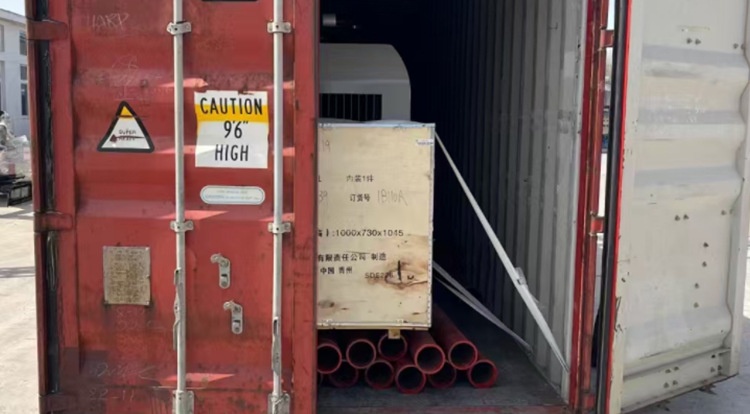

Packing & Shipping of Concrete Mixer Pumps
We adopt professional packaging and shipping methods to ensure that the equipment is not damaged during transportation, and provide door-to-door service according to the customer's needs.

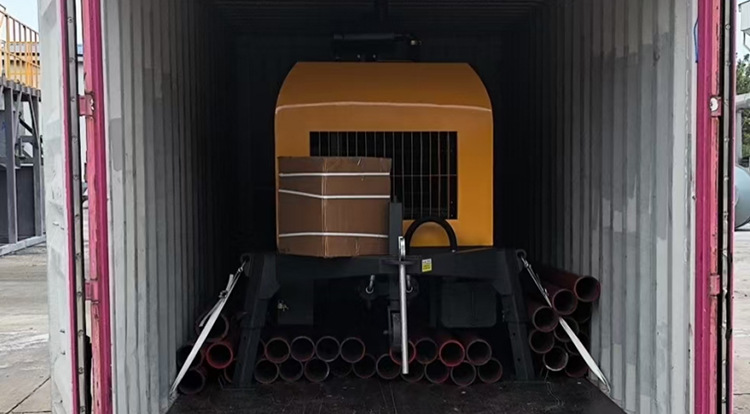

● It is generally recommended to use 40HQ containers for international long-distance transportation of the entire machine to prevent rust and accidental damage caused by rainwater and moisture during transportation.
● The chassis is secured with steel wire ropes and wooden blocks to prevent the equipment from swaying and shifting during transportation.
● Vulnerable parts are separately packaged in foam and cardboard boxes to avoid collision damage.
Customer Cases of XINGHUOTEC Concrete Mixer Pumps
Our concrete mixer pump has been exported to more than 50 countries and regions, including Southeast Asia, Africa, South America, the Middle East, etc., and has been highly recognized by customers for its stable performance and high efficiency. The following are some typical customer cases:
JBS30 Diesel Powered Concrete Mixer Pump in Niger
JBS30 Electric Powered Concrete Mixer Pump in Turkmenistan

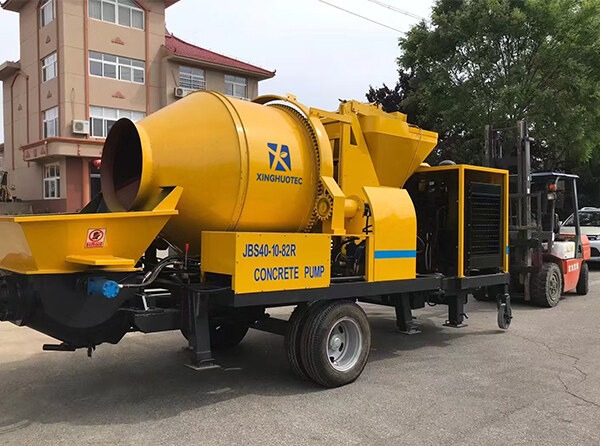

JBS40 Diesel Powered Concrete Mixer Pump in Senegal
LZJBS40-750 Diesel Powered Concrete Mixer Pump in Mexico
FAQs About Concrete Mixer Pumps
We have sorted out the common questions of customers, hoping to help you better understand our concrete mixer pump:
Q: What is the service life of the concrete mixer pump?
A: Under normal use and regular maintenance, the service life of the equipment is more than 5 years. The core components (hydraulic system, motor, diesel engine) have a service life of more than 3 years, and we provide lifelong maintenance services.
Q: Do you provide technical training and after-sales service?
A:Yes. We provide free technical training for customers' operators, including equipment operation, maintenance and fault handling. We also provide 1-year free warranty, and after the warranty period, we provide cost-effective maintenance services and spare parts supply.
Q: Can the equipment be customized according to our needs?
A: Yes. We can customize the mixing capacity, pumping height, pumping distance, power type, chassis type and other parameters according to the customer's specific construction needs, to meet the personalized needs of different projects.
Q: What is the delivery time of the equipment?
A: The delivery time of standard models is 7-15 working days; the delivery time of customized models is 20-30 working days, depending on the customization difficulty. After delivery, we will track the transportation progress in real time and inform the customer of the arrival time.
Q: What kind of raw materials can the concrete mixer pump use?
A: The equipment can use various common concrete raw materials, including cement, sand, gravel (particle size ≤ 40mm), water and admixtures. It can mix various types of concrete, such as C15-C60 ordinary concrete, lightweight aggregate concrete, etc.
Q: How to maintain the concrete mixer pump daily?
A: Daily maintenance mainly includes: cleaning the mixing drum and conveying pipe after use to avoid concrete caking; checking the oil level of the hydraulic system and adding oil in time; checking the tightness of the belt and bolts; cleaning the air filter of the diesel engine (diesel model); checking the electrical system (electric model) to ensure safe operation.
If you have other questions, please feel free to contact our sales team, and we will reply to you within 24 hours.
Q: What is the difference between concrete mixer pump and concrete trailer pump?
A: Compared with the traditional trailer pump (which only has pumping function and needs to be matched with an independent mixer), concrete mixer pump has obvious advantages in construction efficiency, cost and operation convenience:
Contact Us for Customized Solution
If you have any requirements for concrete mixer pump, such as customized parameters, model selection or price consultation, please contact us immediately. We will provide you with the most suitable solution and competitive price!
