Optional Platform: 3015 / 4020 / 6015 / 6020 /6025 / 8025
Laser power: 1000W-30000W (optional)
X/Y Max Speed: 90m/min
Position Accuracy: ±0.03mm/m
Product Overview

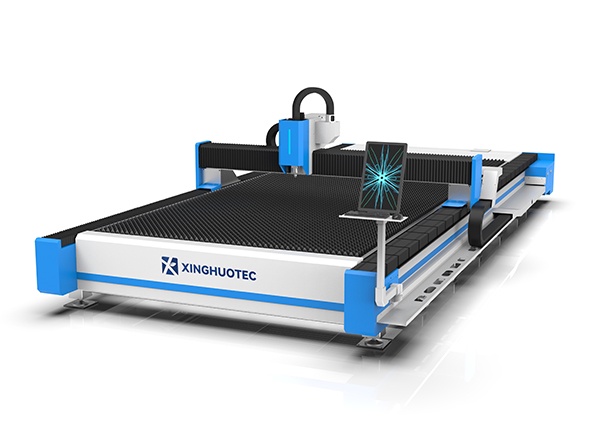

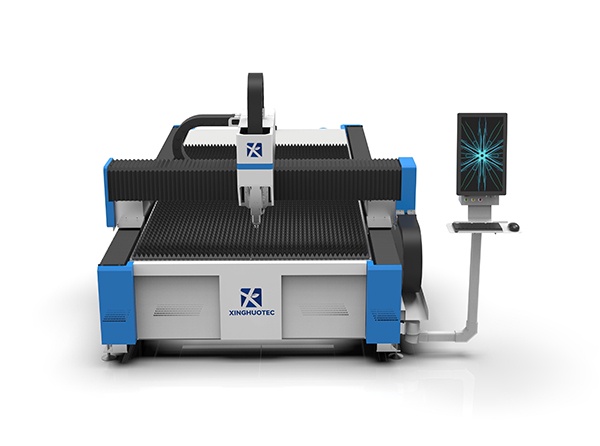

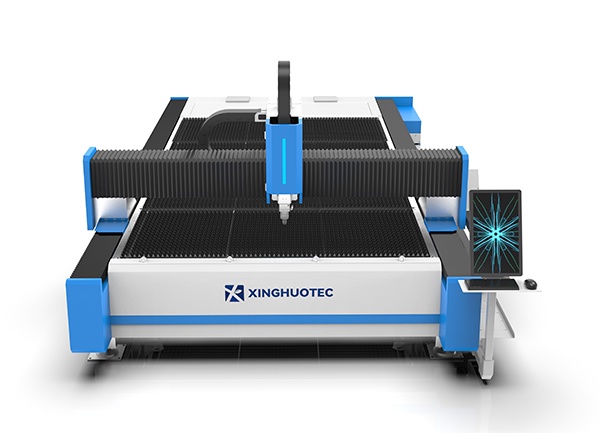

The Single Platform Laser Cutting Machine is a cost-effective, compact intelligent cutting equipment designed with a single working platform. It integrates advanced fiber laser technology, CNC control system and high-rigidity mechanical structure, focusing on solving the cutting needs of small and medium-sized enterprises for metal sheets. With the advantages of simple structure, stable operation, easy maintenance and high precision, it is widely used in metal fabrication, electrical cabinets, HVAC ducts, machinery parts, advertising signs and general sheet metal production, providing efficient and reliable cutting solutions for various industries.
Application Scenarios
The Single Platform Laser Cutting Machine is widely used in various industrial fields, mainly suitable for cutting metal materials such as carbon steel, stainless steel, aluminum alloy and copper. Specific application scenarios include:
● Metal Fabrication Industry: Cutting of sheet metal components, precision parts and hardware accessories;
● Electrical Cabinet Industry: Cutting of cabinet panels, door panels and internal brackets;
● Advertising Industry: Production of metal advertising signs, characters and decorative parts;
● Construction Machinery Industry: Cutting of small and medium-sized mechanical parts;
● Home Appliance Industry: Cutting of sheet metal parts for refrigerators, washing machines and air conditioners;
● Other Fields: HVAC ducts, elevator parts, auto parts processing, medical equipment, food machinery,etc.

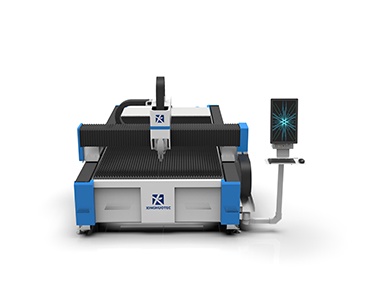

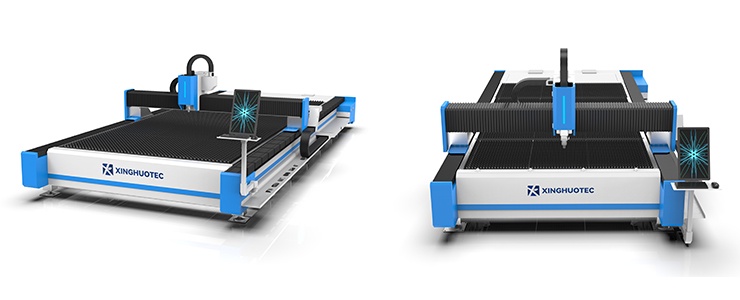

Different Types of Single Platform Laser Cutting Machine
● Platform specifications: Two styling options, with 6 effective cutting table specifications to choose from.
● Specifications of the laser generator: 1000-30000W, and higher power can be customized.
How does the Single Platform Laser Cutting Machine work?
Product features and advantages

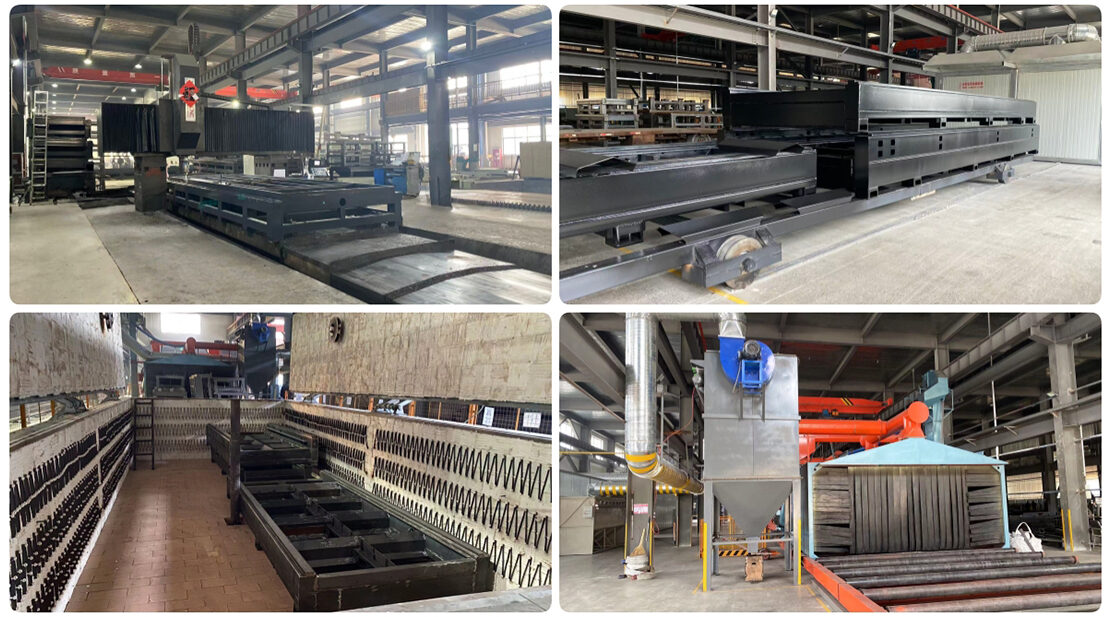

● High-Rigidity Mechanical Structure: The machine bed is made of high-strength steel through integrated welding, and undergoes high-temperature annealing stress relief treatment to eliminate internal stress, ensuring excellent rigidity and vibration resistance. The gantry adopts cast aluminum structure or extruded aluminum beam, which is lightweight and high in strength, minimizing deformation during high-speed cutting and ensuring long-term precision stability. The single platform open design allows loading and unloading from three directions, with small machine volume and low space occupation, suitable for small and medium-sized workshops with limited space.

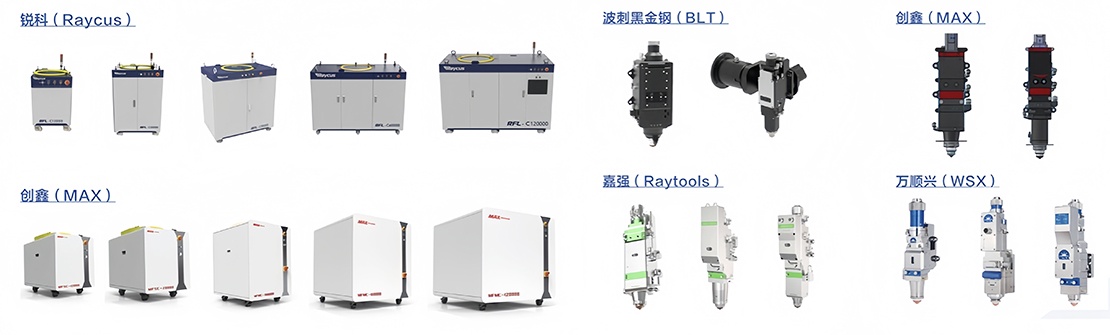

● High Precision & Efficient Cutting: Equipped with high-performance world-renowned fiber laser generators (optional power: 1000W-30000W), cutting systems and precision servo drive system, the positioning accuracy reaches ±0.03mm/m, and the repeat positioning accuracy is ±0.02mm, ensuring clean, burr-free and no thermal deformation cutting effect. The maximum linkage speed is up to 90m/min, and the acceleration is 1G, which is 3-5 times higher than traditional cutting methods. The auto-focus cutting head can automatically adjust the cutting distance according to the material thickness, adapting to different cutting needs of thin and thick plates.

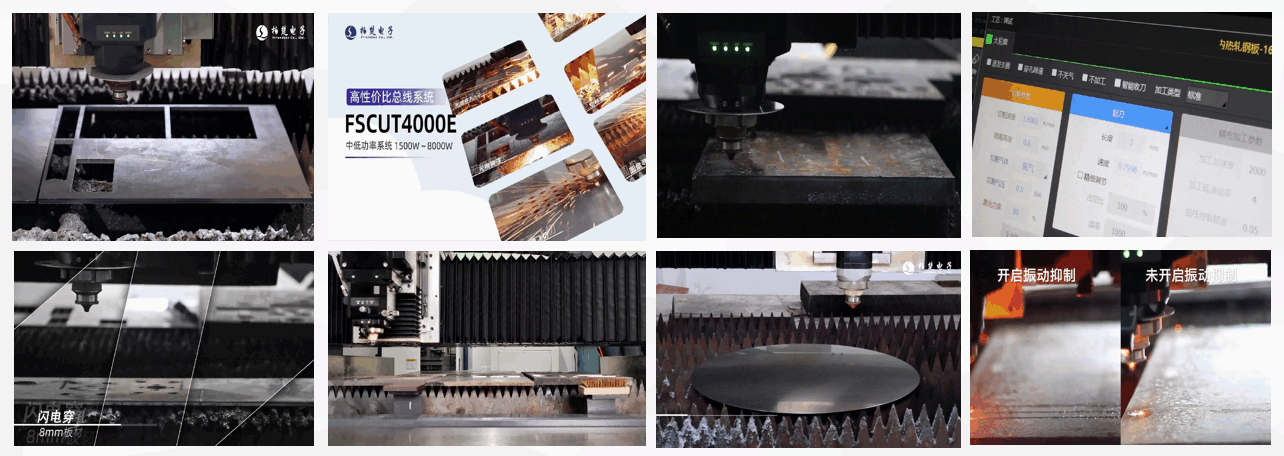

● Intelligent & User-Friendly Operation: Adopting FSCUT or other professional CNC control systems, it supports offline programming, automatic nesting and path optimization, reducing programming difficulty and improving material utilization. The touch screen operation interface is simple and intuitive, supporting Chinese and English switching, and built-in standard cutting parameter database. Operators can directly call parameters according to materials and processes, and no professional programming experience is required. It also supports remote monitoring and diagnosis, facilitating equipment maintenance and fault troubleshooting.
● Energy-Saving & Stable Performance: The fiber laser source has high electro-optical conversion efficiency (up to 40%), low power consumption and low operating cost. The key components have a service life of up to 100,000 hours, and the equipment can run continuously for 24 hours stably. Equipped with a high-power water cooling system, it ensures effective heat dissipation and avoids equipment failure caused by overheating. The dust-proof and anti-collision design of the cutting head extends the service life and reduces maintenance costs.
Detailed Technical Parameters

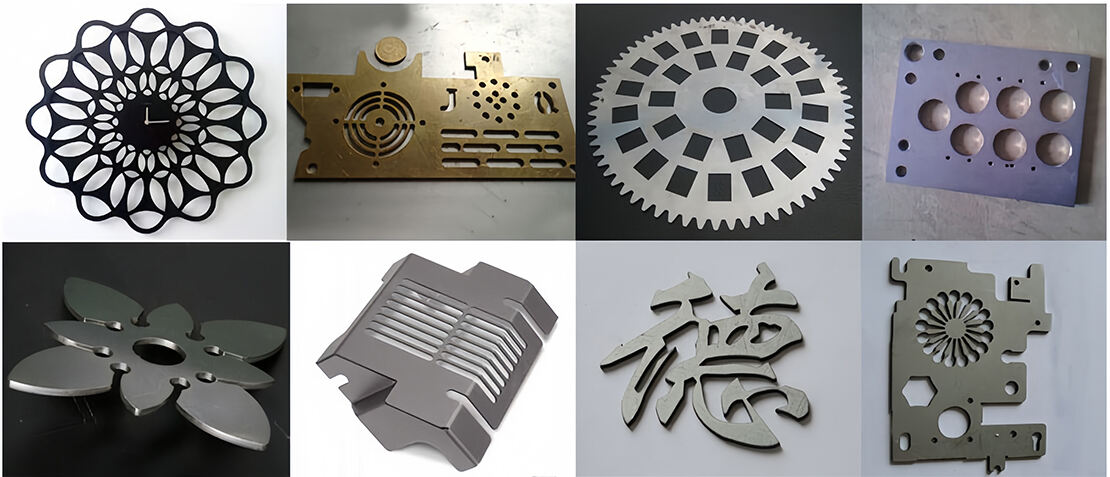

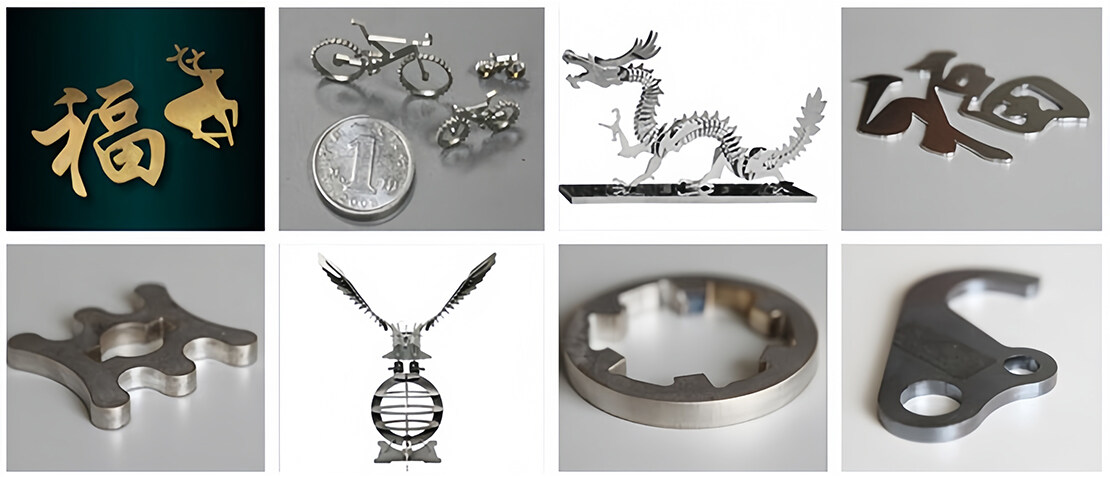

Customer Sample Display
After-Sales Service & Support
We attach great importance to every customer’s experience and provide a comprehensive, efficient and professional after-sales service and technical support system to ensure the continuous and stable operation of your equipment and solve your worries in the production process.
● On-Site Installation & Commissioning: We provide on-site installation and commissioning services. Our professional technical team will arrive at your factory to complete equipment installation, debugging and test run, ensuring that the equipment meets the design standards and your production needs before formal operation.
● Professional Technical Training: Customized one-on-one technical training is provided, covering equipment operation, programming skills, daily maintenance, fault diagnosis and handling, as well as parameter adjustment for different materials and processes. We ensure that your operators can master the equipment use skills proficiently and operate independently.
● Warranty Service: We provide a 1-year whole-machine warranty (including laser source, CNC system, servo drive, etc.). During the warranty period, we will provide free maintenance and replacement of faulty components (excluding man-made damage and consumables).
● Emergency Technical Support: Our 7×24-hour online technical support team is always on call. You can contact us through hotline, email or online chat, and we will respond to your questions and faults in the shortest time. For complex faults that cannot be solved remotely, we will arrange professional engineers to go to the site for maintenance in a timely manner.
● Value-Added Services: We provide long-term value-added services, including equipment upgrading, consumables supply, remote monitoring and diagnosis, and customized process optimization. We will regularly update the cutting parameter database and software system to help you improve production efficiency and reduce operating costs.
Pre-sales Service
One-on-one consultative service
Assist customers in equipmentselection
Customized Solutions
Transportation plan consultation
In-sales Service
Production supervision
Communicate project progress in atimely manner
Factory debugging and testing
After-sales Service
Transport Service
Installation Service
TRAINING
Quality Assurance Service
Spare Parts Service
FAQs
Q: What materials can the Single Platform Laser Cutting Machine process?
A: It can process various metal materials, including carbon steel, stainless steel, aluminum alloy, copper, titanium alloy, etc., with a cutting thickness range of 0.5-50mm (adjustable according to laser power).
Q: Is the equipment suitable for small workshops?
A: Yes, the single platform open design has small volume and small floor area, which is very suitable for small and medium-sized workshops with limited space, and can be moved flexibly with a forklift.
Q: Do I need professional programming skills to operate the equipment?
A: No, the equipment is equipped with an intelligent control system and a built-in parameter database. Operators can directly call parameters according to materials and processes, and can master the operation skills after simple training.
Q: What is the service life of the equipment?
A: Under normal use and regular maintenance, the service life of the equipment can reach 8-10 years, and the service life of the core components (laser source, servo system) can reach 100,000 hours.
Q: Can the processing format and laser power be customized?
A: Yes, we support full customization of processing format (3000×1500mm-8000×2500mm) and laser power (1000W-30000W) according to customer production needs.
