Theoretical output capability: 30–90 m³/h
Max. Theo. vertical conveying distance: 120-350m
Max. Theo. horizontal conveying distance: 500-1200m

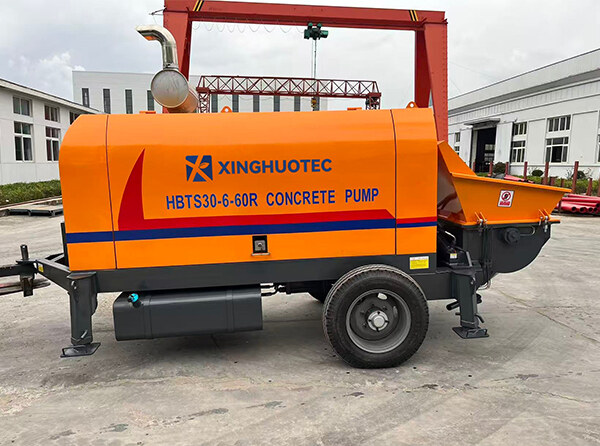

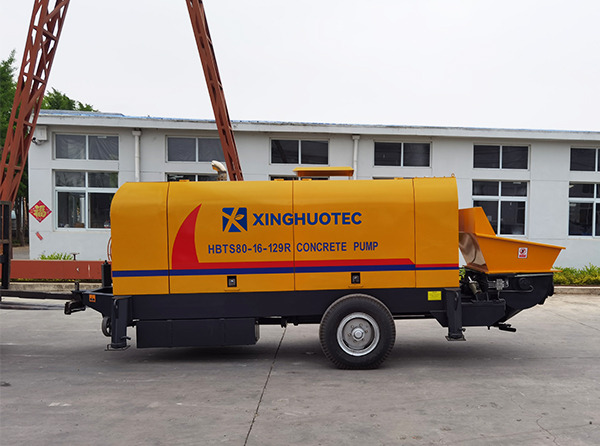

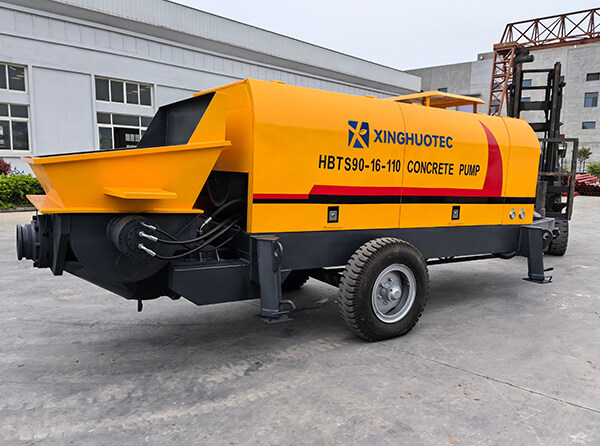

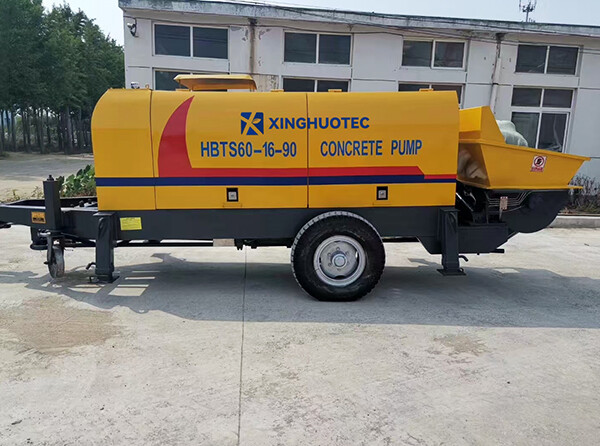

What is a Concrete Trailer Pump?
Our Concrete Trailer Pump is a mobile concrete conveying device that can be easily towed by a tractor to any construction site. Concrete trailer pumps stand out due to their portability and flexibility. They are equipped with advanced hydraulic systems and high-quality pump bodies, which can stably convey concrete to the designated position, solving the problem of difficult concrete transportation in high-rise buildings, long-distance construction and narrow construction sites. This makes it highly suitable for various applications in construction.

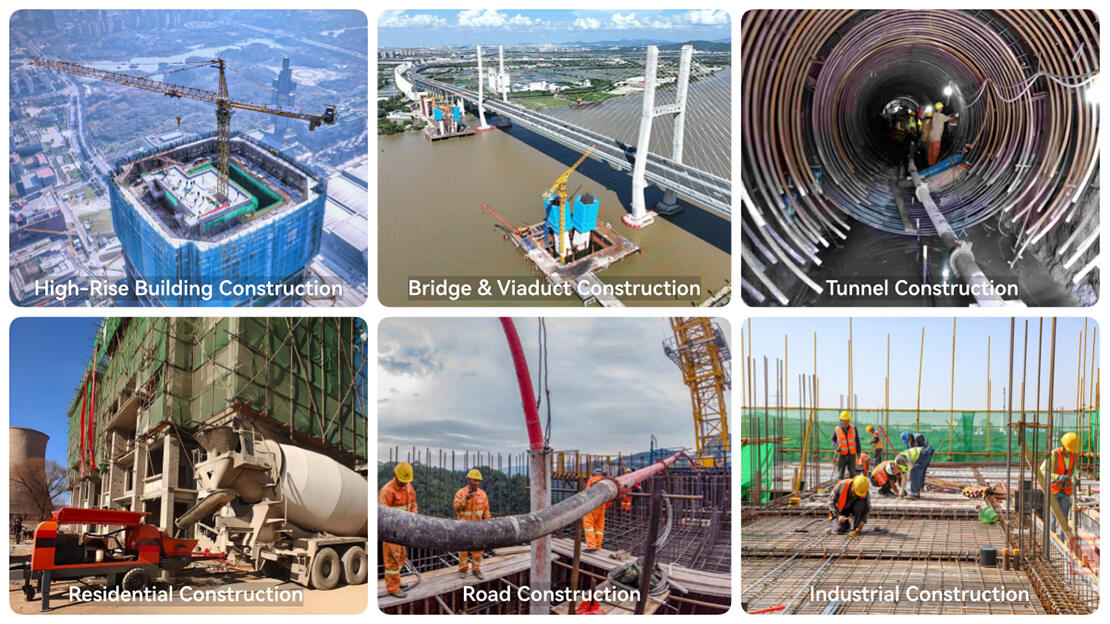

Where Can a Concrete Trailer Pump Be Used?
Our Concrete Trailer Pumps are widely used in various construction scenarios, with strong adaptability to different working conditions. After understanding its basic overview, you can quickly match it with your construction needs through the following scenarios:
● High-Rise Building Construction: Stable conveying to high floors, solving the problem of difficult high-rise transportation.
● Bridge & Viaduct Construction: Long-distance conveying, suit for complex outdoor working environments.
● Road & Tunnel Construction: Suitable for narrow tunnels and remote road construction sites.
● Residential & Industrial Construction: Energy-saving and low-noise design suitable for indoor and urban construction.
Different Types of concrete trailer pump
Based on the power source and the characteristics of different application scenarios, our Concrete Trailer Pumps are divided into two types, which can be selected according to your actual construction needs.

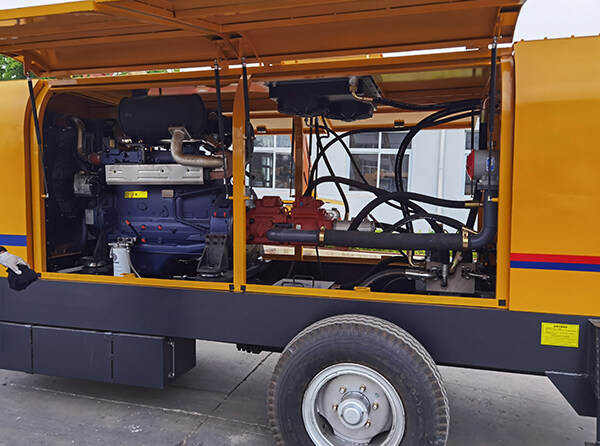

● Diesel Power Concrete Trailer Pump: Equipped with a high-power diesel engine, it delivers strong power and good adaptability, no need to rely on external power supply. It is suitable for outdoor construction sites, remote areas without stable power, and large-scale construction projects that require long-term continuous operation (such as road, bridge and high-rise building construction).

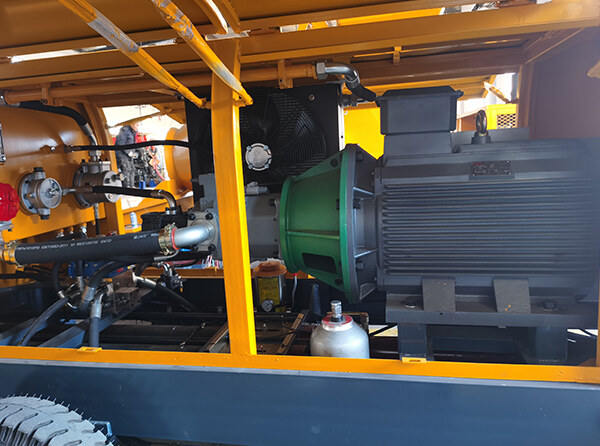

● Electric Power Concrete Trailer Pump: It adopts high-efficiency electric motor, energy efficiency, environmental friendliness, low noise and low emissions, in line with international green construction standards. It is suitable for indoor construction, industrial plants, urban construction sites with strict environmental requirements and stable power supply.

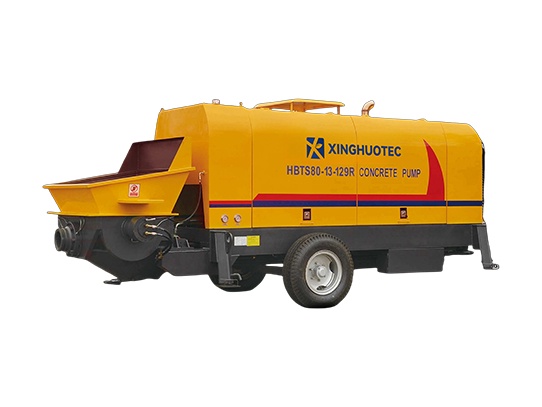

Diesel Power Concrete Trailer Pump

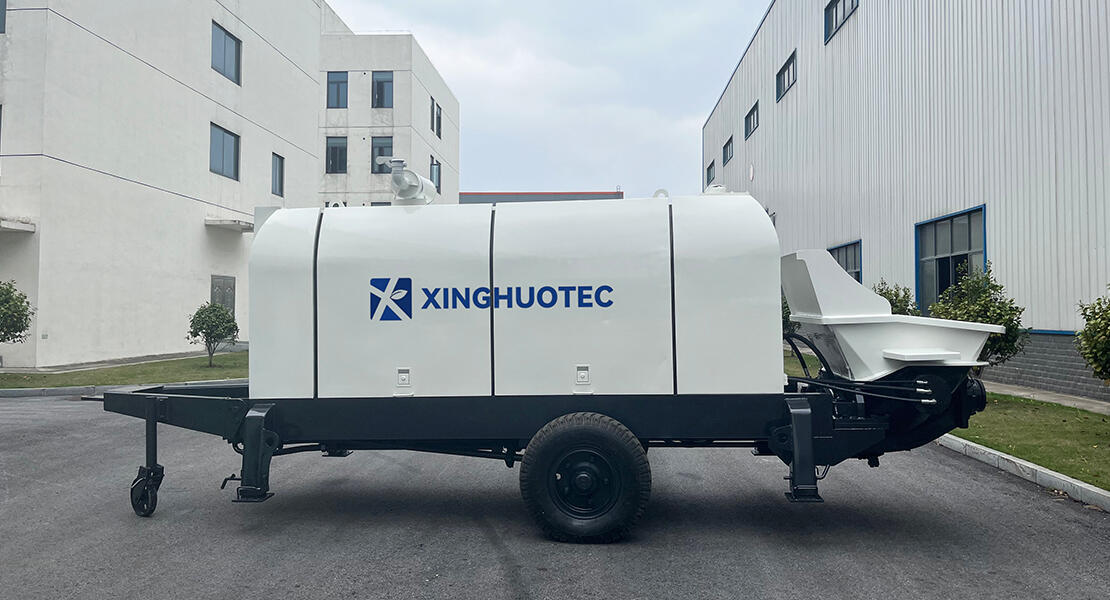

Electric Power Concrete Trailer Pump
According to the pumping capacity, they can be divided into 30pumps, 40pumps, 60pumps, 80pumps, 90pumps, etc. Their hourly pumping capacity ranges from 30 to 90 cubic meters. Diesel powered concrete trailer pumps include models such as HBT30C, HBT40C, HBT50C, HBT60C, HBT80C, and HBT90C. Electric concrete trailer pumps include models such as HBT30D, HBT40D, HBT50D, HBT60D, HBT80D, and HBT90D.
According to the diameter of pumped aggregate, the machines can be divided into fine stone pump and large aggregate pump. The fine stone pump can pump the maximum particle size of aggregate ≤30mm. The large aggregate pump can pump the maximum aggregate particle size ≤ 40mm.
Core Features of XINGHUOTEC Concrete Trailer Pump
● High Efficiency & Stable Conveying: Equipped with a high-power diesel engine (or electric motor) and precision hydraulic system, the delivers concrete at a rate of 30-90 m³/h, with stable pressure and no pipe blocking. It can continuously work for a long time to meet the needs of large-volume concrete construction.
● Easy Operation & Flexible Movement: User-friendly control panel, simple operation, no professional technical personnel required; compact structure, lightweight, easy to tow and transfer, suitable for narrow construction sites and remote areas with poor transport access.
● Durable & Long Service Life: The pump body, conveying pipe and key components are made of high-strength wear-resistant materials, which are corrosion-resistant and wear-resistant; strict quality inspection before leaving the factory ensures long-term stable operation, reducing maintenance costs and downtime.
● Energy-Saving &Environmental-Friendly: It adopts energy-saving hydraulic technology, low fuel consumption (or low power consumption for electric type), low noise and low emission, in line with international environmental standards.
Key Components Details of XINGHUOTEC Concrete Trailer Pumps
The selection and use of materials for key components, as well as quality control in all aspects of the production process, directly determine the performance and service life of concrete trailer pumps.
● Using well-known brand components: The power unit, hydraulic system, mixing system, pumping system, electronic control system, cooling and lubrication system of the concrete trailer pump are all adopt components from internationally renowned or domestically renowned professional manufacturers to ensure stable and reliable operation of the equipment.
● Implement systematic cleaning work: Thoroughly clean or perform compressed air high-pressure blowing on oil tanks, water tanks, hydraulic pipelines, valve blocks, etc., remove all impurities, ensure clean circulation of oil and water circuits, reduce wear and tear, cuts system failures and extend the service life of equipment.
● Strict Quality Control: Prior to shipment, we conduct high and low voltage tests on the product to ensure that the mechanical components function properly and operate stably. We will also test its performance under actual loaded working conditions.

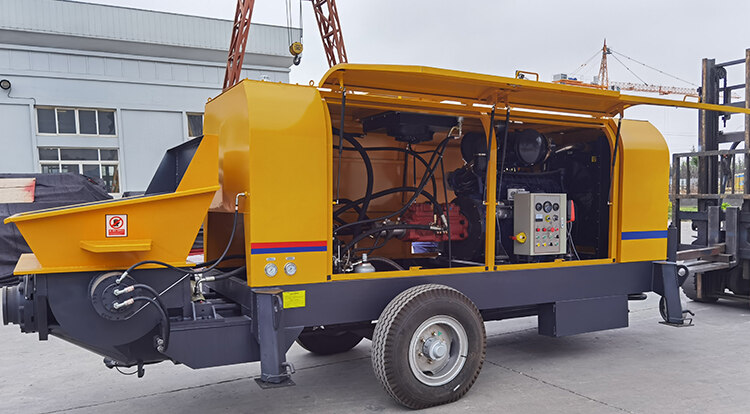

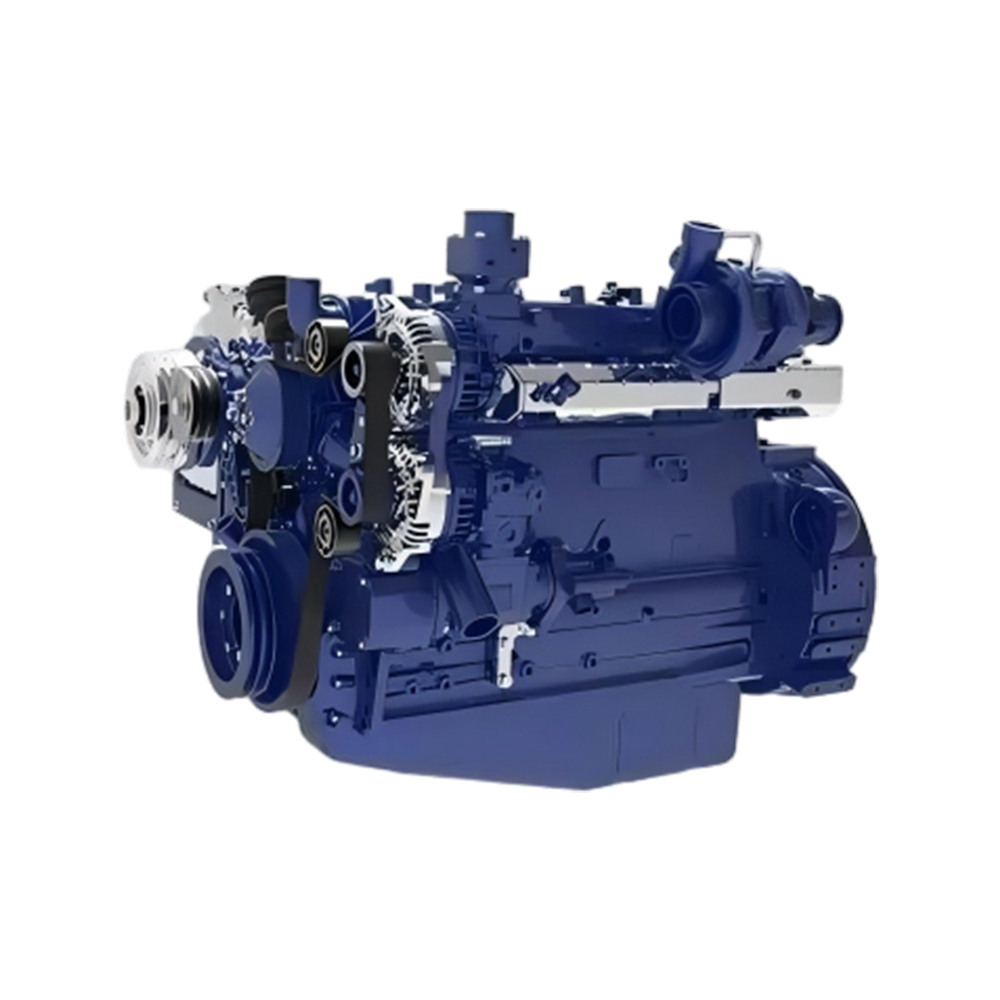

Adopting domestically renowned brands of diesel engines, such as Weichai and Yuchai, Dongfeng Cummins engines are also available as alternatives.

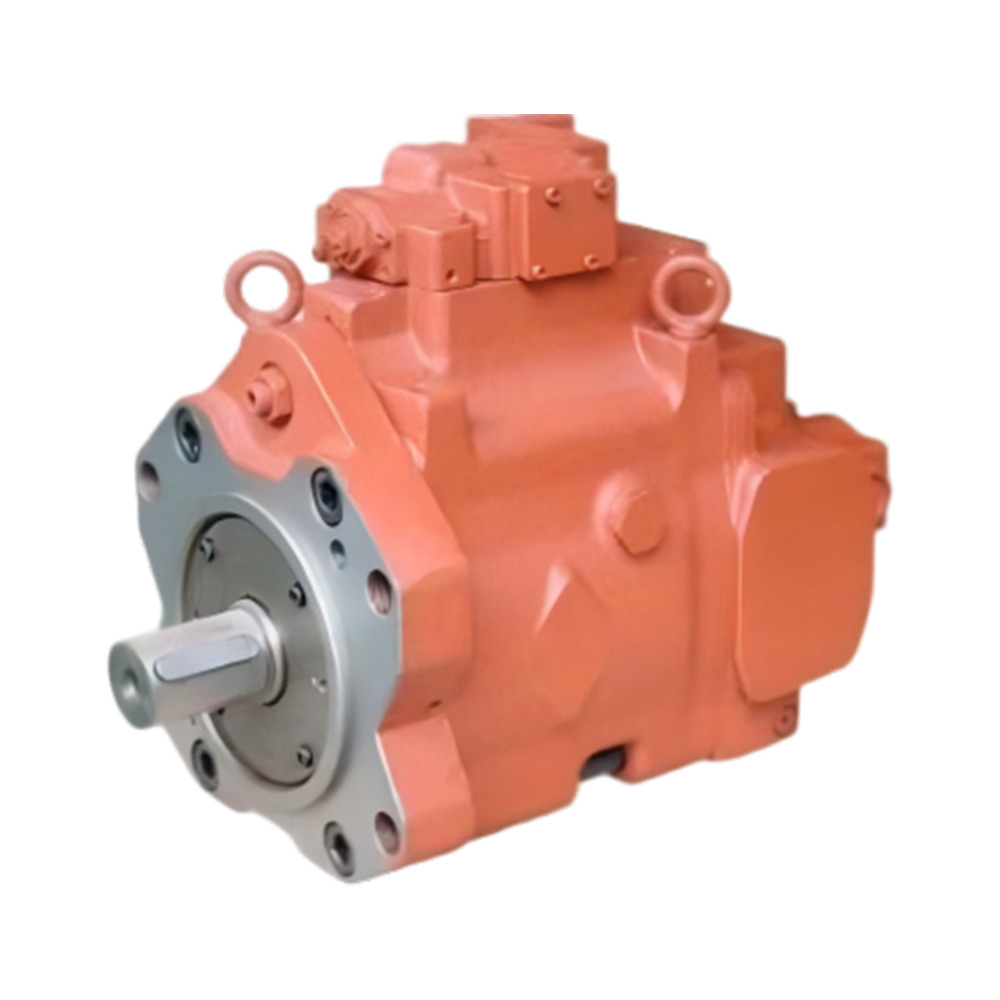

The hydraulic main oil pump adopts Kawasaki series products with mature technology, stable displacement, and low failure rates.

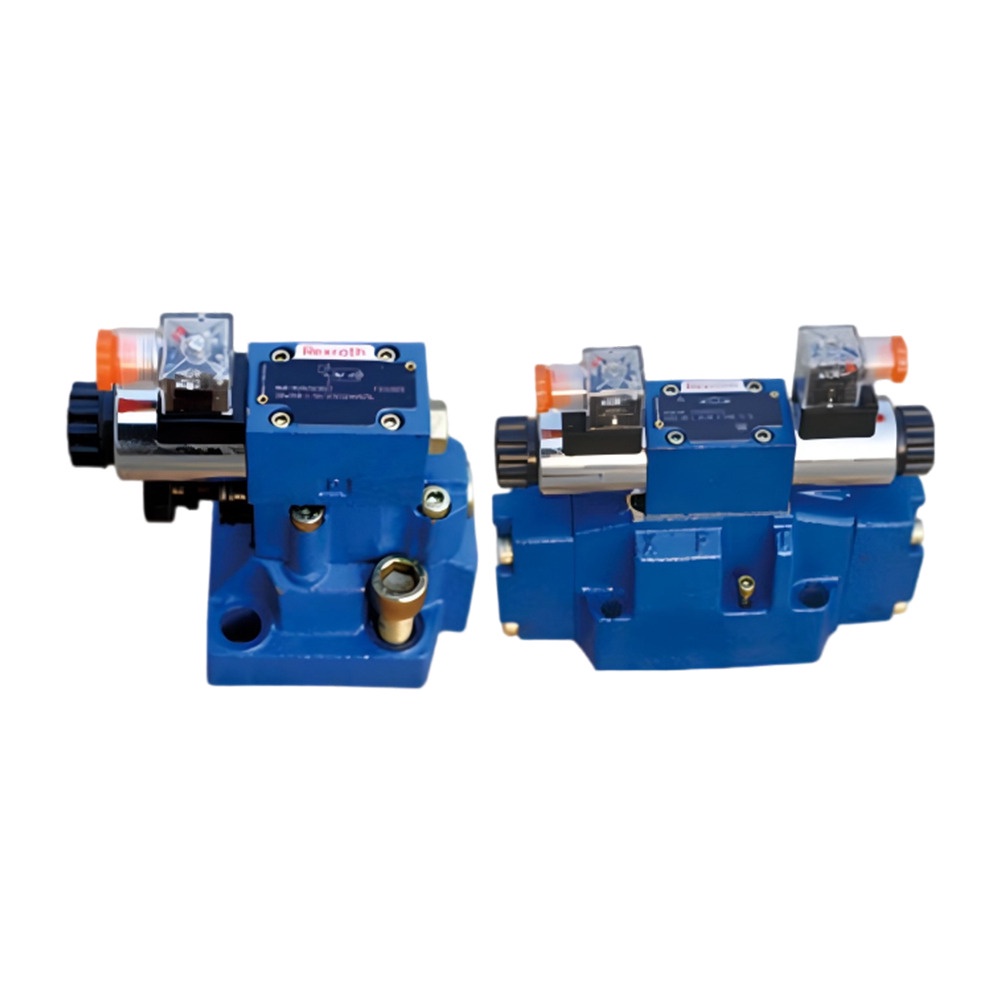

The solenoid valve group adopts internationally renowned brands such as Eaton and Rexroth, with stable performance and reliable technology.

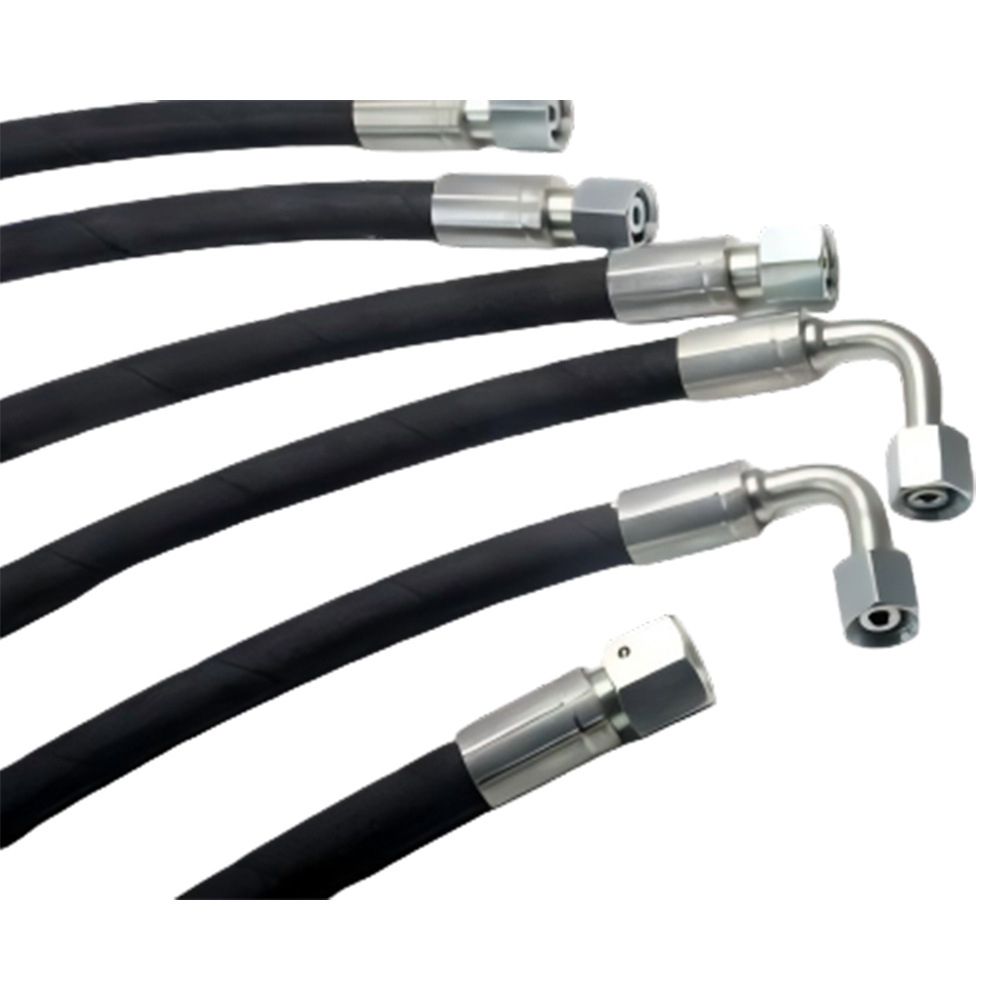

The oil hoses adopt the well-known imported brand - Manuli from Italy, which effectively reduces pipe bursts and oil leakage.

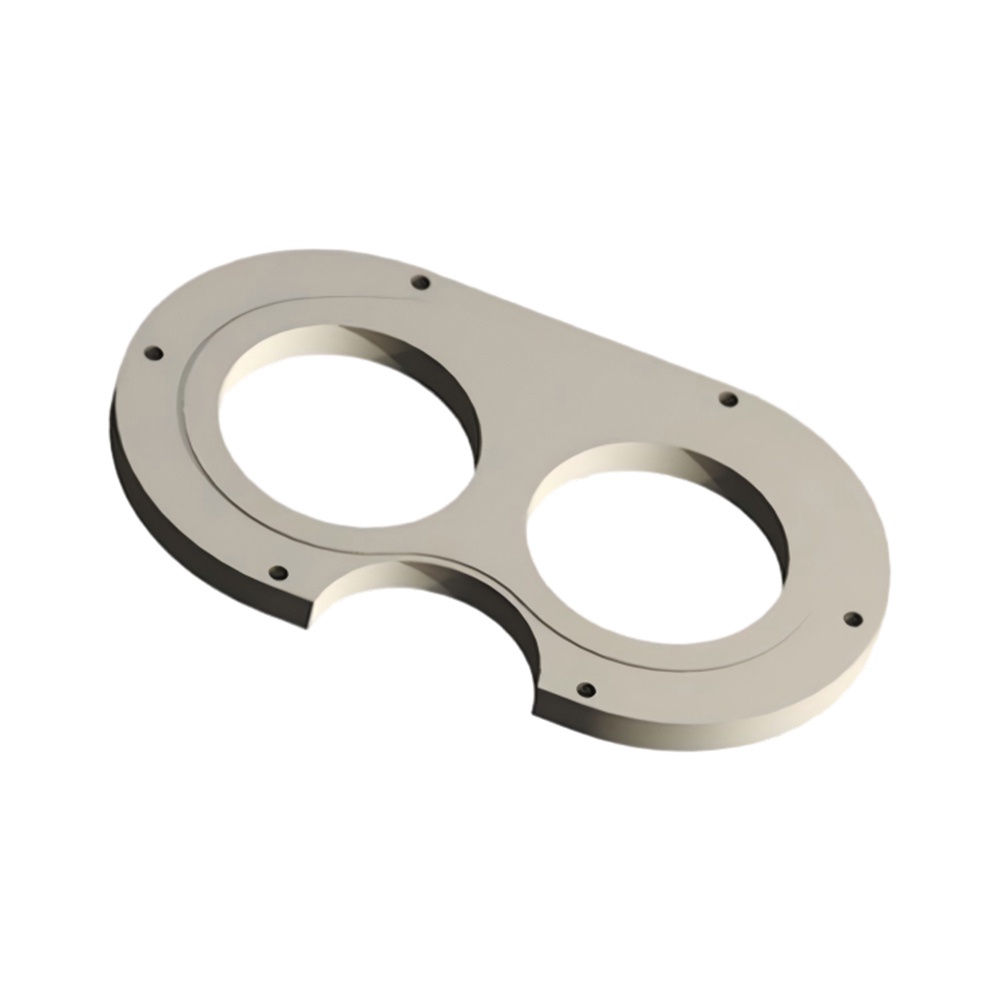

The wear-resistant parts are fabricated from high-abrasion alloy materials to extend the service life of vulnerable parts.

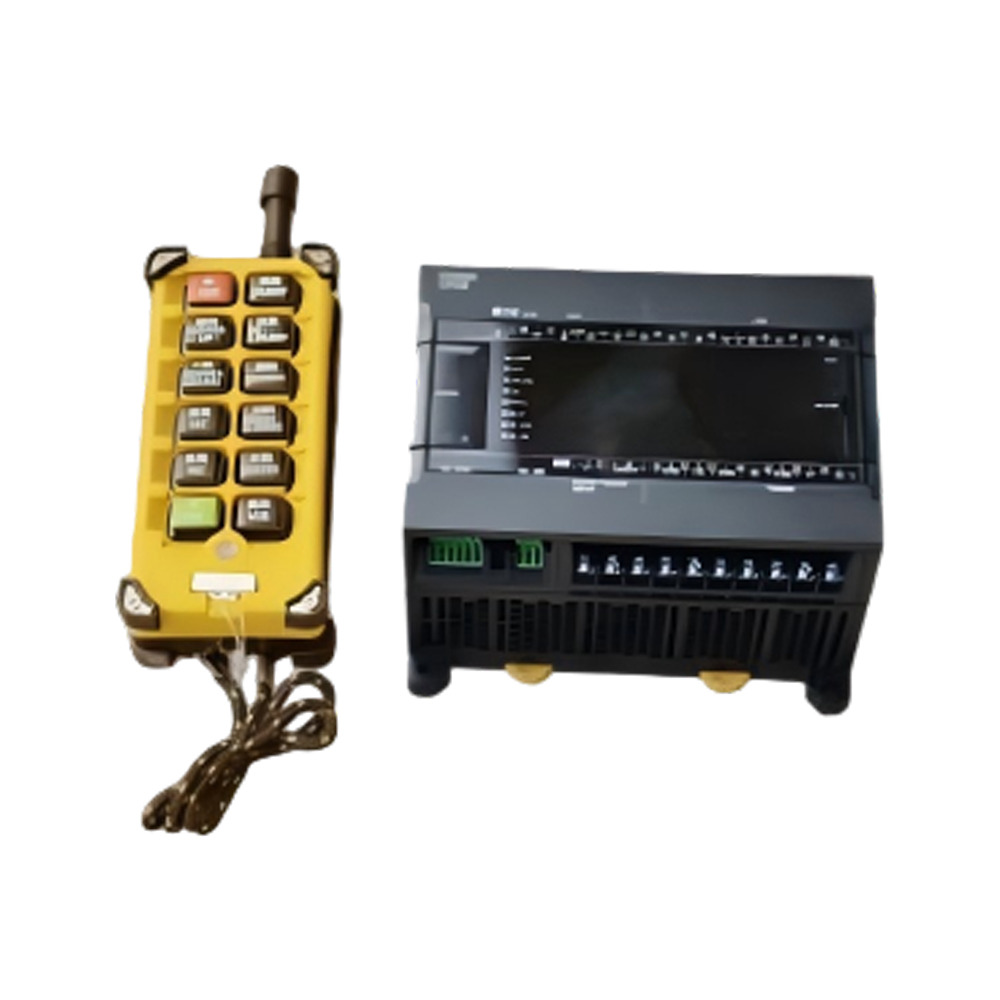

The electronic control system utilizes an OMRON PLC, ensuring stable and reliable control. It comes standard with a wireless remote control, providing flexible and convenient operation.

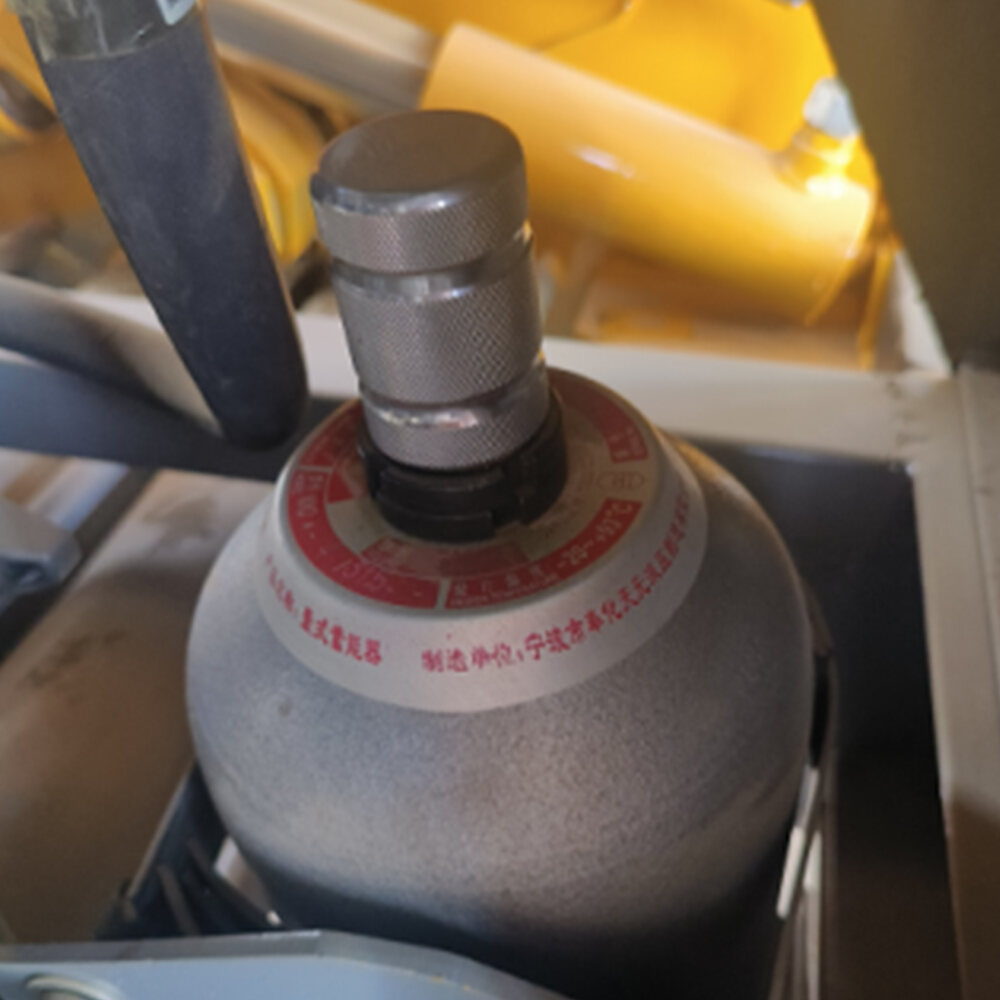

Equipped with an accumulator, and the S-tube is easier to return to its position under poor concrete working conditions, reducing the occurrence of pump blockages.

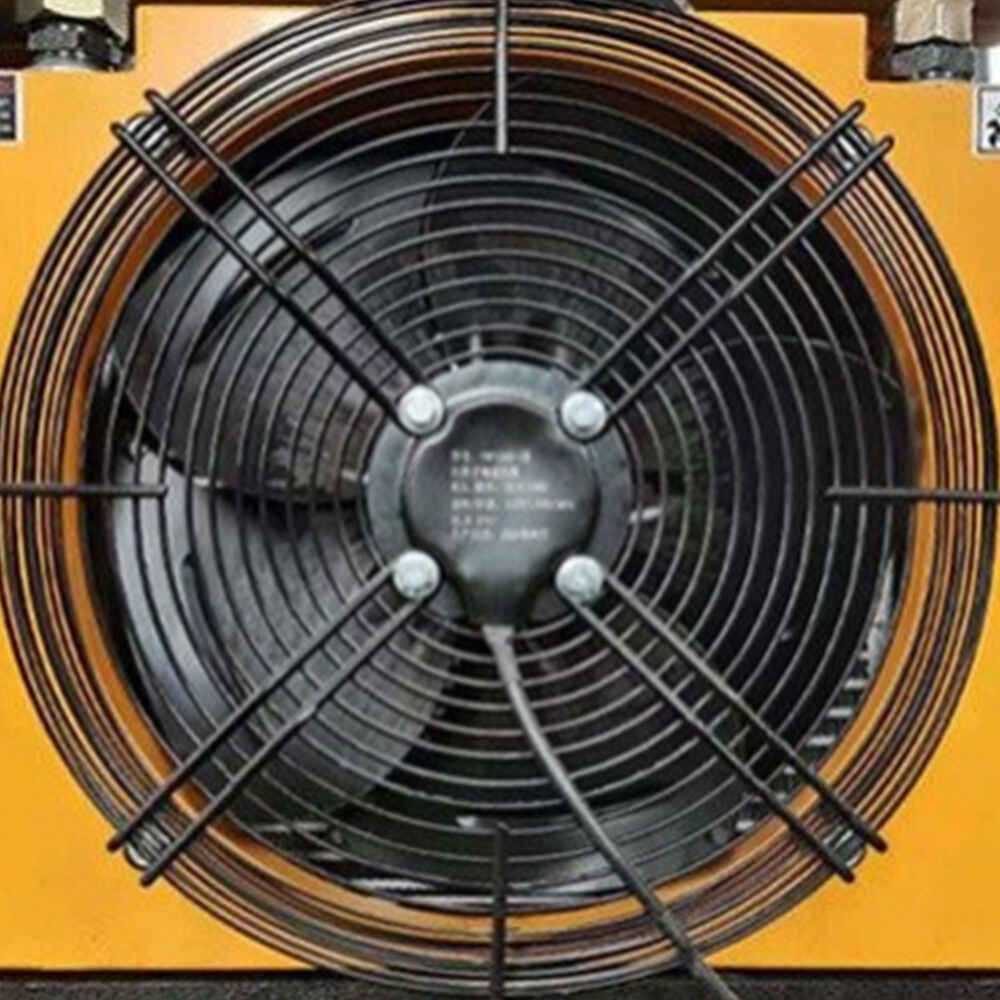

The suction type air cooling system delivers higher cooling efficiency than traditional air fans, reducing oil temperature more effectively.

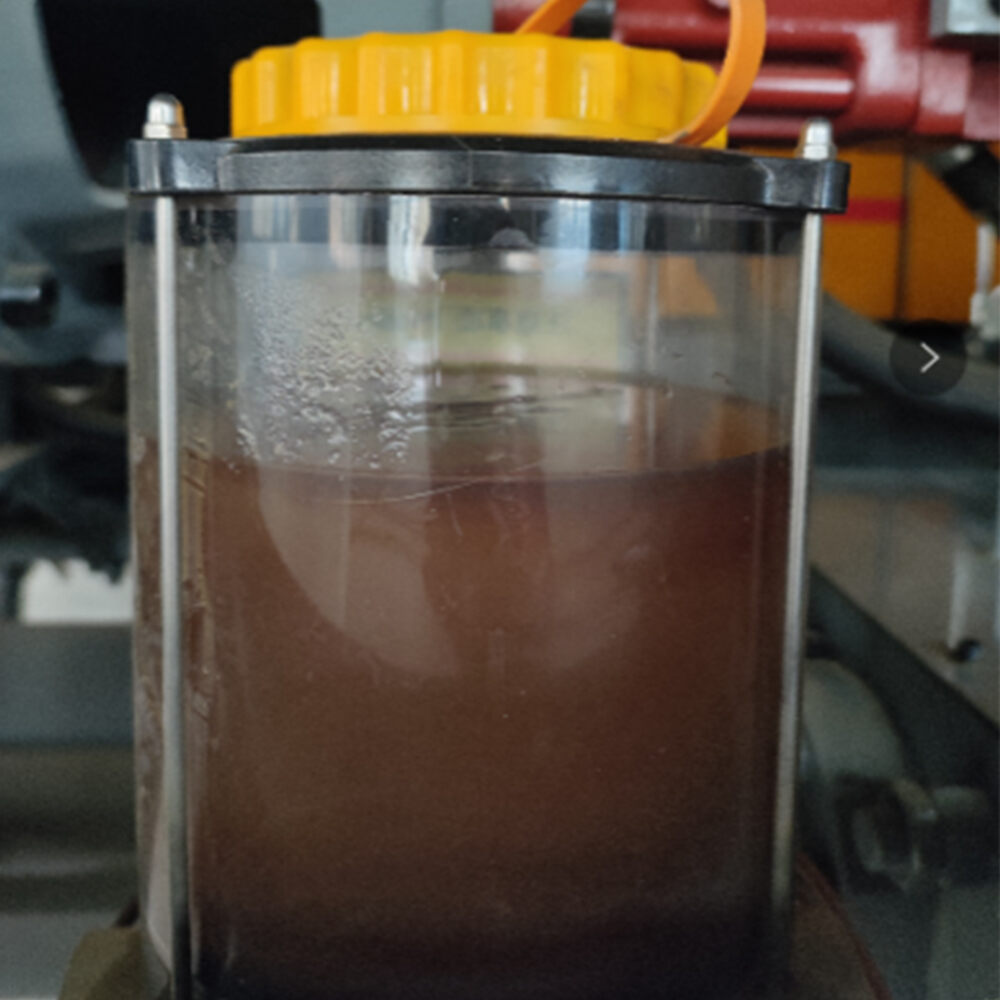

Adopting a well-known domestic brand's automatic centralized lubrication oil pump, the machine features smoother and the lubrication effect is guaranteed.
Why choose XINGHUOTEC Concrete Trailer Pump?
With high-quality key components and professional manufacturing strength, we are your reliable partner for concrete conveying equipment. Here are the core reasons why you should choose us:
● Professional Manufacturing Strength: We have a modern production base and advanced production equipment, with 10+ years of experience in manufacturing concrete conveying equipment. Our products have passed international certifications (CE, ISO, SGS), meeting the quality standards of global markets.
● Strict Quality Control: From raw material selection to finished product delivery, we implement full-process quality inspection. Each concrete trailer pump undergoes operation testing to ensure stable performance and zero defects before leaving the factory.
● Customized Solution Capacity: We can customize products based on your specific needs (such as power source, conveying capacity, size), perfectly matching your construction scenarios and solving your unique conveying problems.
● Competitive Price & Cost-Effectiveness: We offer you with competitive factory prices. At the same time, our products have low maintenance costs and long service life, helping you reduce long-term investment.
● Professional Foreign Trade Service: We have a professional foreign trade team, providing one-stop service from order confirmation, production, packaging, shipping to customs clearance and can solve all your export troubles.
● Global After-Sales Support: We providing 24-hour online technical support and timely on-site maintenance service, ensuring your construction is not interrupted.

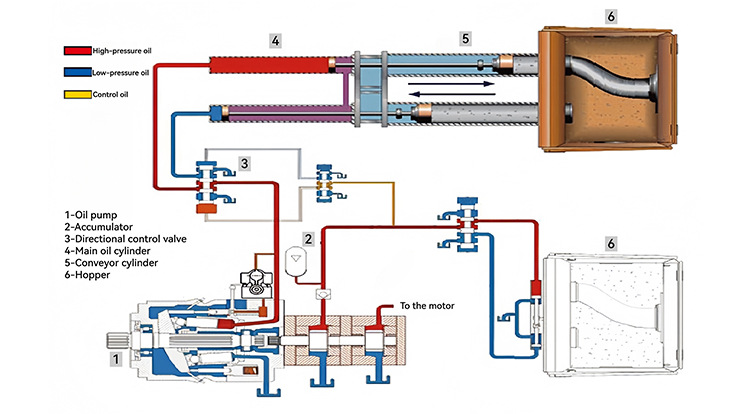

How Does a Concrete Trailer Pump Work?

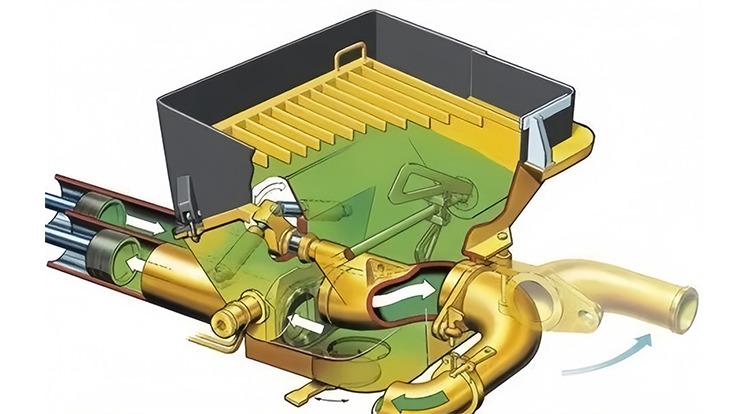

The working principle of our Concrete Trailer Pump is simple and efficient, relying on the cooperation of hydraulic system and pump body to realize stable concrete conveying.
First, the concrete is poured into the hopper, and the hydraulic cylinder drives the piston to move alternately; when one piston pushes the concrete into the conveying pipe, the other piston sucks the concrete from the hopper into the pump cylinder.
Through the continuous alternate movement of the two pistons, the concrete is conveyed to the target construction areas at a stable speed and pressure.
The whole process is controlled by the intelligent control system, which can adjust the conveying speed and pressure according to the construction needs, ensuring smooth and efficient operation without pipe blocking.
Technical Parameters of Concrete Trailer Pump
We provide multiple models of Concrete Trailer Pumps to meet different construction needs. The following are the standard parameters (It can also be customized according to your requirements):
How Much Does a Concrete Trailer Pump Cost?
The price of XINGHUOTEC Concrete Trailer Pump varies based on the model, power type,configuration, customization requirements and other factors, and the exact pricing will be offered once your specific demands are confirmed. However, we can provide you with a price range ($13,000-$50,000) for Concrete Trailer Pump for your reference.
The main factors affecting the price are as follows:
● Model & Capacity: The larger the mixing and pumping capacity, the higher the price. For example, the price of HBT80C-16-129 (80m³/h) is higher than that of HBT40C-10-82 (40m³/h), because the larger model requires more materials and higher-performance core components.
● Power Type: For identical models, the price of the diesel power type is slightly higher than that of the electric power type, because the diesel engine has higher cost and stronger mobility.
● Core Components Brand: The price of equipment equipped with well-known brand core components (such as hydraulic pump, motor, diesel engine) is higher, but the performance is more stable and the service life is longer.
● Customization Requirements: If the customer needs to customize parameters (such as increasing pumping height, changing chassis type, adding intelligent functions), the price will be adjusted according to the customization difficulty and cost.
● Order Quantity: For bulk orders (more than 3 units), we will provide preferential prices and better after-sales service.
●After-Sales Service and Warranty: High quality after-sales service, such as installation support, training, maintenance, and warranty coverage, can also affect prices. The initial price is usually higher, but it can provide peace of mind and save long-term costs.
● Logistics Transportation: Transportation costs can also affect overall prices. If the equipment is transported internationally or over long distances, logistics costs (including packaging, shipping, and insurance) will be added to the base price.

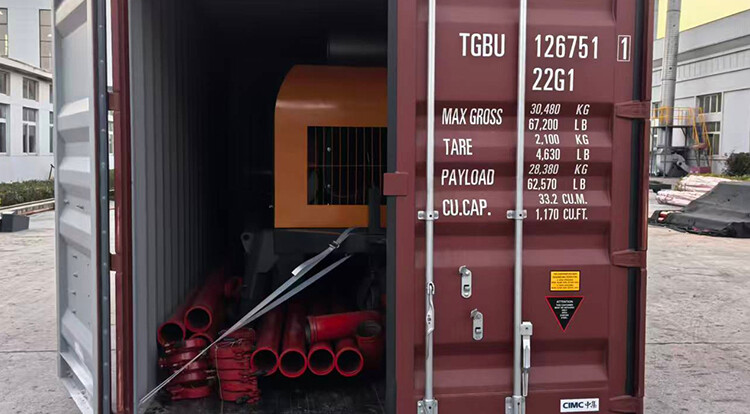

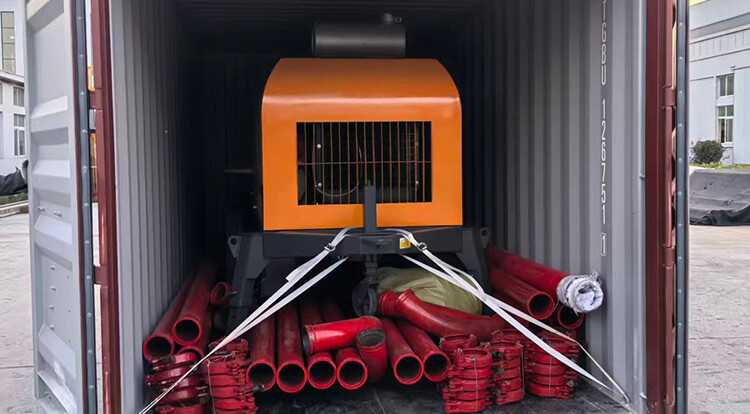

Packing & Shipping of Concrete Trailer Pumps
We adopt professional packaging and shipping methods to ensure that the equipment is not damaged during transportation, and provide door-to-door service according to the customer's needs.

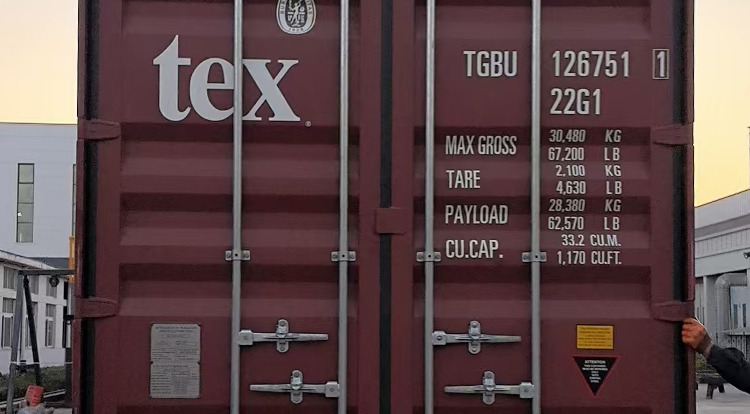

● It is generally recommended to use 20GP or 40HQ containers for international long-distance transportation of the entire machine to prevent rust and accidental damage caused by rainwater and moisture during transportation.
● The chassis is secured with steel wire ropes and wooden blocks to prevent the equipment from swaying and shifting during transportation.
● Vulnerable parts are separately packaged in foam and cardboard boxes to avoid collision damage.
Customer Cases of XINGHUOTEC Concrete Trailer Pumps
Our Concrete Trailer Pumps have been exported to more than 50 countries and regions, and has been widely praised by customers in various construction projects. Here are some typical cases for your reference:
HBTS30 Concrete Trailer Pump in Colombia
HBTS60 Concrete Trailer Pump in Serbia
HBTS80 Concrete Trailer Pump in Zimbabwe
HBTS90 Concrete Trailer Pump in Morocco
Comprehensive and attentive service throughout the process
Service Philosophy:
● Satisfy your urgent needs, provide what you need.
● Not only do we respond to your needs promptly, but we also turn passive service into proactive service.
● We will promptly and accurately provide genuine accessories with high cost-effectiveness.
● With more comprehensive and attentive personalized services, we ensure that every equipment receives comprehensive care throughout its entire lifecycle, maintaining it in good condition anytime, anywhere.
Pre-sales Service: Gain keen insight into and deeply explore the essential and potential needs of customers, and actively adapt to and effectively guide customers' needs.We provide you with tailored solutions and personalized services.
In-sales Service: Complete product manufacturing on schedule, with high quality and high standards, and communicate information promptly during the process. Strictly control product quality and conduct inspection and testing before shipment.
After-sales Service: Our company have a professional after-sales service team. Our after-sales engineers offer a range of services, including transportation, installation, debugging, training, and spare parts supply, ensuring you have a worry-free experience in purchasing and using our machines.
Pre-sales Service
One-on-one consultative service
Assist customers in equipmentselection
Customized Solutions
Transportation plan consultation
In-sales Service
Production supervision
Communicate project progress in atimely manner
Factory debugging and testing
After-sales Service
Transport Service
Installation Service
TRAINING
Quality Assurance Service
Spare Parts Service
FAQs About Concrete Trailer Pump
We have sorted out the most frequently asked questions from overseas customers to help you quickly solve doubts and make purchase decisions:
Q: Can we customize the Concrete Trailer Pump according to our specific needs?
A: Yes, we support full customization. We can adjust the model, conveying capacity, power source (diesel/electric), key components brand and equipment size according to your construction scenarios and requirements, to perfectly match your actual needs.
Q: What is the delivery time of the Concrete Trailer Pump?
A: The standard delivery time is 15-25 working days for regular models; for customized models, the delivery time is 25-40 working days, depending on the customization complexity and order quantity.
Q: Do your products have international certifications?
A: Yes, all our concrete trailer pumps have passed international certifications such as CE, ISO and SGS, which meet the quality and safety standards of global markets.
Q: Do you provide technical training and operation guidance?
A: Yes, we provide free technical training for your operators and maintenance personnel, including on-site training (if needed) and online training, to help you master the operation and daily maintenance skills quickly.
Q: What should we do if the equipment breaks down during use?
A: We provide 24-hour online technical support; if the problem cannot be solved online, we will arrange professional technicians to provide on-site maintenance service.
Q: Can you provide spare parts for a long time after purchase?
A: Yes, we provide original spare parts for a long time at preferential prices, and we have a professional spare parts warehouse to ensure timely supply, reducing your equipment downtime.
