Max. feeding size: 500-1500 mm (Customized)
Capacity: 120-1200 t/h (Customized)
Product Overview

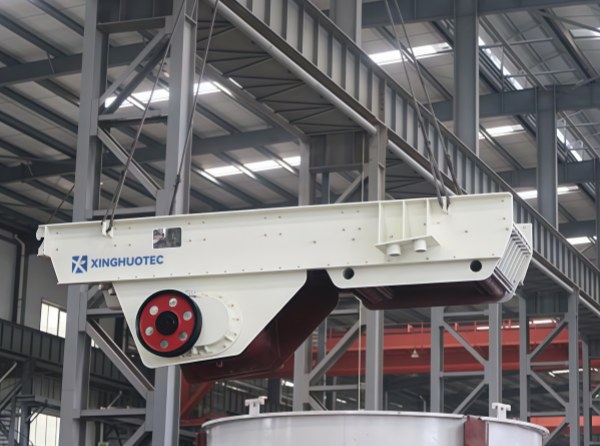

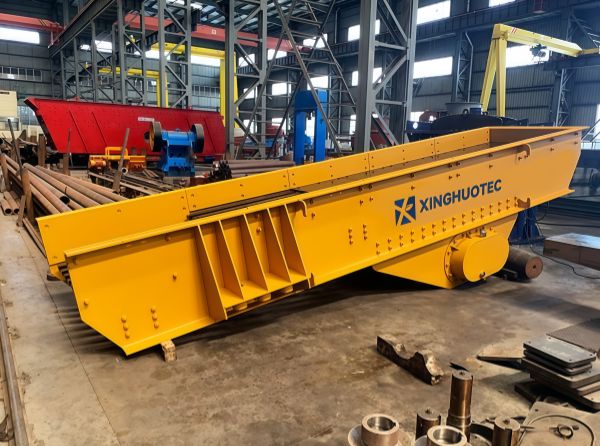

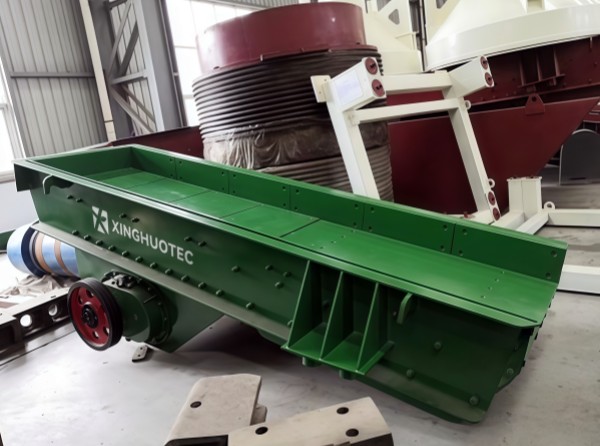

XINGHUOTEC Vibrating Feeder is a reliable feeding equipment designed for continuous and uniform material supply in crushing and screening production lines.
It uses a vibration-driven feeding system consisting of a feeding trough, vibrator, spring support and drive device. During operation, the motor drives the eccentric shafts inside the vibrator to generate continuous linear vibration, causing materials to move forward through sliding and throwing motion along the feeding trough.
The vibrating feeder can evenly transfer bulk and granular materials from storage bins to crushers or other processing equipment. Meanwhile, the specially designed grate section can pre-screen fine materials, improving overall production efficiency and reducing unnecessary crushing load.
It is widely used in mining, metallurgy, coal, building materials, chemical industry and aggregate production applications.
Application Scenarios

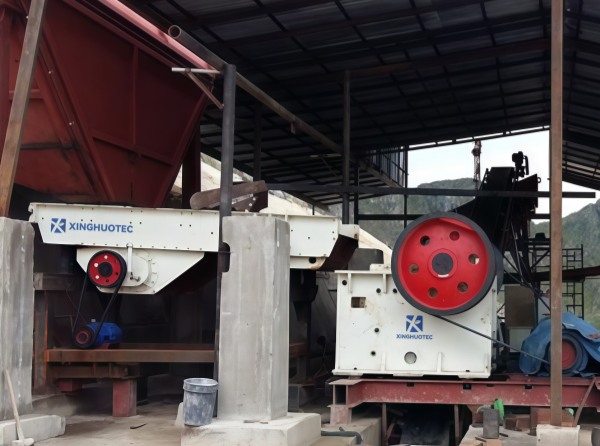

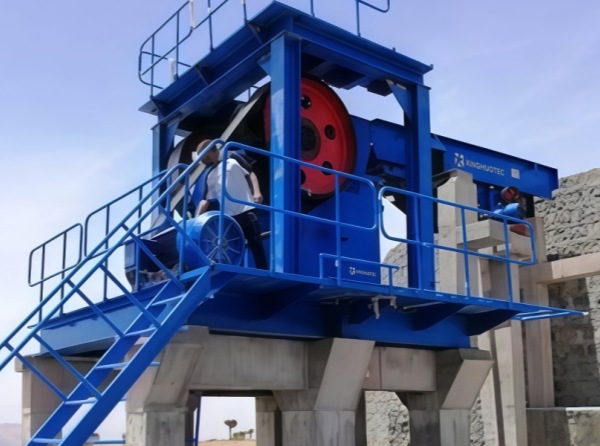

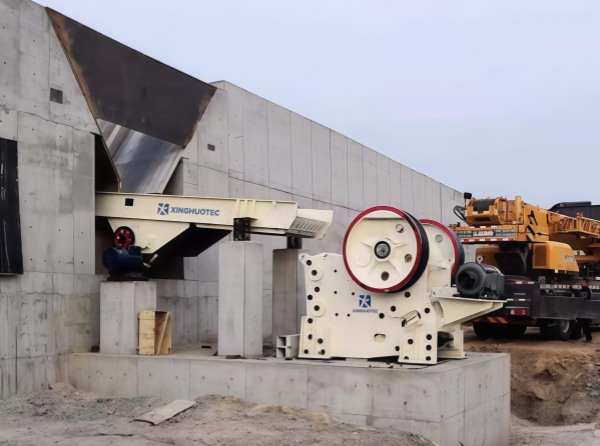

● Continuous Feeding for Crushing Plants: Vibrating Feeders provide stable and controlled material supply for crushers, ensuring continuous operation and improving the efficiency of the entire crushing process.
● Primary Screening Before Crushing: The grate design allows smaller materials to pass through before crushing, reducing unnecessary processing and improving equipment utilization.
● Heavy-duty Material Feeding: With strong vibration force and durable structural design, the feeder is suitable for handling large-sized rocks and bulk materials in mining and quarrying operations.
● Flexible Feeding Control: Optional frequency conversion control allows operators to adjust vibration frequency and feeding capacity according to production requirements.
Features & Advantages
XINGHUOTEC Vibrating Feeder features stable operation, efficient feeding performance and simple maintenance. With optimized vibration structure and durable components, it provides reliable material handling solutions for various industrial applications.
● Stable Vibration & Reliable Operation: The optimized vibrator structure generates stable linear vibration, ensuring smooth material movement and continuous feeding performance.
● Adjustable Feeding Capacity: The optional frequency conversion motor allows users to adjust vibration frequency according to production requirements, providing precise control of feeding capacity.

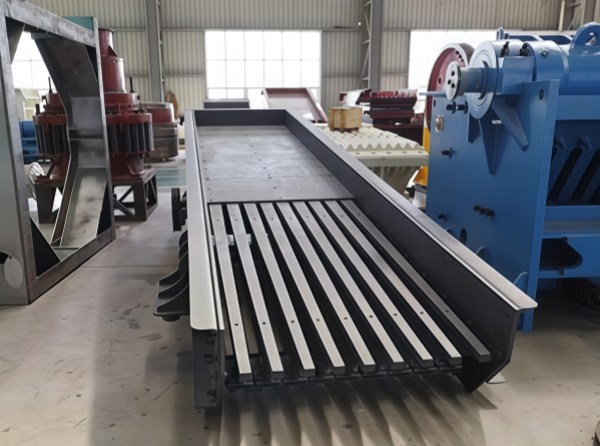

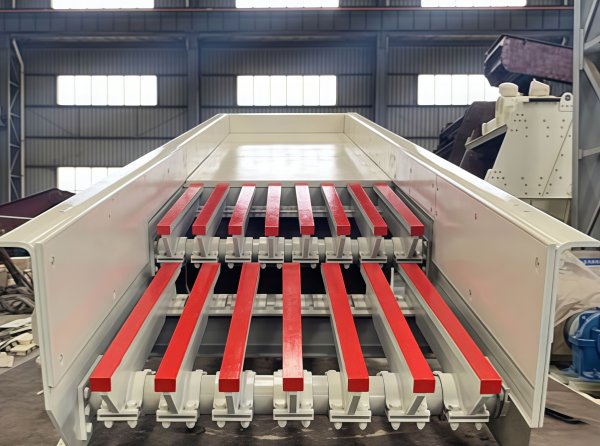

● Efficient Pre-screening Function: The specially designed grate bars separate smaller particles before crushing, reducing the load on downstream equipment and improving production efficiency.
● Wear-resistant Design & Long Service Life: Wear-resistant components reduce abrasion caused by continuous material impact and improve equipment durability under heavy-duty working conditions.
● Simple Structure & Easy Maintenance: The simple mechanical structure makes inspection and maintenance easier while reducing downtime and operating costs.
Structural Features
XINGHUOTEC Vibrating Feeder adopts a simple and reliable structural design. The main components include the feeding trough, vibrator, spring support and drive system. Each part is optimized for stable vibration, efficient feeding and long-term operation under heavy-duty working conditions.

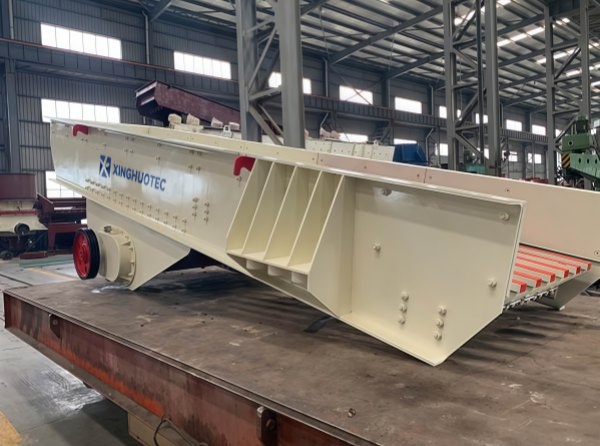

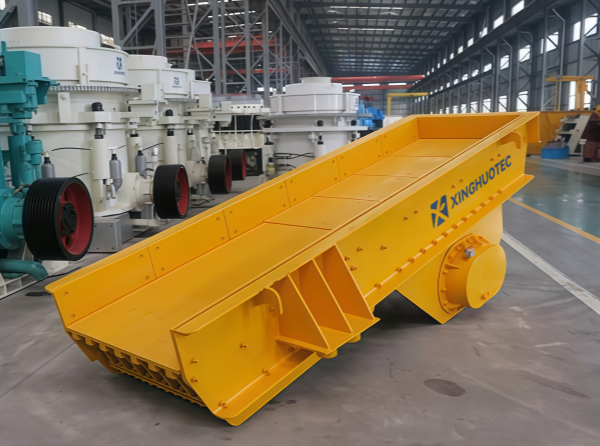

● Feeding Trough: The feeding trough is the main material conveying component. It is manufactured from high-strength steel plates with excellent rigidity and durability, ensuring stable operation under continuous material impact.
● Vibrator System: The vibrator is the core component of the equipment. It consists of two eccentric shafts and gear transmission components. Driven by the motor, the eccentric shafts rotate synchronously to generate strong linear vibration force, driving materials forward along the trough.

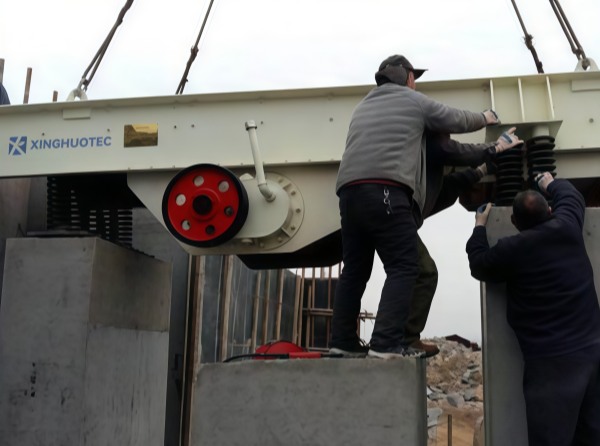

● Spring Support System: The spring support adopts steel spiral springs to provide effective vibration isolation and stable support. It features reliable performance, strong load-bearing capacity and long service life.
● Drive Device: The motor drives the eccentric shaft through belt transmission. The flexible connection design ensures smooth power transmission, reduces impact on the motor and improves equipment reliability.
Technical Parameters
FAQ About Vibrating Feeder
Q: What is the difference between Vibrating Feeder and Belt Conveyor?
A: Vibrating Feeders are mainly used for controlled feeding before crushing and screening equipment. They can handle large-sized materials and provide pre-screening functions. Belt Conveyors are mainly used for long-distance horizontal or inclined transportation of processed materials. In many production lines, Vibrating Feeders and Belt Conveyors work together to achieve efficient material handling.
Q: Can Vibrating Feeders screen materials?
A: Yes. Some Vibrating Feeders are equipped with grate bars or screening sections that allow smaller materials to pass through before entering the crusher. This reduces unnecessary crushing load and improves production efficiency.
Q: How to choose the right Vibrating Feeder model?
A: The selection mainly depends on:
● Material type and characteristics
● Maximum feeding size
● Required feeding capacity
● Installation conditions
● Production line layout
XINGHUOTEC can provide suitable equipment recommendations according to specific project requirements.
Q: Can the feeding capacity be adjusted?
A: Yes. By using a frequency conversion motor, users can adjust vibration frequency according to production requirements, controlling material feeding speed more accurately.
Q: What materials can Vibrating Feeders handle?
A: Vibrating Feeders can handle various bulk materials including limestone, granite, basalt, coal, ore and construction materials. They are suitable for both mining operations and aggregate production lines.
