Max. Platform Height: 6m–14 m
Rated Capacity: 227kg-550kg
Product Overview
The Self-Propelled Scissor Lift (GTJZ series aerial work platform) is a fully electric, self-driving hydraulic lifting device. It combines vertical lifting and electric travel as one unit, no towing or external traction required. A single operator can complete driving, steering, lifting and lowering operations easily. Featuring a compact structure and flexible movement, it is widely used for indoor and outdoor high-altitude work.
This platform features small footprint, great maneuverability and efficient operation. You can use a lifting platform instead of scaffolding to reach the height you need and solve your problem difficulty. At the same time, it can also save you costs and valuable time.
Application Scenarios
The self-propelled scissor lift is suitable for various working environments in different industries:

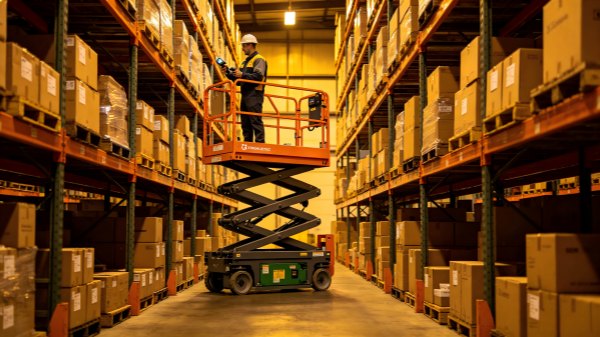

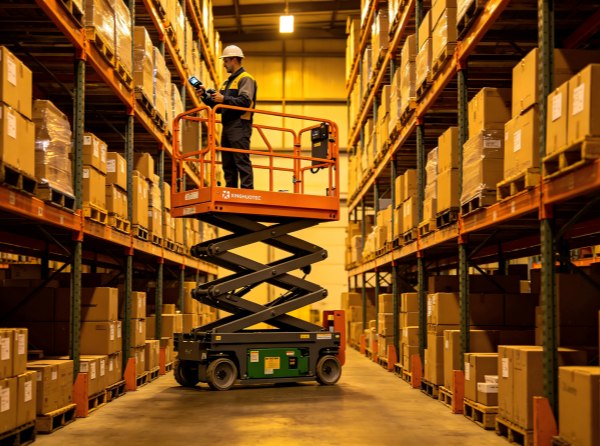

● Logistics & Warehouse: Stock taking, shelf installation and maintenance.

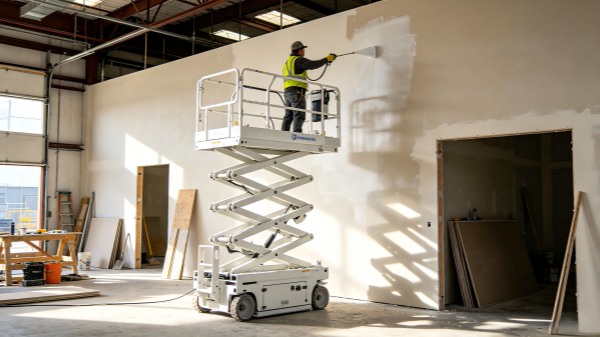

● Building Decoration & Maintenance: Wall painting, ceiling repair, curtain wall construction.
● Commercial Venues: Shopping malls, hotels, exhibition centers, airport facilities.

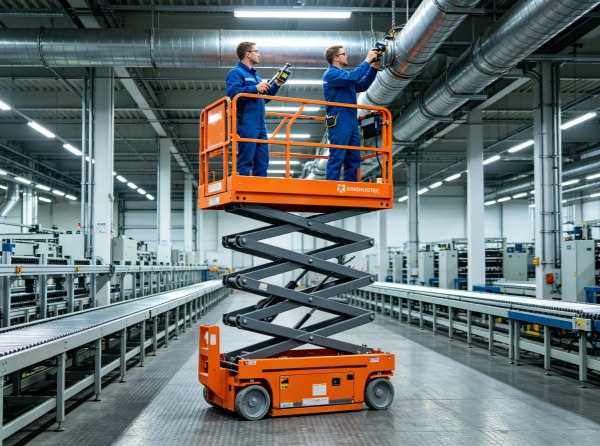

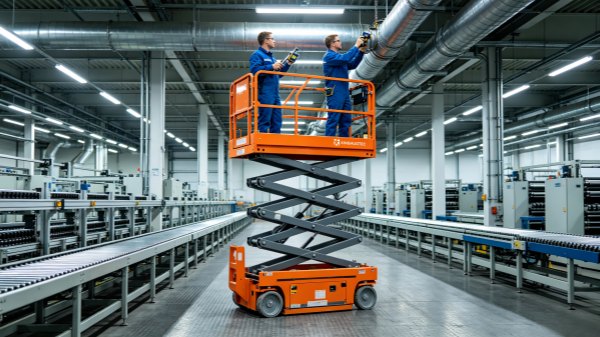

● Industrial Workshops: Pipeline laying, circuit wiring, mechanical equipment assembly.

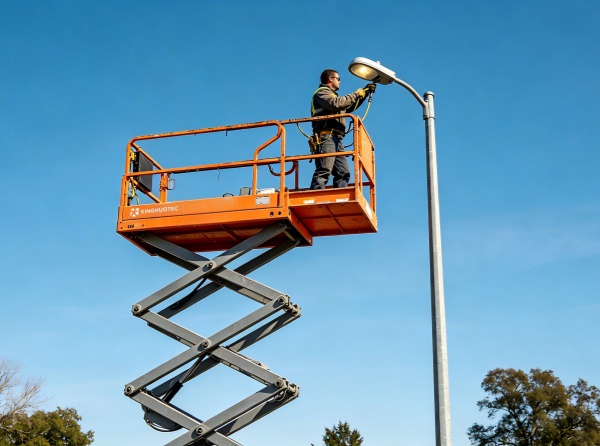

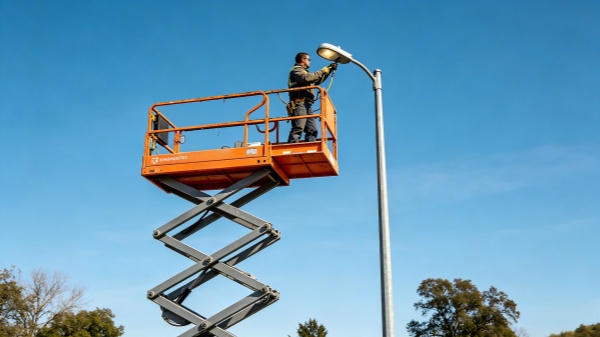

● Outdoor Public Works: Street lamp maintenance, garden pruning, municipal engineering.
Different Types of Self-Propelled Scissor Lifts

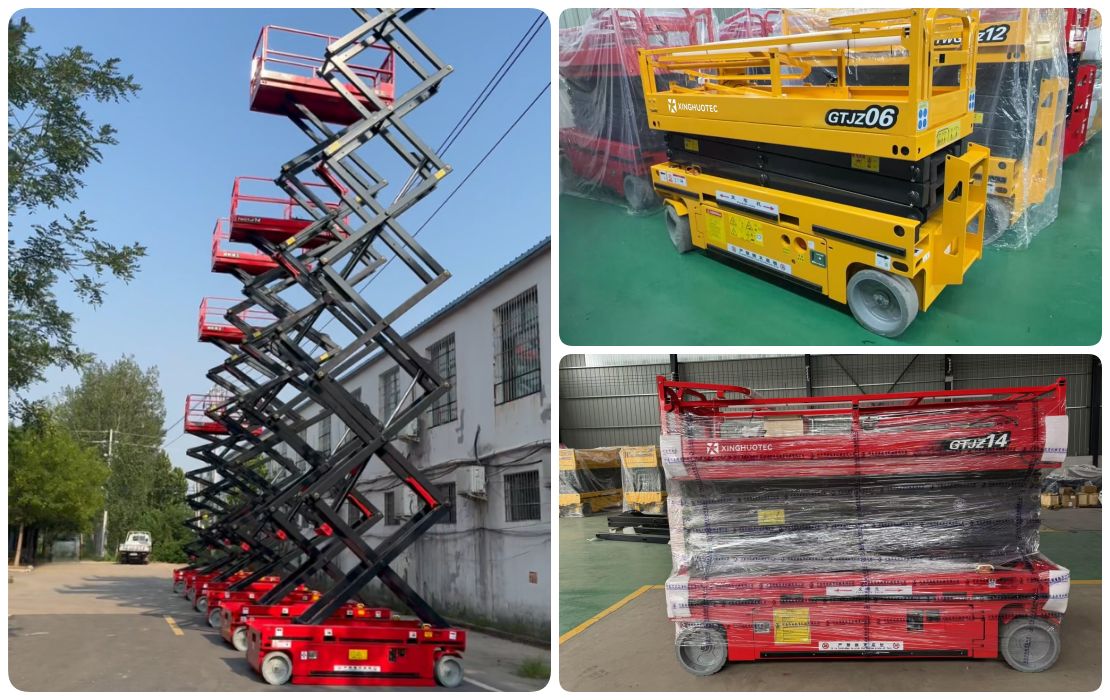

XINGHUOTEC offers self-propelled scissor lift platforms in popular standard models, including 6m, 8m, 10m, 12m, and 14m. If you have other special requirements (such as lifting height, load capacity, and platform sizes ), we can also tailor-make and design products exclusively for you based on your needs. Please feel free to inquire.

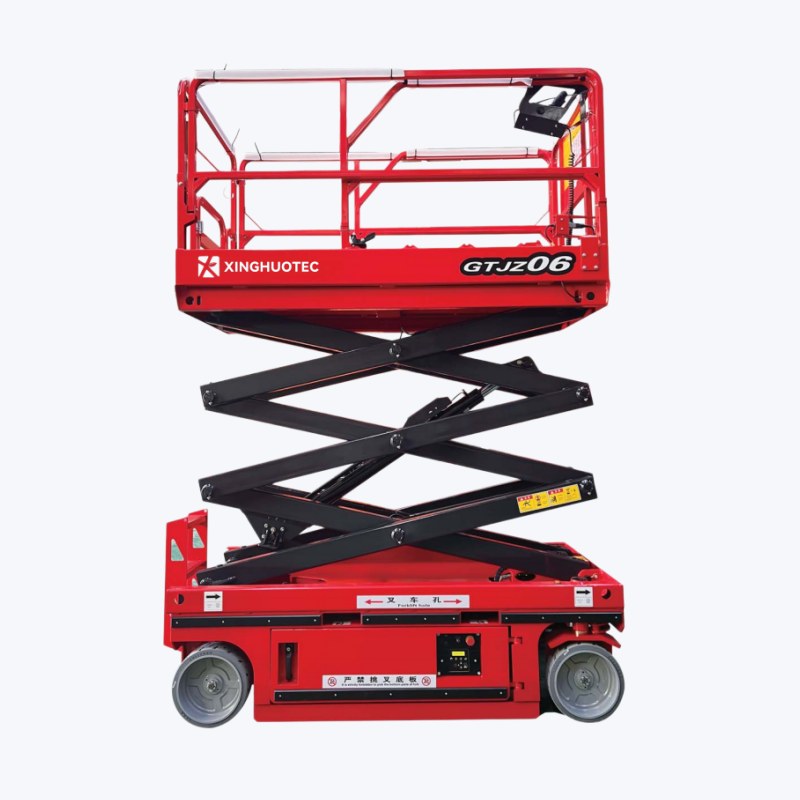

● Model: GTJZ06
● Max. platform height: 6m
● Max. working height: 8m
● Rated Capacity: 550kg
● Working platform size (L × W): 2.27m × 1.15m
● Platform extendable size: 0.9m
● Extended platform safety working load: 110kg
● Driving Speed (Lowered): 3.5km/h
● Driving Speed (Raised): 0.8km/h
● Max Gradeability: 25%
● Lifting / Lowering speed: 100 / 80 mm/s
● Motor power: 3.3KW
● Overall length: 2.45m
● Overall width: 1.21m
● Overall height (unfolded fence): 2.24m
● Overall height (folded fence): 1.71m
● Overall Weight: 2050kg

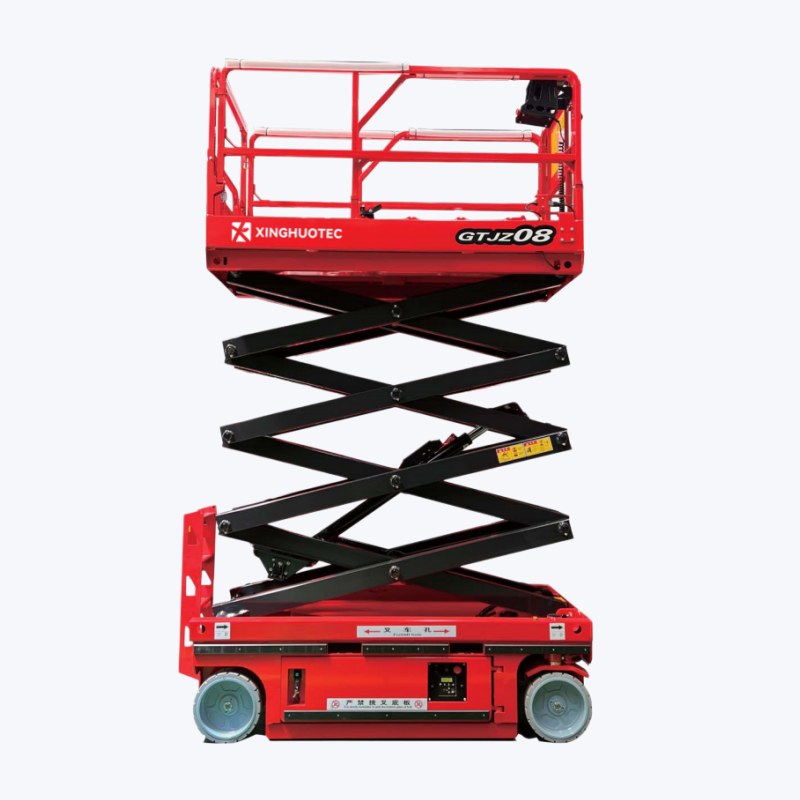

● Model: GTJZ08
● Max. platform height: 8m
● Max. working height: 10m
● Rated Capacity: 450kg
● Working platform size (L × W): 2.27m × 1.15m
● Platform extendable size: 0.9m
● Extended platform safety working load: 113kg
● Driving Speed (Lowered): 3.5km/h
● Driving Speed (Raised): 0.8km/h
● Max Gradeability: 25%
● Lifting / Lowering speed: 100 / 80 mm/s
● Motor power: 3.3KW
● Overall length: 2.45m
● Overall width: 1.21m
● Overall height (unfolded fence): 2.37m
● Overall height (folded fence): 1.84m
● Overall Weight: 2190kg

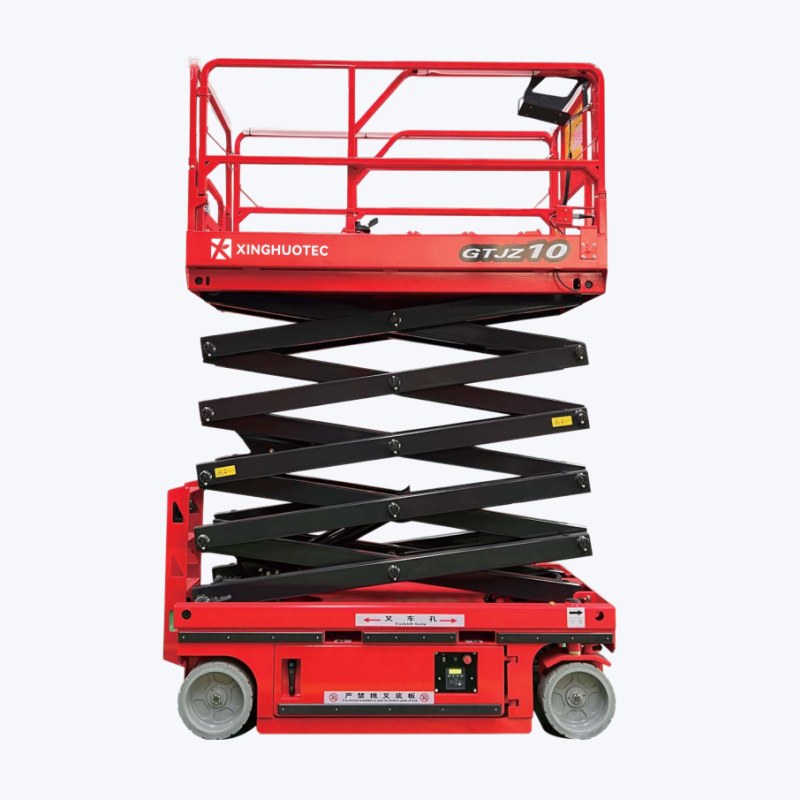

● Model: GTJZ10
● Max. platform height: 10m
● Max. working height: 12m
● Rated Capacity: 320kg
● Working platform size (L × W): 2.27m × 1.15m
● Platform extendable size: 0.9m
● Extended platform safety working load: 110kg
● Driving Speed (Lowered): 3.5km/h
● Driving Speed (Raised): 0.8km/h
● Max Gradeability: 25%
● Lifting / Lowering speed: 100 / 80 mm/s
● Motor power: 4.5KW
● Overall length: 2.45m
● Overall width: 1.21m
● Overall height (unfolded fence): 2.49m
● Overall height (folded fence): 1.96m
● Overall Weight: 2690kg

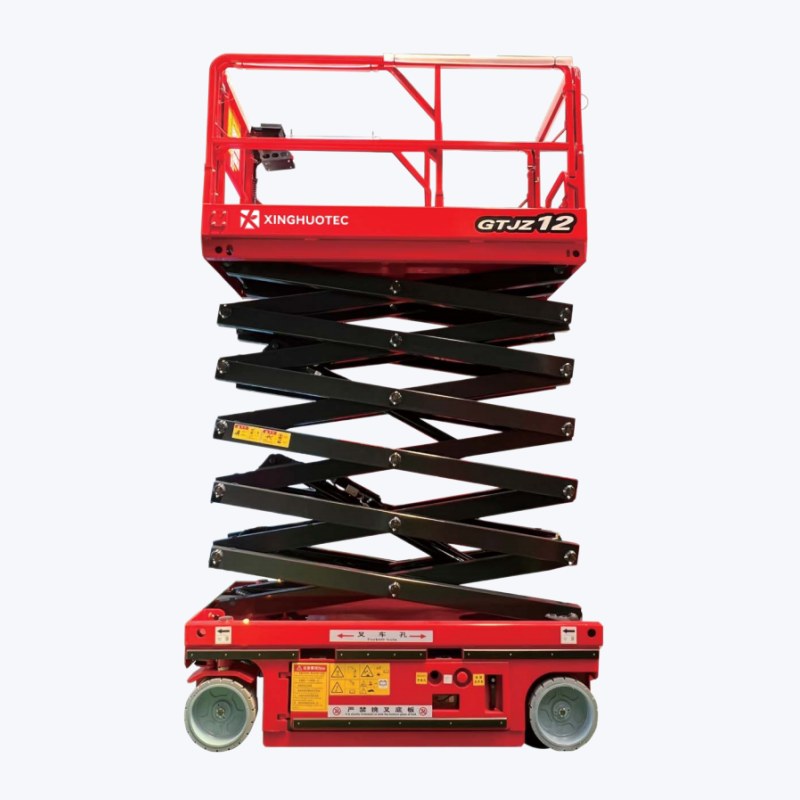

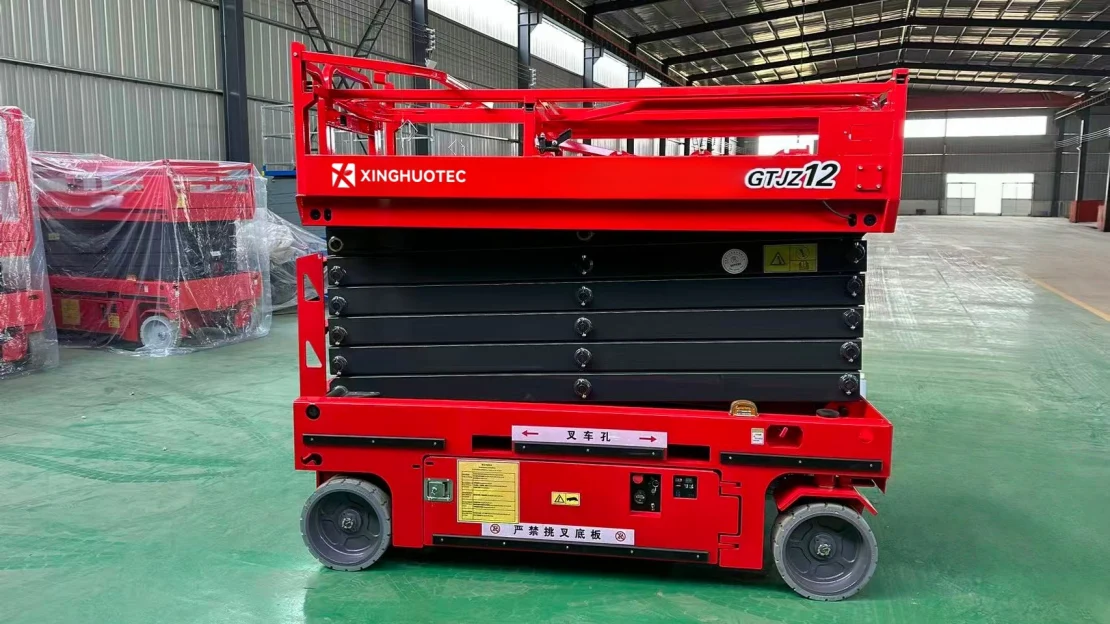

● Model: GTJZ12
● Max. platform height: 12m
● Max. working height: 14m
● Rated Capacity: 320kg (Standard) / 500kg (Optional)
● Working platform size (L × W): 2.27m × 1.15m / 2.67m×1.11m
● Platform extendable size: 0.9m
● Extended platform safety working load: 110kg
● Driving Speed (Lowered): 3.5km/h
● Driving Speed (Raised): 0.8km/h
● Max Gradeability: 25%
● Lifting / Lowering speed: 100 / 80 mm/s
● Motor power: 4.5KW
● Overall length: 2.45m / 2.85m
● Overall width: 1.21m / 1.31m
● Overall height (unfolded fence): 2.62m / 2.64m
● Overall height (folded fence): 2.09m / 2.09m
● Overall Weight: 2890kg / 3450kg

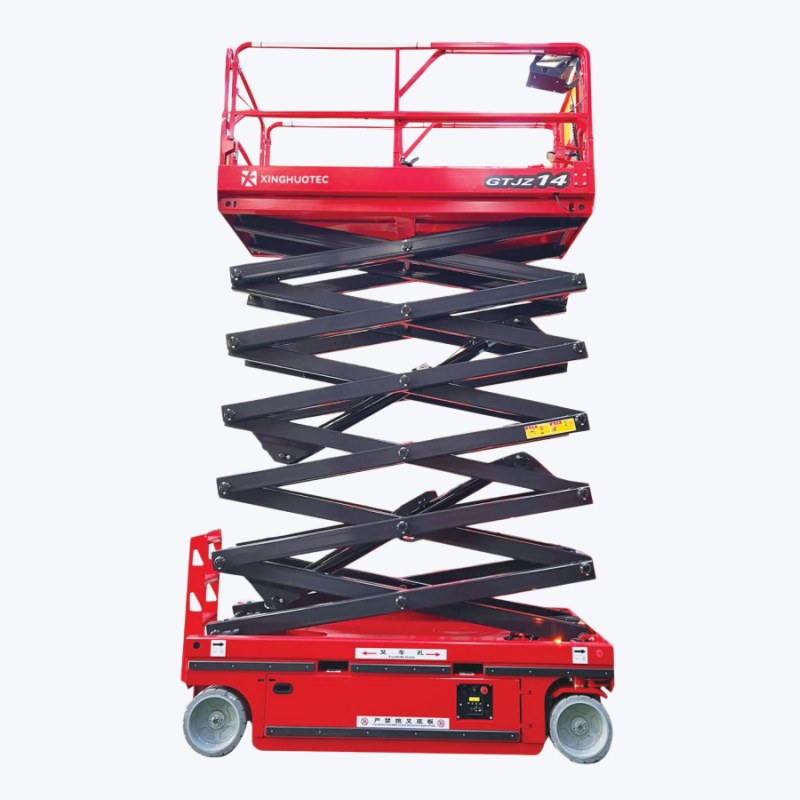

● Model: GTJZ14
● Max. platform height: 14m
● Max. working height: 16m
● Rated Capacity: 227kg (Standard) / 500kg (Optional)
● Working platform size (L × W): 2.67m×1.11m
● Platform extendable size: 0.9m
● Extended platform safety working load: 100kg
● Driving Speed (Lowered): 3.5km/h
● Driving Speed (Raised): 0.8km/h
● Max Gradeability: 25%
● Lifting / Lowering speed: 100 / 80 mm/s
● Motor power: 4.5KW
● Overall length: 2.85m
● Overall width: 1.31m
● Overall height (unfolded fence): 2.64m
● Overall height (folded fence): 2.09m
● Overall Weight: 3620kg
Product Features of Self-Propelled Scissor Lifts
Self-propelled scissor lifts simplify numerous difficult and high-risk aerial tasks.They possess the following product features:
● Self-Propelled & Flexible Maneuverability: Equipped with an electric drive system and zero turning radius design, it can freely move and turn in narrow aisles, narrow doorways and elevators. A max gradeability of 25% ensures stable climbing on slopes.
● Easy Operation & Intelligent Control: Proportional speed control for smooth lifting and travelling.Only one person is needed to operate, and all movements can be controlled on the working platform using an operation handle. The motor features stepless speed adjustment. The fault codes can be automatically displayed for convenient maintenance.
● Extendable Working Platform: Fitted with an extension deck to expand operating range, meeting the demands of large-area high-altitude work.
● High Safety & Stable Structure: Adopts high-strength manganese steel scissor arms. Maximum working capacity 550kg.Built with anti-tilt protection, emergency stop button, emergency descent function and explosion-proof hydraulic pipes for full safety guarantee.
● Eco-friendly & Low Noise: Battery-powered operation with zero exhaust emissions and low running noise. Perfect for enclosed spaces and noise-sensitive areas.
Why Choose XINGHUOTEC Scissor Lifts
● Factory direct supply with competitive pricing.
● Compliant with EN ISO 12100, EN 60204, EN 280 international safety standards.
● 12-month warranty and reliable after-sales service.
● Supports OEM & ODM, logo and appearance customization
Pre-sales Service
One-on-one consultative service
Assist customers in equipmentselection
Customized Solutions
Transportation plan consultation
In-sales Service
Production supervision
Communicate project progress in atimely manner
Factory debugging and testing
After-sales Service
Transport Service
Installation Service
TRAINING
Quality Assurance Service
Spare Parts Service
Packing & Delivery of Scissor Lifts
We adopt professional packaging and shipping methods to ensure that the equipment is not damaged during transportation, and provide door-to-door services according to the customer’s needs.
● It is generally recommended to use 20GP or 40HQ containers for international long-distance transportation of the entire machine to prevent rust and accidental damage caused by rainwater and moisture during transportation.
● The chassis is secured with steel wire ropes and wooden blocks to prevent the equipment from swaying and shifting during transportation.
● Vulnerable parts are individually packaged in foam and cardboard boxes to avoid collision damage.
