Number of Layers: 2-4
Screen Opening Size: 3-200 mm (Customized)
Capacity: 10-1300 t/h (Customized)
Product Overview

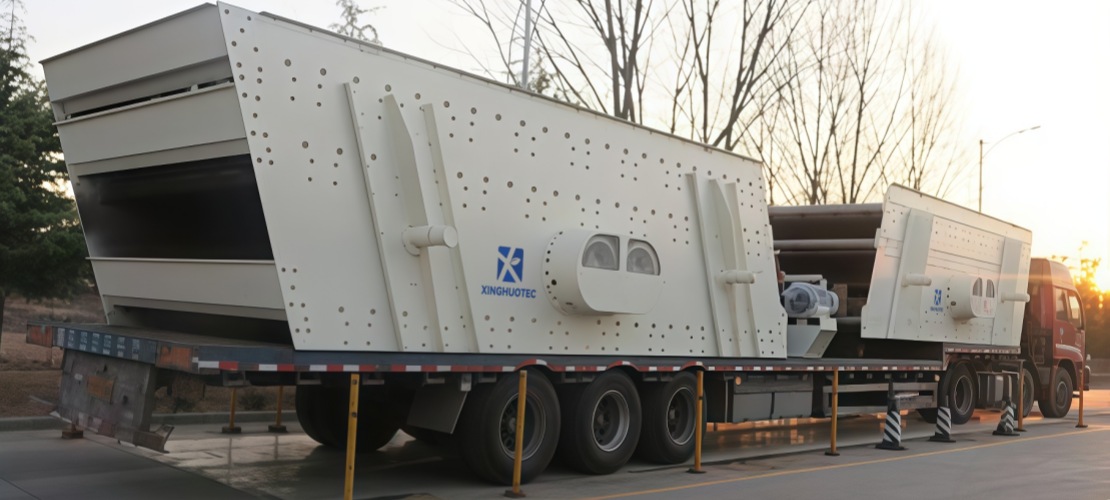

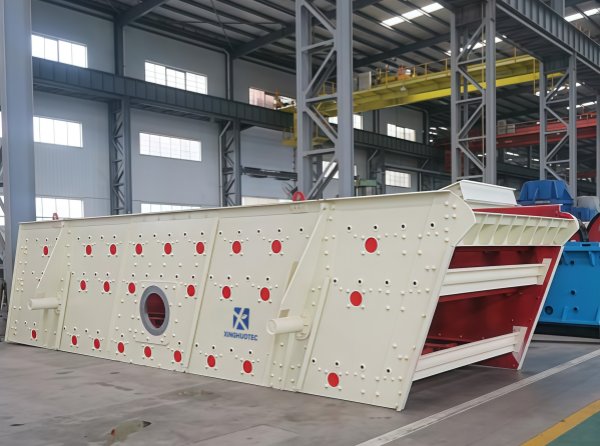

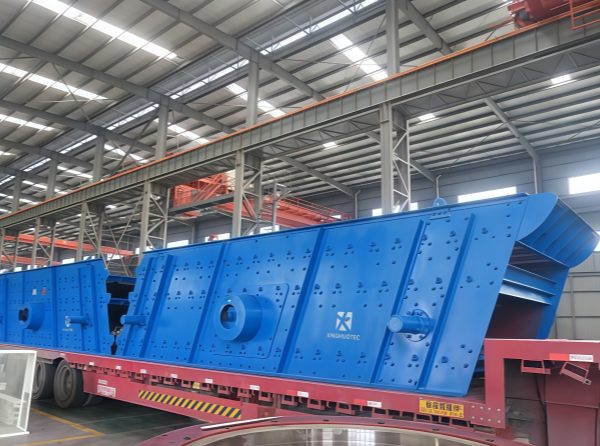

XINGHUOTEC Vibrating Screen is a high-performance screening machine used for separating materials according to different particle sizes.
The equipment adopts an eccentric shaft vibration system and adjustable eccentric block design to generate strong and stable vibration force. Driven by the motor, the vibrator produces a circular motion trajectory of the screen box, causing materials to move continuously on the inclined screen surface. During the screening process, particles smaller than the screen opening pass through the screen mesh, while larger particles move forward and are discharged separately.
With optimized structural design, durable components and multi-layer screening capability, the vibrating screen provides high screening efficiency, clear material classification and reliable performance in demanding working environments.
It is widely used in mining, quarrying, aggregate production, metallurgy, coal processing and construction material industries.
Application Scenarios
● Mining Ore Classification: Vibrating Screens are widely used in mining operations for separating crushed ores into different particle sizes before further processing.

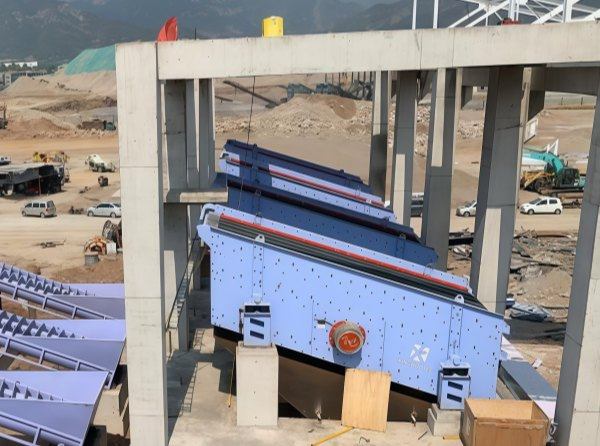

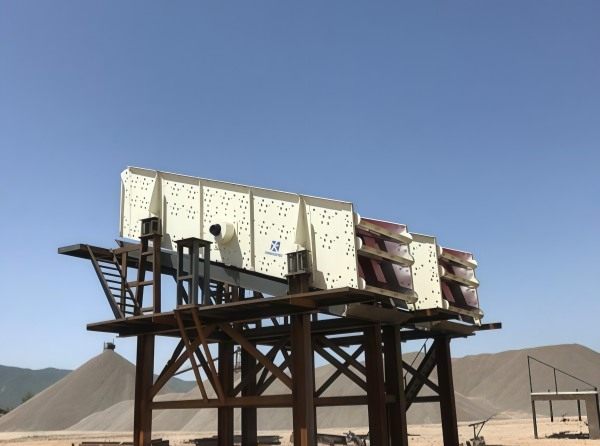

● Aggregate Size Separation: In aggregate production lines, vibrating screens classify crushed stone into multiple sizes to meet different construction requirements.
● Sand & Gravel Processing: The equipment provides efficient screening performance for sand and gravel production, improving product quality and production efficiency.
● Industrial Material Screening: Vibrating Screens can also be applied in coal, metallurgy and building material industries for material classification and separation.
Features & Advantages
XINGHUOTEC Vibrating Screen combines efficient screening performance with reliable structural design. The optimized vibration system ensures stable material movement, high screening accuracy and long service life.
● Strong Vibration Force & High Screening Efficiency: The eccentric vibration system generates strong centrifugal force, providing sufficient vibration intensity for efficient material separation.

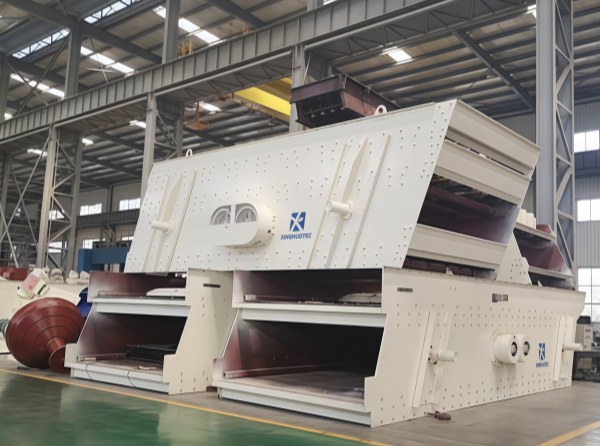

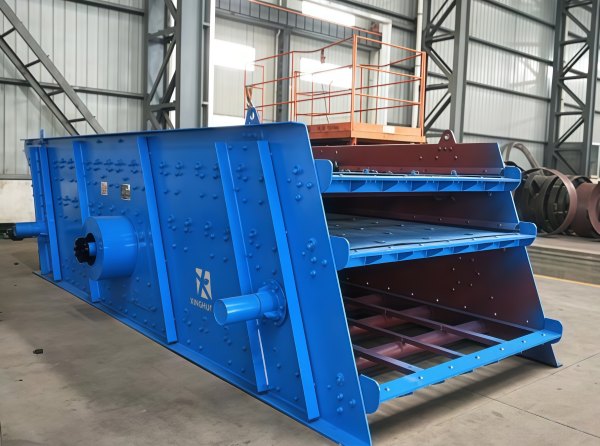

● Multi-layer Screening & Accurate Classification: Multiple screening layers allow materials to be separated into different sizes, improving screening flexibility and product quality.
● Stable Operation & Low Noise: Optimized vibration structure and flexible coupling design ensure smooth operation with reduced vibration impact and noise.
● Durable Structure & Easy Maintenance: High-strength bolts are used for key structural connections, reducing welding stress and improving equipment reliability.
Structural Features
The main components of Vibrating Screen include screen box, screen mesh, vibrator, damping spring and base frame. Each component is designed to ensure stable vibration and efficient screening performance.

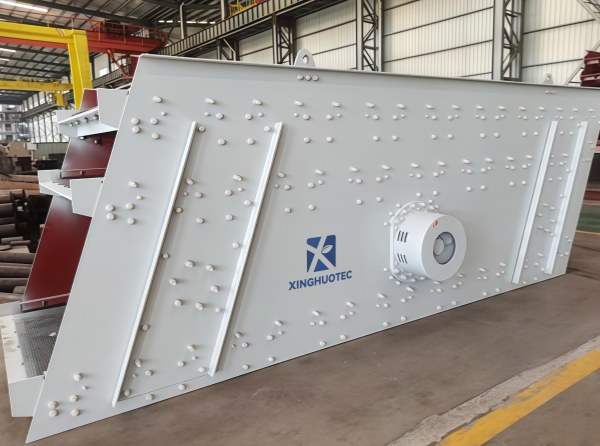

● Screen Box: The screen box is the main working part carrying the screen mesh. Its strong structure ensures reliable operation under continuous vibration.
● Vibrator System: The vibrator uses eccentric components to generate vibration force, driving the screen box to perform circular movement.
● Spring Damping System: The damping springs reduce vibration transmission to the foundation and improve equipment operating stability.
Technical Parameters
FAQ About Vibrating Screens
Q: Can Vibrating Screens separate different material sizes?
A: Yes. Multi-layer vibrating screens can separate materials into multiple sizes according to different production requirements.
Q: How to choose the right Vibrating Screen?
A: Selection depends on material characteristics, required capacity, feeding size, screening layers and final product requirements.
Q: What types of materials can a Vibrating Screen process?
A: Vibrating Screens are suitable for screening a wide range of materials, including limestone, granite, basalt, gravel, sand, coal, ore and other bulk materials. The suitable application depends on material characteristics, particle size distribution and production requirements.
Q: Why does a Vibrating Screen have a circular vibration trajectory?
A:The circular vibration trajectory allows materials to move continuously across the screen surface through throwing and falling motion. This improves material loosening, increases contact between materials and screen mesh, and helps achieve efficient separation.

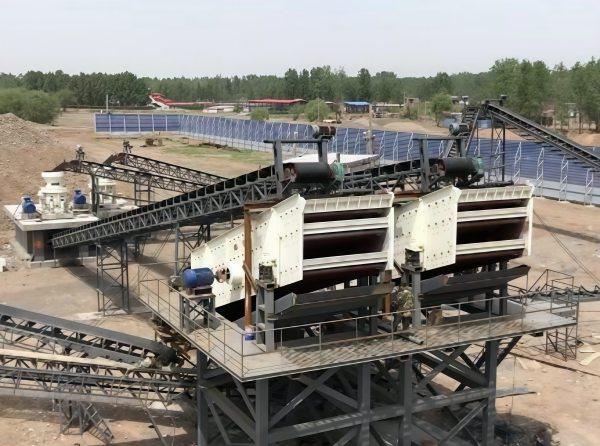

Q: Can Vibrating Screens be used in complete crushing plants?
A: Yes. Vibrating Screens are commonly installed after crushers to classify finished materials and return oversized particles for further processing. They are an important part of many crushing and aggregate production systems.
Q: What factors affect Vibrating Screen screening efficiency?
A: Screening efficiency is affected by several factors, including material characteristics, moisture content, feeding amount, screen opening size, vibration parameters and installation angle. Proper equipment selection and operation adjustment can significantly improve screening performance.
