Lifting Capacity: 5–500 tons (Customizable)
Span Length: 18–35 m (Customizable)
Lifting Height: 6–18 m (Customizable)
Product Overview

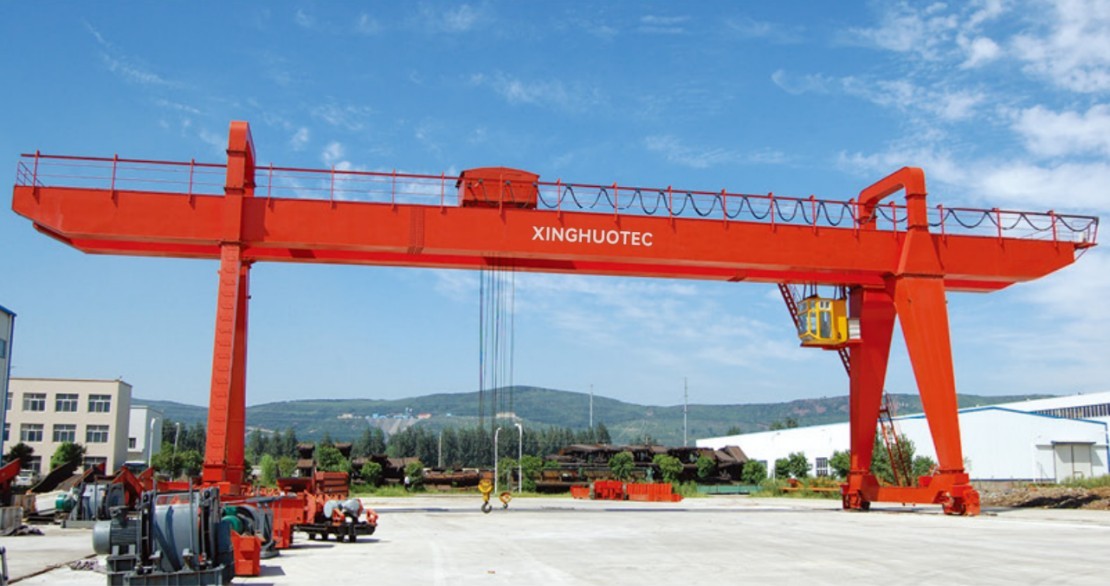

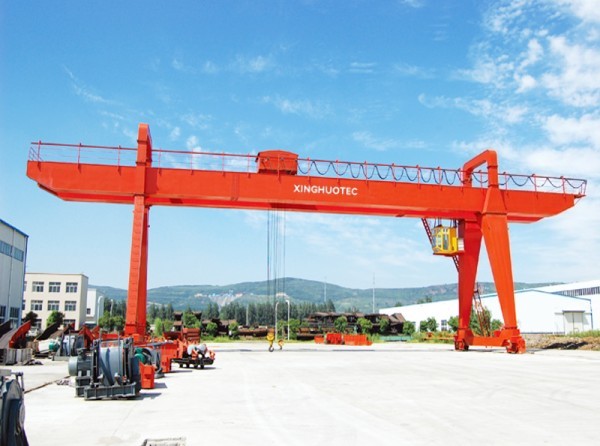

The double girder gantry crane is heavy-duty, high-efficiency outdoor lifting equipment with a rigid double main girder structure. It is widely applied in factories, construction sites, railway yards, ports and other places.
Our product line covers MG full gantry cranes, NMG European lightweight gantry cranes and BMG semi-gantry cranes for general industrial hoisting. For heavy components and port logistics applications, we also supply RTG rubber-tyred gantry cranes and RMG rail-mounted container gantry cranes.
Application Scenarios
Double girder gantry cranes are widely applicable to heavy-load, large-span and high-frequency lifting applications, covering almost all outdoor industries handling fields.They can be fitted with different spreaders (hooks, grabs, electromagnetic chucks, container spreaders) to meet diversified material handling requirements.
● Port & Logistics Terminals: Container loading and unloading, container stacking, bulk cargo (grain, coal, minerals) handling.
● Construction & Bridge Engineering: Steel structure hoisting, prefabricated component installation, foundation material handling.
● Heavy Industry & Manufacturing: Steel plants, machinery factories, manufacturing workshops, large workpiece turnover and installation.
● Shipbuilding Industry: Ship parts assembly, dock heavy-duty handling operations, super-large equipment installation.
● Energy & Chemical Industry: Power stations, chemical plants, new energy project equipment hoisting.
● Railway & Highway Engineering: Track beam hoisting, engineering vehicle maintenance, construction material transshipment.
Our Double Girder Gantry Crane Types & Models
Classified by structural configuration, travelling mode, industrial application and working duty grade, our double girder gantry cranes fall into five mainstream standard types, covering general industrial, European lightweight, space-restricted semi-gantry, rubber-tyred mobile and port container handling solutions. All models are manufactured in strict accordance with Chinese national standards and European FEM norms, and full customisation is available.

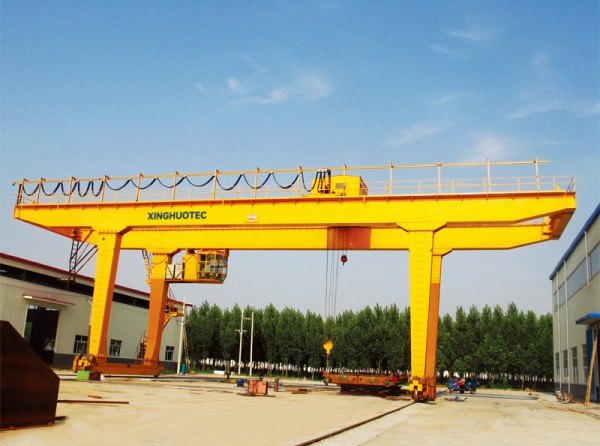

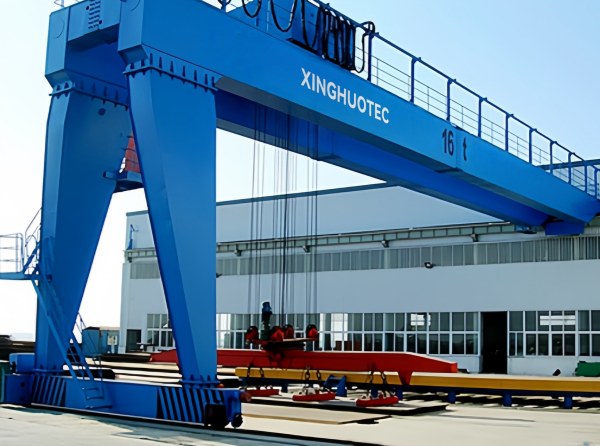

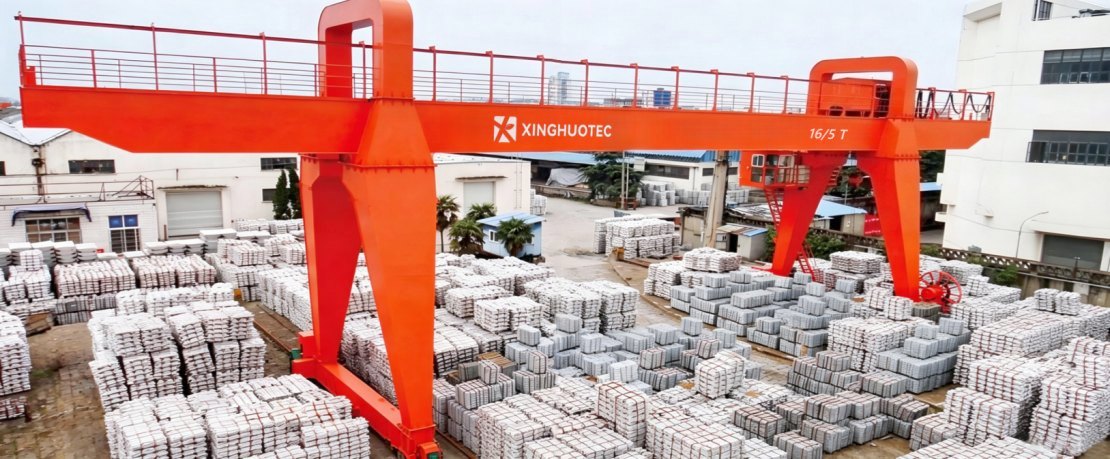

MG Series Double Girder Gantry Crane
Technical features: As the most widely used universal standard model in the industry, it features full box-type welded main girder, rigid overall structure, smooth operation and excellent wind resistance. It supports single and double cantilever customization. Lifting Capacity: 5t-500t, working duty class A5-A8.
Ideal for: Ports, material yards, factories, large construction projects and other conventional and heavy-duty high-frequency operation scenarios.

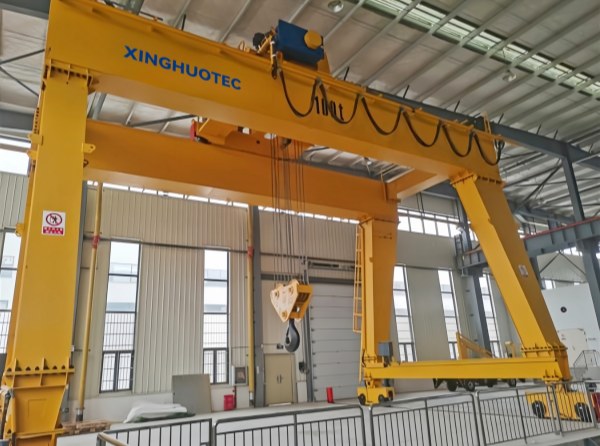

NMG European Standard Double Girder Gantry Crane
Technical features: NMG series are mainstream European-style double-girder full gantry cranes. They are designed strictly in accordance with FEM European crane standards. Compared with conventional domestic MG cranes, they feature a lightweight structure, low wheel load, compact dimensions, low energy consumption and low noise. Equipped with three-in-one frequency conversion drive and PLC intelligent control system, they operate smoothly and deliver high positioning accuracy. Lifting Capacity: 20t–500t, working duty class A5–A7.
Ideal for: High-precision and high-frequency lifting in workshops, stockyards and modern manufacturing plants.

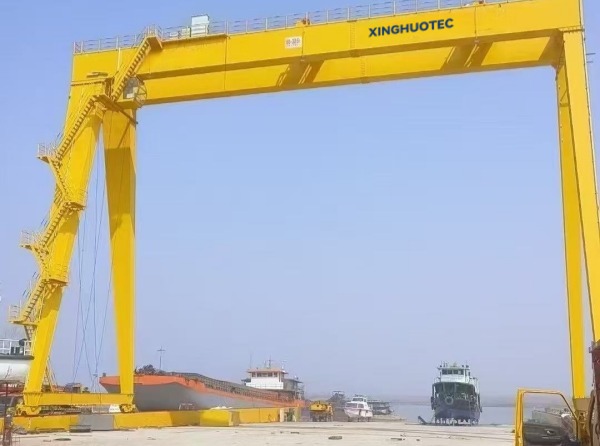

BMG Double Girder Semi-Gantry Crane
Technical features: The BMG series is the professional double girder semi-gantry crane model. One rigid support leg travels on the ground, while the other side is supported by the steel beams/rails of the factory building. It retains the high load capacity and stability of the double girder structure, saving factory space and construction costs. It is suitable for medium-and-heavy load operations in space-restricted working conditions. Lifting Capacity: 5t–32t, working duty class A5–A6.
Ideal for: Medium & heavy lifting in side workshop yards, factory edges and space-limited sites.

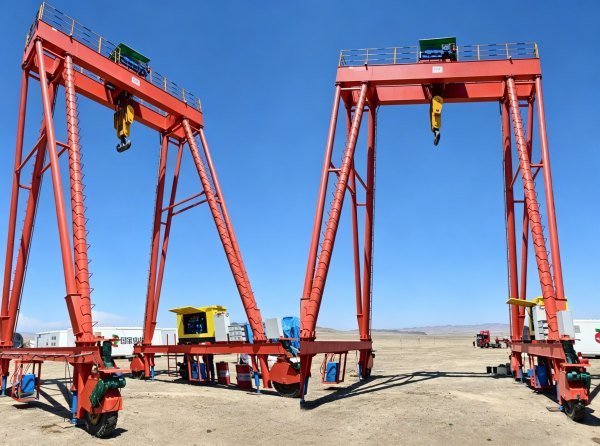

RTG Rubber Tyre Double Girder Gantry Crane
Technical features: The RTG double girder gantry crane is a trackless mobile gantry crane with full rubber tire traveling mechanism, no need for fixed ground rails, flexible and free on-site movement. It features superior terrain adaptability, no foundation installation requirements and flexible transition across multiple working areas. It is applicable to cement, gravel and uneven ground conditions. Lifting Capacity: 10t–300t, working duty class A5–A7.
Ideal for: Temporary construction, road and bridge engineering, wind power engineering, ports and docks,etc.

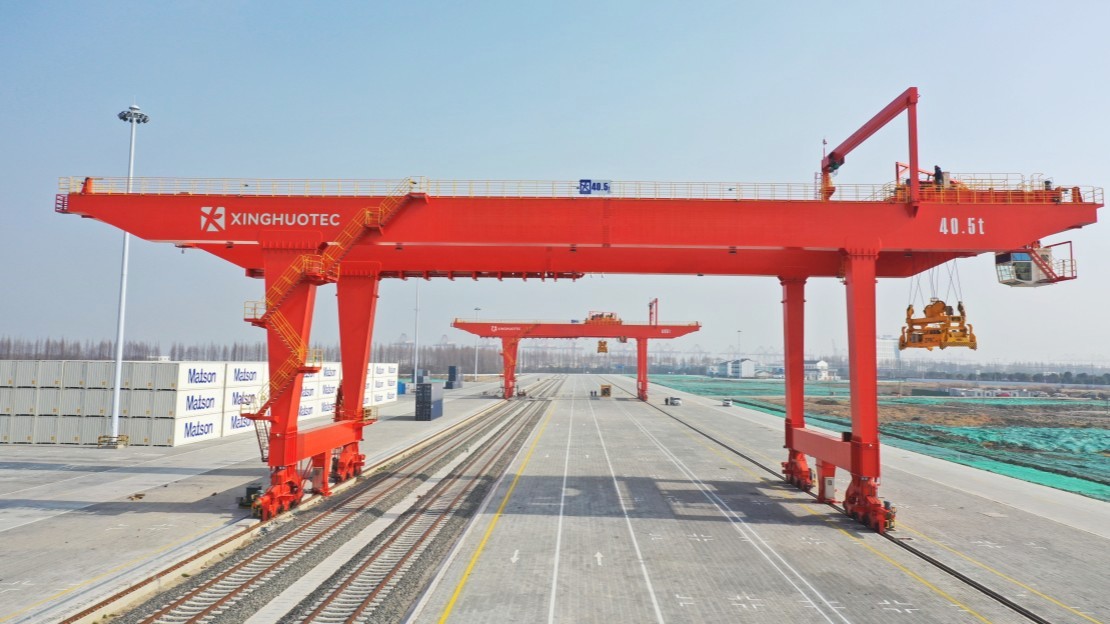

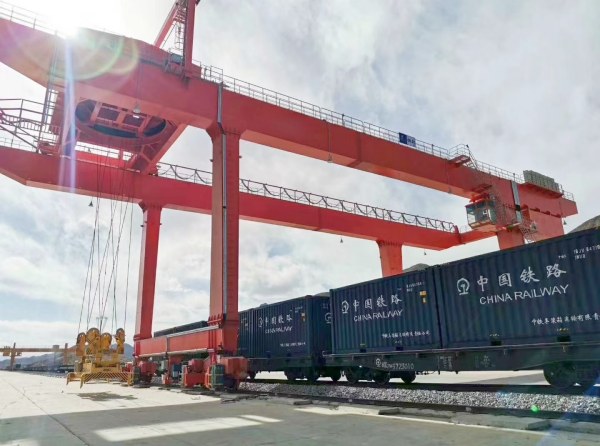

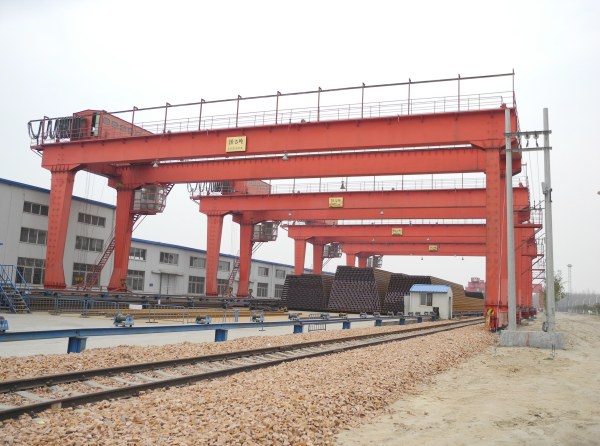

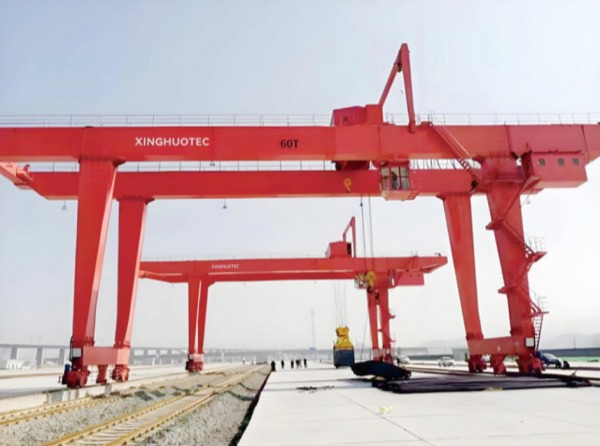

RMG Rail Mounted Double Girder Gantry Crane
Technical features: The RMG series is a professional rail-mounted double girder gantry crane specially designed for port container handling. It adopts a heavy-duty reinforced double girder structure, equipped with standard specialized container lifting devices, automatic alignment and container locking system, anti-sway devices, and advanced wind resistance system. It boasts a large span, high lifting capacity and reliable continuous operation performance. Lifting Capacity: 30t-50t, working duty class A7–A8.
Ideal for: Container terminals, large logistics ports, railway freight hubs and dedicated container yards.
Product Technical Parameters
Core Advantages of Double Girder Gantry Crane
Compared with single girder gantry cranes and ordinary lifting equipment, our double girder gantry cranes have comprehensive advantages in structure, performance, safety and cost-efficiency, becoming the preferred equipment for heavy-duty industrial lifting applications:
● Super High Load Capacity & Stability: It adopts double box-type main girder integral welding structure, uniform force distribution, maximum lifting capacity up to 500 tons. The rigid gantry leg structure effectively resists wind and vibration, ensuring stable operation during high-altitude heavy-load hoisting.
● Wide Adaptability & Full Customization: It covers 5 mainstream models to adapt to all working conditions including general industry, high-precision manufacturing, limited site, mobile operation, port container. It supports customized span, lifting height, load capacity and working speed. It can be equipped with anti-wind devices, rainproof covers, remote control systems and intelligent monitoring systems.
● High Efficiency & Energy Saving: Equipped with brand frequency conversion motor and deceleration systems, the crane enables smooth, impact-free start and stop with low noise and low power consumption. Support continuous high-frequency operation, greatly improving handling efficiency.
● Ultra-high Safety & Long Service Life: Equipped with complete safety protection devices: overload limiters, height limiters, travel limiters, anti-collision devices, wind-proof rail clamps and emergency stop functions. All key components adopt national standard high-strength materials, with anti-rust and anti-corrosion treatment, service life up to 15-20 years.
● Low Operation & Maintenance Cost: Featuring a modular assembly design, the crane has a simple structure and convenient daily maintenance. Standardized accessories are easy to replace, effectively reducing later operation and maintenance costs and downtime.
How to Choose the Right Single Girder Gantry Crane?
Please confirm the following core parameters and working conditions before selection:
● Confirm Lifting Weight: Calculate the maximum weight of the loads to be lifted, reserve a 10%-20% safety margin, and select the corresponding tonnage model, avoiding long-term overload operation.
● Confirm Span & Lifting Height: Measure the actual distance between two running rails (span) and the maximum required lifting height, considering site obstacle height.
● Confirm Working Frequency & Duty Grade: Select A3–A5 duty class for intermittent daily handling; choose A6–A8 heavy-duty class for 24-hour continuous high-intensity operations (ports, shipyards).
● Confirm Working Environment & Application: Fixed factory yard conventional hoisting choose MG; high-precision energy-saving manufacturing choose NMG; limited site choose BMG; frequent site relocation choose RTG; port container handling choose RMG; flammable and explosive environment choose explosion-proof model; super heavy hoisting choose special heavy-duty model.
● Confirm Control & Configuration: Conventional workshops adopt cab control; flexible site prefer wireless remote control; high-precision operation can be equipped with frequency conversion speed regulation.
● Confirm Custom Demands: Special span, ultra-high lifting height, explosion-proof, anti-corrosion and other special specifications are available for customisation.
Packaging & Transportation
We offer standardized delivery services for all series of cranes. Before shipment, we inspect main components, electric hoists/winch trolleys, electrical systems and all accessories according to packing lists to ensure completeness. Steel structures are treated to prevent rust and scratches, while precision electrical parts are packaged with shockproof, moisture-proof and dust-proof materials. Rainproof reinforcement measures are adopted for outdoor transportation. We monitor logistics in real time for on-time delivery and assist customers with on-site unpacking, inspection and handover.

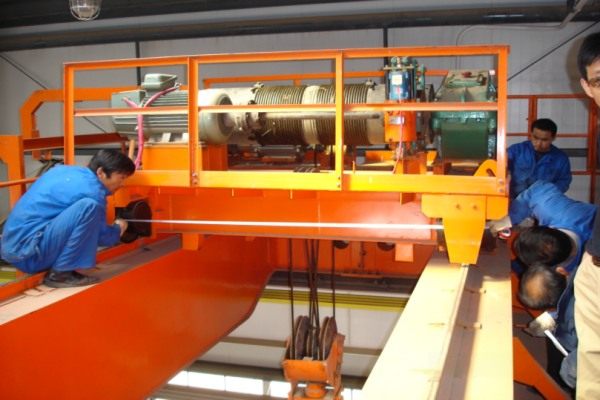

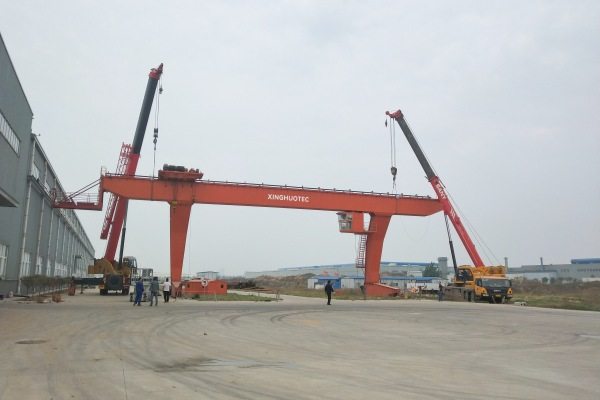

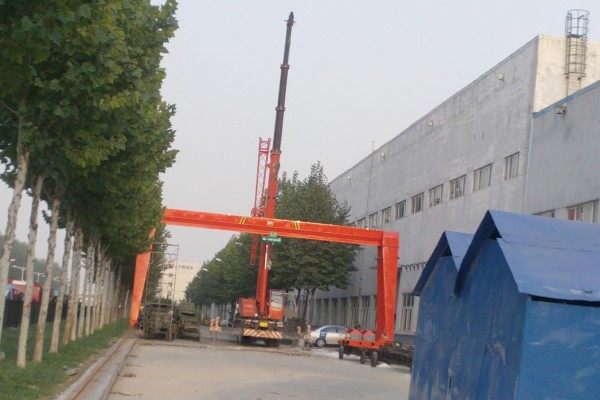

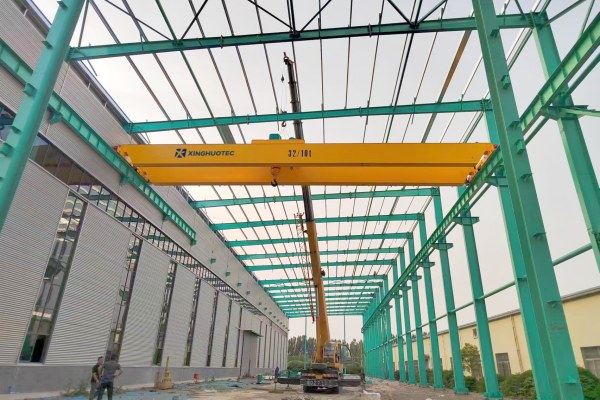

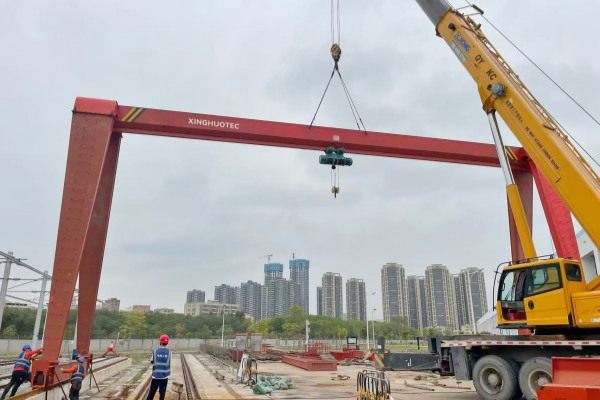

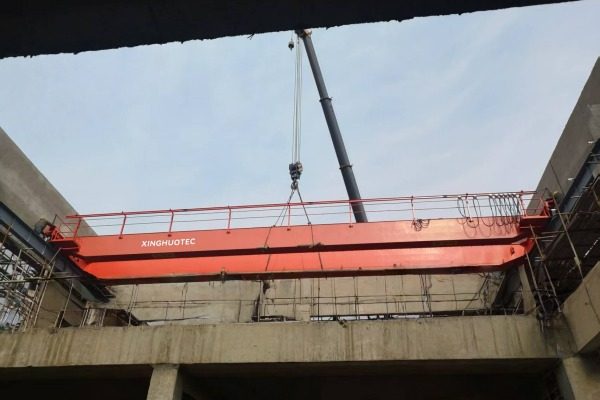

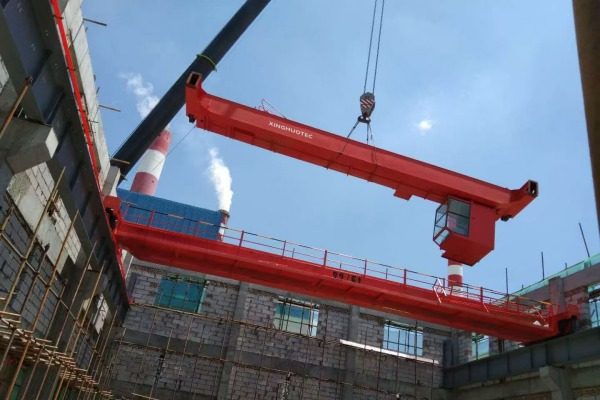

Installation Service Introduction
Our certified professional installation team provides standardized one-stop installation, commissioning and acceptance services in strict accordance with national codes and safety standards, ensuring compliant installation, stable operation and reliable performance of cranes.
Our services cover site surveys, construction plan formulation, track adjustment, beam assembly, hoist positioning, electrical wiring, safety device commissioning, overall calibration, no-load and loaded trial operation and final acceptance. We strictly control installation accuracy, standardize key procedures and implement full-process safety management to eliminate construction hazards.
After installation and commissioning, we conduct comprehensive performance and safety inspection to guarantee qualified lifting, traveling and braking functions. We provide operation and maintenance training, deliver complete technical and certification documents, assist with equipment inspection and filing for compliant operation, and supply long-term after-sales maintenance and technical support.
On-site Cooperation Requirements for Customers
● Site and Foundation Condition Cooperation: The customer shall complete the construction of crane beams, track foundations and embedded parts in accordance with drawings and national standards. Clean the construction site to ensure sufficient working space, and provide windproof, rainproof and drainage measures. Suspend construction in severe weather as required.
● Power Resource Supporting Cooperation: The customer shall provide stable 380V three-phase industrial power supply with qualified distribution box, leakage and overload protection near the working area to ensure uninterrupted power supply during installation, commissioning and trial operation, with dedicated personnel for power management.

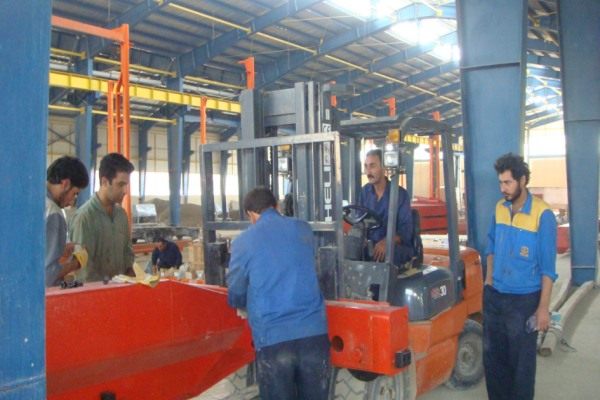

● Equipment Arrival and Hoisting Cooperation: Upon equipment arrival, the customer shall assign staff to cooperate with unpacking, inspection and handover. Prepare hoisting equipment such as truck cranes and forklifts, together with necessary tools and auxiliary labor to assist in unloading, handling and hoisting.
● On-site Safety and Construction Cooperation: The customer shall manage on-site safety, install safety barriers and warning signs, remove potential hazards and restrict unauthorized access. Cooperate with construction access procedures and safety briefings, assign on-site coordinators to resolve site and cross-operation issues and ensure valid working conditions.
● Acceptance and Training Cooperation: After commissioning, the customer shall arrange relevant personnel to cooperate with trial operation, testing and final acceptance. Participate in operation, maintenance and safety training to ensure standardized operation, and cooperate with equipment filing and annual inspection procedures.
Contact Us for Customized Solutions
We provide one-stop overhead crane solutions including free design, custom production, global shipping and full-cycle after-sales service. All products are strictly tested before delivery to ensure stable performance.
Send your workshop drawing & lifting demand to get free technical drawing & best quotation within 24 hours!
