Capacity: 20–250 t/h (Customizable)
Power: 5.5-18.5 kW (Customizable)
Product Overview
Sand Washer is designed to remove impurities, improve sand quality and achieve efficient cleaning and dewatering during aggregate processing.
During operation, raw sand enters the washing tank and is fully mixed with water under the action of the impeller or spiral blade. The continuous stirring and friction process removes clay, dust and other impurities attached to the surface of sand particles. Meanwhile, the water flow carries lightweight impurities away through the overflow outlet, while cleaned sand is discharged after washing and dewatering.
XINGHUOTEC provides two main types of sand washing equipment: Wheel Sand Washer and Spiral Sand Washer. The wheel type features simple structure, low water consumption and efficient sand recovery, while the spiral type provides stronger cleaning and grading performance for fine and coarse materials.
With reliable transmission systems, optimized sealing structures and durable components, the equipment delivers stable performance and is widely applied in sand plants, mining operations, construction material production and infrastructure projects.
Application Scenarios
● Aggregate Production & Manufactured Sand: Sand Washers are widely used in aggregate production lines to remove dust, clay and impurities from manufactured sand, improving the quality of final products.
● Mining Material Processing: The equipment helps clean and classify mineral materials before further processing, improving material utilization efficiency.
● Infrastructure Construction Materials: Clean and high-quality aggregates produced by sand washing equipment are widely used in highways, railways and building projects.
Different Types of Sand Washers
According to different working structures, XINGHUOTEC provides two main types of sand washing equipment: Wheel Sand Washer and Spiral Sand Washer, which are suitable for different material characteristics and production requirements.

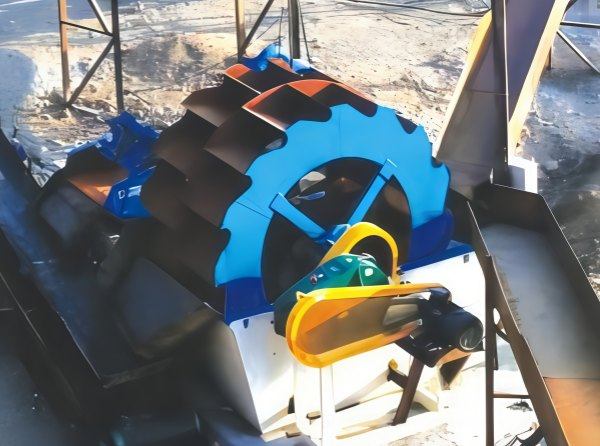

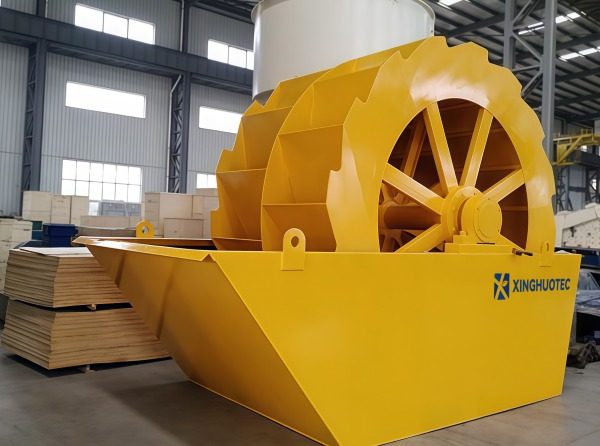

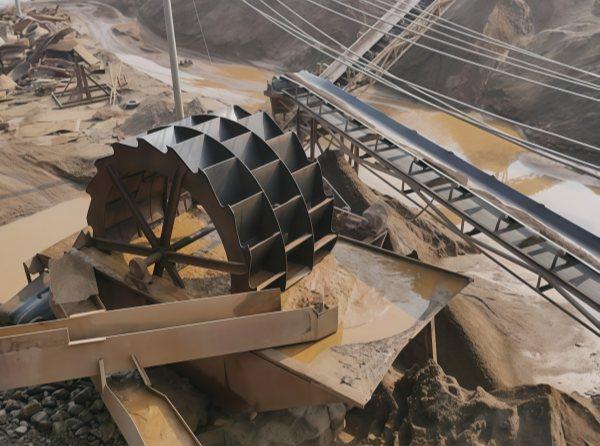

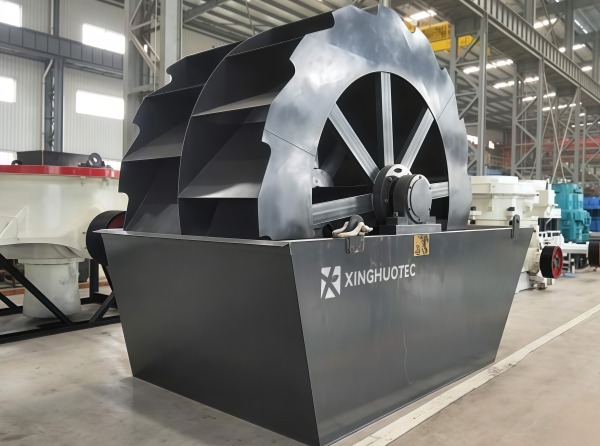

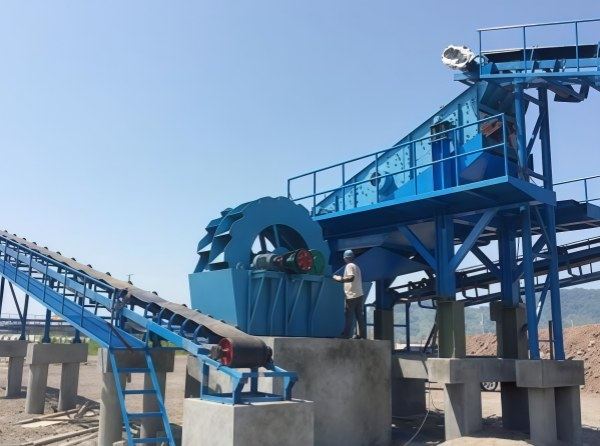

Wheel Sand Washer
Technical features:
Wheel Sand Washer is designed for efficient cleaning and recovery of sand and aggregate materials. It adopts a rotating wheel structure to remove clay, dust and impurities through continuous washing and stirring. With low water consumption, high sand recovery rate and simple maintenance, it provides reliable performance for various sand washing applications.
Ideal for:
Sand washing plants, aggregate production, gravel washing, manufactured sand processing and construction material production.

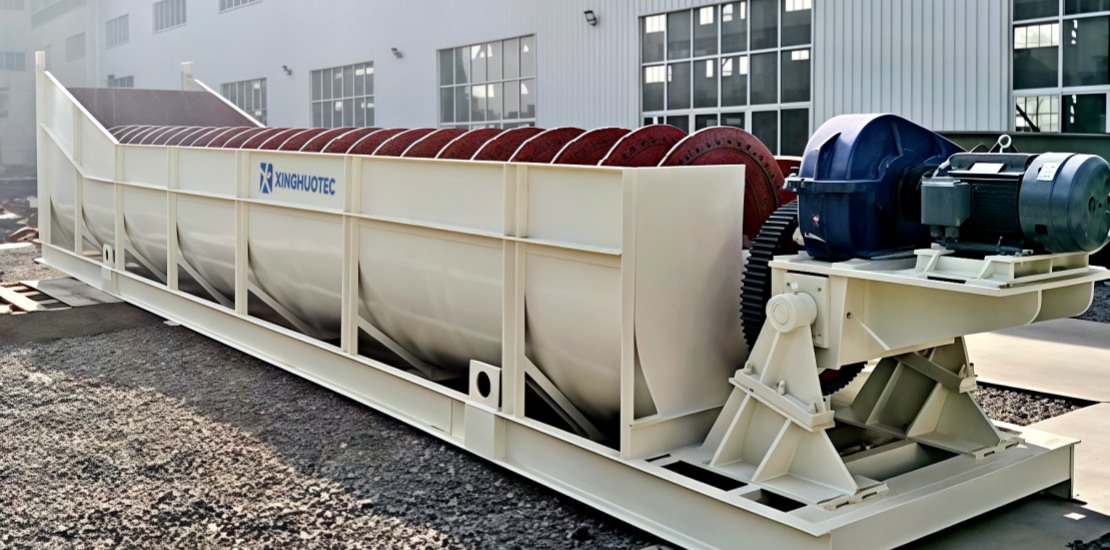

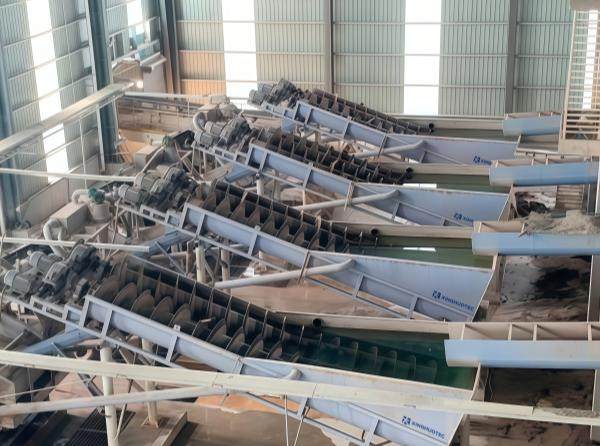

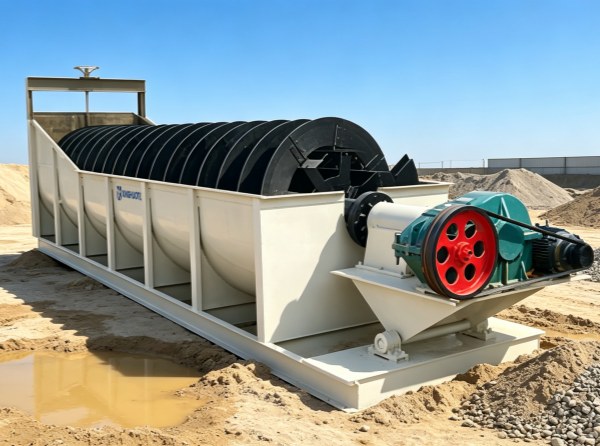

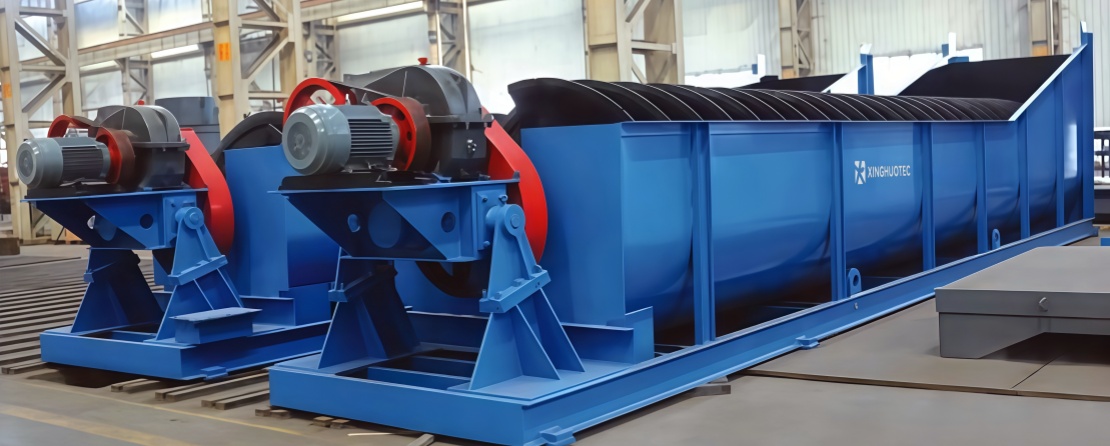

Spiral Sand Washer
Technical features:
Spiral Sand Washer is designed for washing, grading, dewatering fine and coarse sand materials. It adopts a spiral blade structure to provide strong cleaning performance and continuous material conveying. With reliable transmission, adjustable overflow control and stable operation, it is suitable for applications requiring high-quality sand production.
Ideal for:
Mining processing, fine sand washing, aggregate production lines, river sand cleaning and construction sand processing.
Working Principle
XINGHUOTEC Sand Washer uses the combined action of mechanical stirring and water flow to remove impurities from sand materials. During operation, the equipment continuously mixes and washes sand inside the tank, separating clay, dust and other unwanted particles from the surface of sand grains. Lightweight impurities are discharged with overflow water, while cleaned sand is collected after washing and dewatering.
Wheel Sand Washer
The motor drives the impeller wheel through the V-belt, reducer and gear transmission system. The rotating wheel continuously agitates and lifts sand materials in the washing tank. Through friction between particles and continuous water washing, impurities are removed, and clean sand is discharged after being lifted by the wheel.

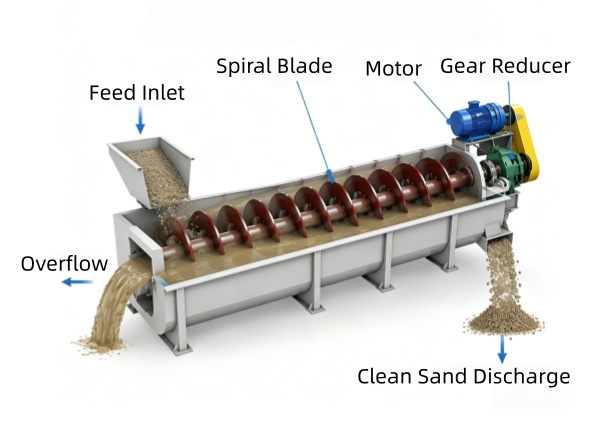

Spiral Sand Washer
The spiral blade rotates slowly under the drive of the motor, continuously stirring and pushing sand materials inside the tank. During this process, impurities are separated from the sand and discharged with overflow water, while cleaned materials are transported forward and discharged by the spiral blade.
Spiral Sand Washer vs Wheel Sand Washer
Features & Advantages
XINGHUOTEC Sand Washer combines efficient cleaning performance, reliable mechanical structure and low-maintenance design. It effectively removes impurities from sand materials while improving product quality, recovery rate and production efficiency. With different washing configurations available, the equipment can meet various requirements in aggregate processing and mining applications.
● Efficient Sand Cleaning & Impurity Removal: The optimized washing process enables continuous stirring, friction and water separation, effectively removing clay, dust and other impurities attached to sand particles. It improves the cleanliness and quality of finished sand products.
● High Sand Recovery Rate: The reasonable structural design helps reduce the loss of fine sand during washing. The equipment can recover valuable sand materials efficiently while maintaining stable washing performance.
● Excellent Washing & Dewatering Performance: The equipment integrates washing and dewatering functions, helping reduce moisture content in finished materials and improving the quality of final sand products.
● Reliable Transmission System: The optimized drive system ensures smooth operation and stable power transmission. Durable components are designed for continuous working conditions with reduced maintenance requirements.
● Low Maintenance & Long Service Life: The simple structure, reliable sealing design and wear-resistant components reduce equipment downtime and extend service life under harsh working conditions.
Technical Parameters
FAQ About Sand Washers
Q: What is a Sand Washer used for?
A: A Sand Washer is mainly used to remove clay, dust, stone powder and other impurities from sand and aggregate materials. It improves the cleanliness, quality and commercial value of finished sand products. It is widely used in sand plants, quarrying, mining, aggregate production and construction material processing.
Q: What is the difference between Wheel Sand Washer and Spiral Sand Washer?
A: Wheel Sand Washer uses a rotating impeller wheel to wash and lift sand materials. It features simple structure, low water consumption, high sand recovery rate and easy maintenance. Spiral Sand Washer uses a rotating spiral blade to stir, wash and transport materials. It provides stronger cleaning and grading performance and is suitable for applications requiring higher washing efficiency.
Q: Which type of Sand Washer is suitable for fine sand?
A: Spiral Sand Washer is generally more suitable for fine sand processing because it provides stronger washing, grading and conveying performance. The final selection should be based on material characteristics, impurity content and production requirements.
Q: Does Sand Washer reduce sand loss?
A: Yes. Optimized washing structures help recover useful sand particles and reduce the loss of fine materials during the washing process. Proper equipment selection and operation adjustment can further improve sand recovery efficiency.
Q: What factors should be considered when selecting a Sand Washer?
A: The selection depends on:
● Material type and characteristics
● Sand size and impurity content
● Required processing capacity
● Final product requirements
● Installation conditions
XINGHUOTEC can recommend suitable washing equipment according to specific project requirements.
Q: Can Sand Washer perform dewatering function?
A: Yes. During the washing process, the equipment can remove part of the water from cleaned materials. For applications requiring lower moisture content, it can also work together with dewatering screens or other drying equipment.
