Output Capacity: 50–500 t/h （Customizable）
Max. Feeding Size: 750 mm（Customizable）
Product Overview

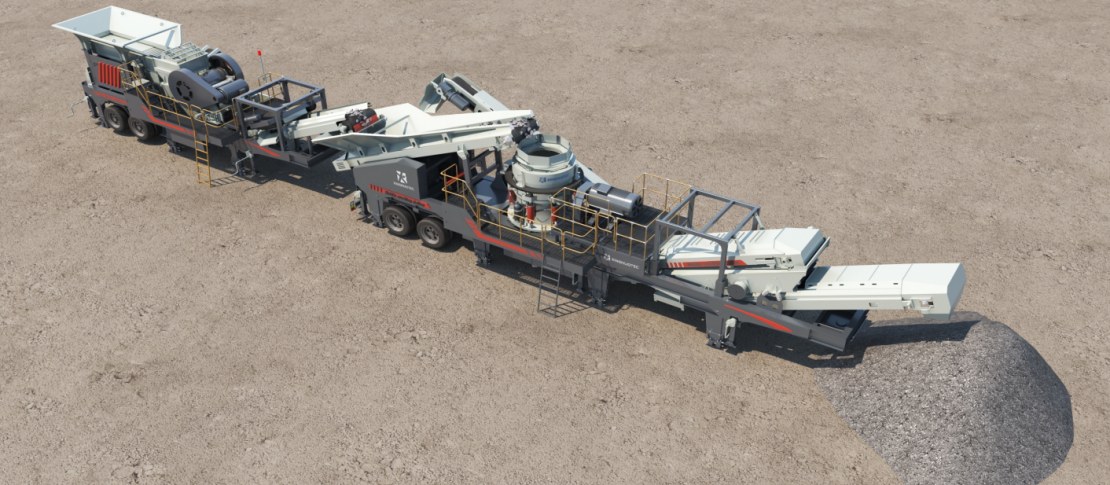

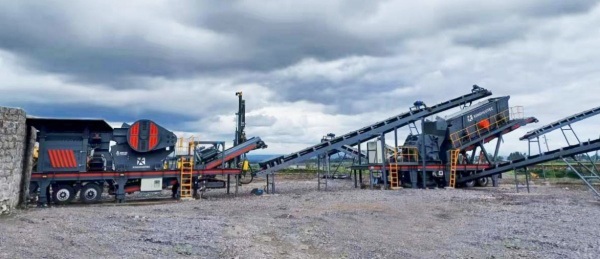

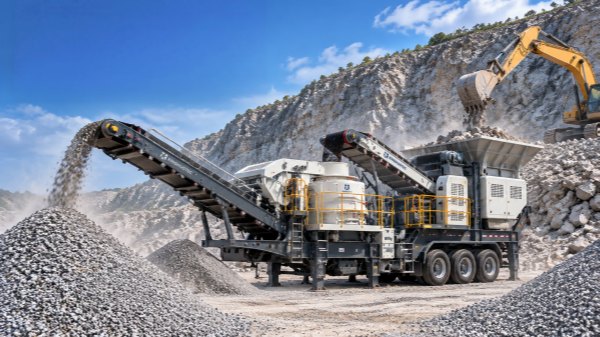

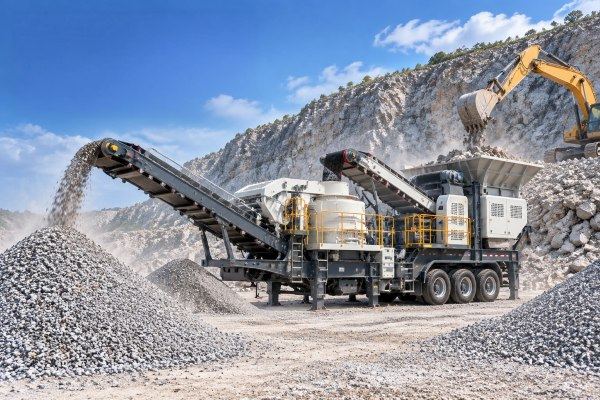

Wheeled mobile crushing plant is a trailer‑mounted, fully integrated crushing and screening solution. It integrates feeding, crushing, screening and conveying on a standard semi‑trailer chassis, requiring no fixed foundation. Featuring flexible mobility and highway transportability, it is widely applicable to temporary and frequently relocated crushing projects.
Featuring a wide range of configuration options, this plant delivers capacities from 50 t/h to 500 t/h. It is suitable for processing various hard rocks, soft rocks and C&D waste. Custom‑tailored production configurations are available for different feed materials to meet diverse customer requirements.
Application Fields
Mobile crushing plants are widely applied in stone quarries, mines, metallurgy, building‑material processing, highway construction, railways, water conservancy, chemical industry and other related industrial sectors. They are primarily deployed for crushing, screening, shaping, sand production and C&D waste recycling, and excel especially for projects requiring frequent relocation of work sites.
Quarry Aggregate Production
Suitable for granite, basalt, limestone, river stone and other hard stone crushing.

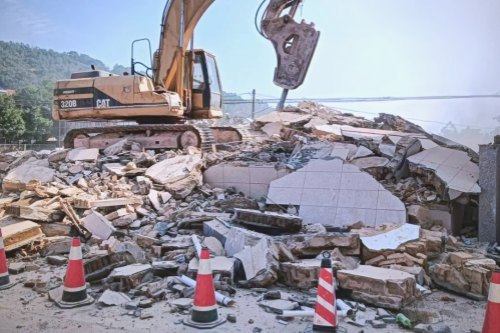

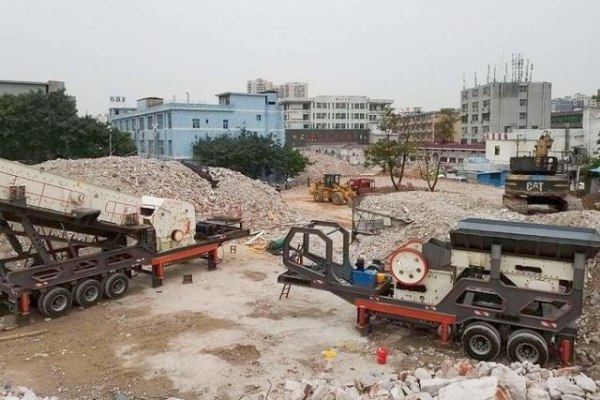

Construction Waste Recycling
Crush and screen waste concrete, brick and asphalt for reusable recycled aggregate.
Road & Highway Construction
On‑site crushing to produce road base materials and finished aggregate.
This mobile crushing plant can process various kinds of raw materials such as river pebbles, granite, basalt, limestone, quartz stone, diabase,iron ore, silver ore, gold ore, copper ore, as well as C&D waste for aggregate production.
River Pebble
Granite
Basalt
Limestone
Quartz Stone
C&D Waste
Main Equipment Configurations
Our main equipment configurations cover a full range of processing machinery for aggregate and mining projects, including the Coarse Crushing Series, Medium and Fine Crushing Screening Series, Combined Mobile Crushing & Screening Plant, as well as Mobile Vibrating Screen & Belt Conveyor.
From primary crushing to final screening and material transportation, these well-matched equipment solutions deliver reliable performance for stationary and mobile production lines.
Coarse Crushing Series
Technical features:

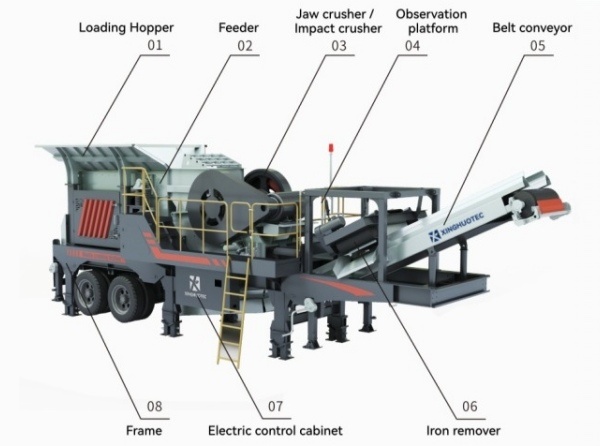

The primary coarse-crushing mobile crushing station is designed for the first-stage crushing of large-size raw rocks. Equipped with jaw crusher or coarse-crushing impact crusher, it efficiently processes large-block raw materials from quarries, open-pit mines and C&D waste stockpiles. Built-in feeder, primary crusher, belt conveyor and electric control cabinet are assembled on tire-type mobile frame, enabling fast site transfer without complex installation.
Ideal for:
Mainly handle hard & medium-hard rock and C&D waste, output coarse-crushed materials for subsequent secondary crushing.

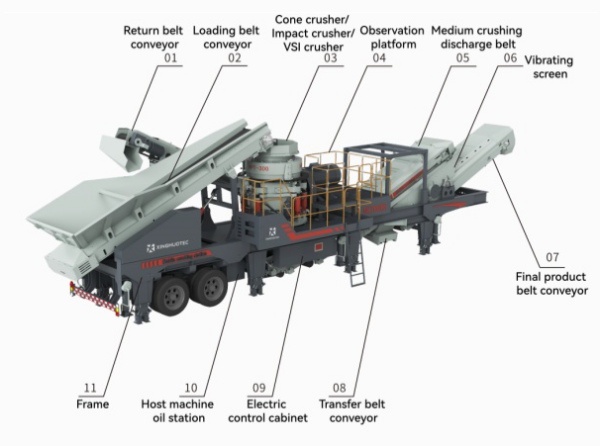

Medium and Fine Crushing Screening Series
Technical features:
The Medium & Fine-Crushing Screening Series Mobile Crushing Station undertakes secondary & tertiary crushing and screening tasks. It can be eqquipped with a cone, impact, VSI crusher, vibrating screen and complete conveyor system. Closed-loop crushing by returning over-size materials. Tire-mounted design for fast relocation without complicated installation.
Ideal for:
Produces multi-grade finished aggregates and manufactured sand for quarry, mine and construction waste recycling projects.

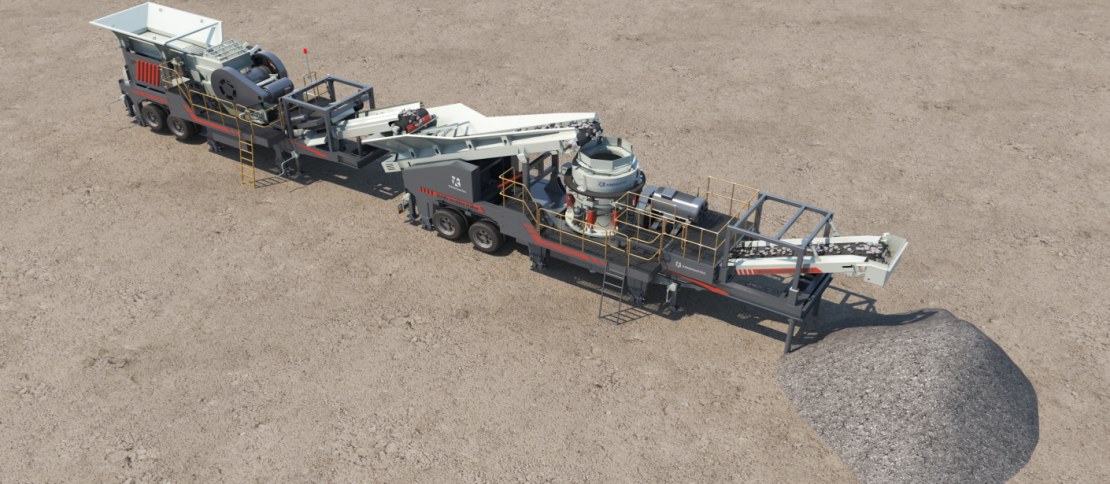

Combined Mobile Crushing & Screening Plant
Technical features:

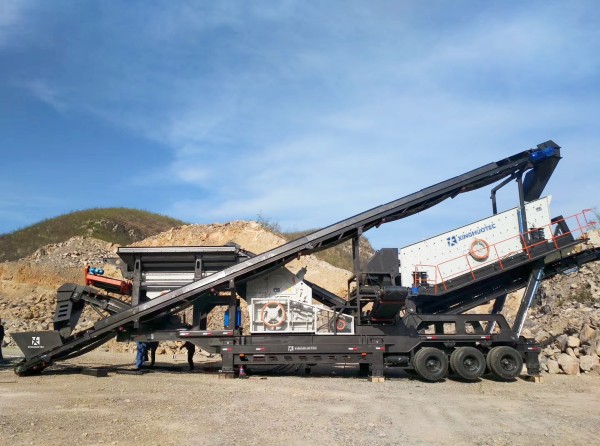

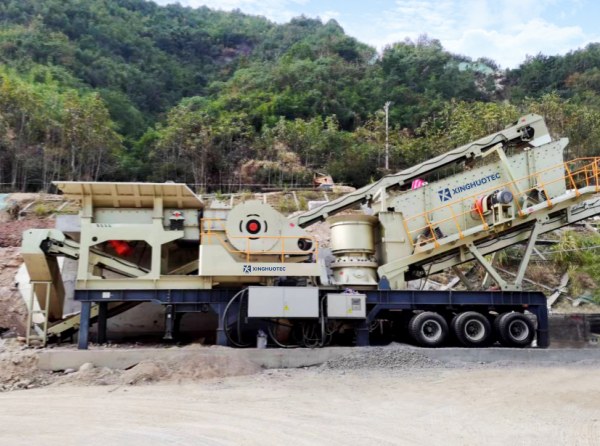

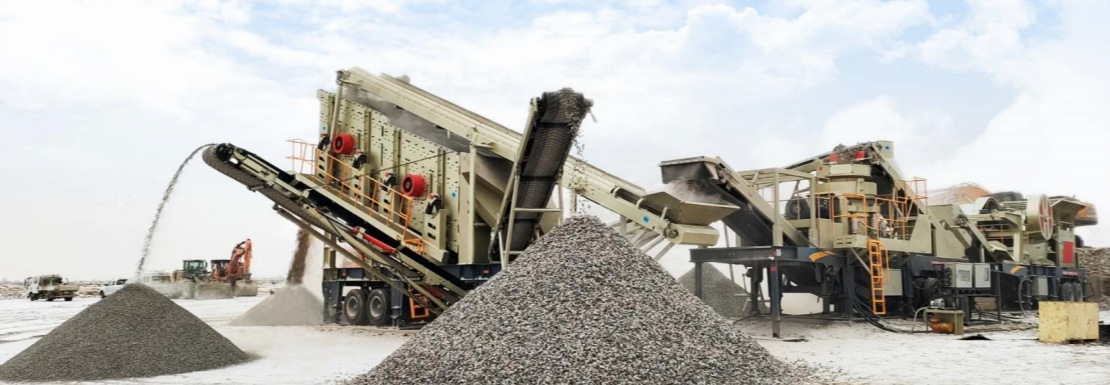

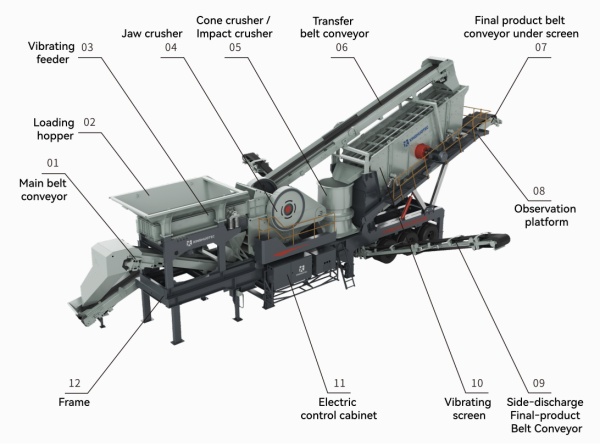

Combined Mobile Crushing & Screening Plant integrates crushing, screening and conveying on one mobile chassis, supports flexible configuration of jaw, cone, impact or VSI crushers. Realize closed-loop crushing, multi-grade finished aggregates output. It can produce multiple sizes of finished aggregates in one pass, covering coarse stones, medium-fine aggregates and manufactured sand.
Ideal for:
Quarry aggregate production, mine ore processing, construction waste recycling, highway and railway infrastructure projects.

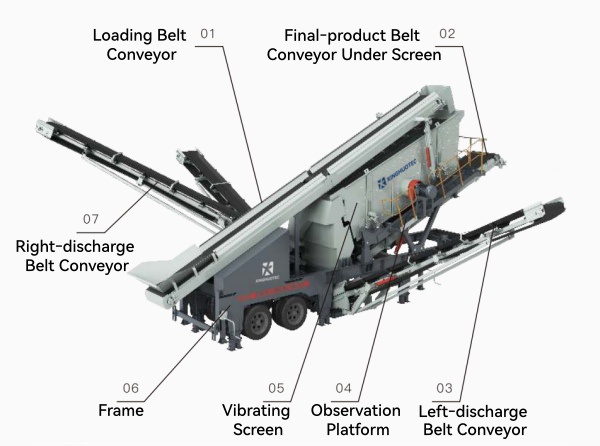

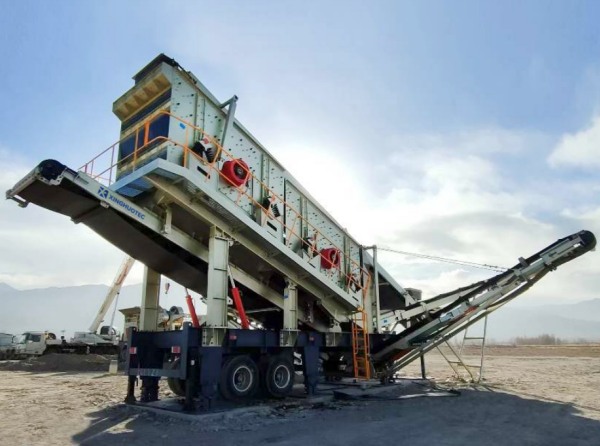

Mobile Vibrating Screen & Belt Conveyor
Technical features:
Mobile Vibrating Screen & Belt Conveyor is a mobile integrated screening-conveying unit. It features compact layout, flexible site transfer, multi-size material classification and stable material conveying. It can work independently or form a complete crushing-screening production line together with jaw crushers, impact crushers and cone crushers.
Ideal for:
Aggregate processing, quarrying, mining and construction waste recycling.

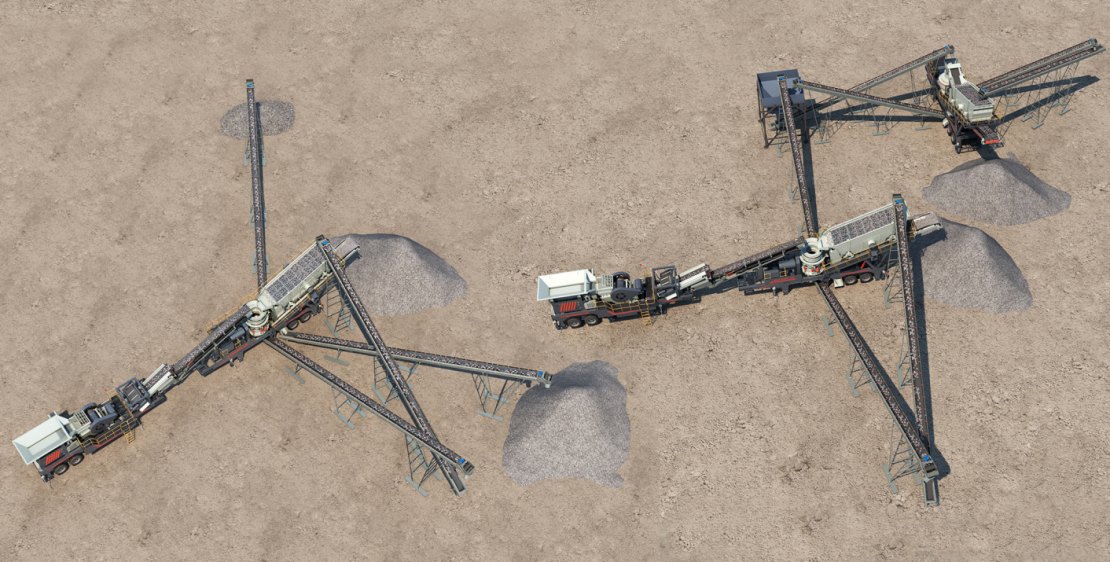

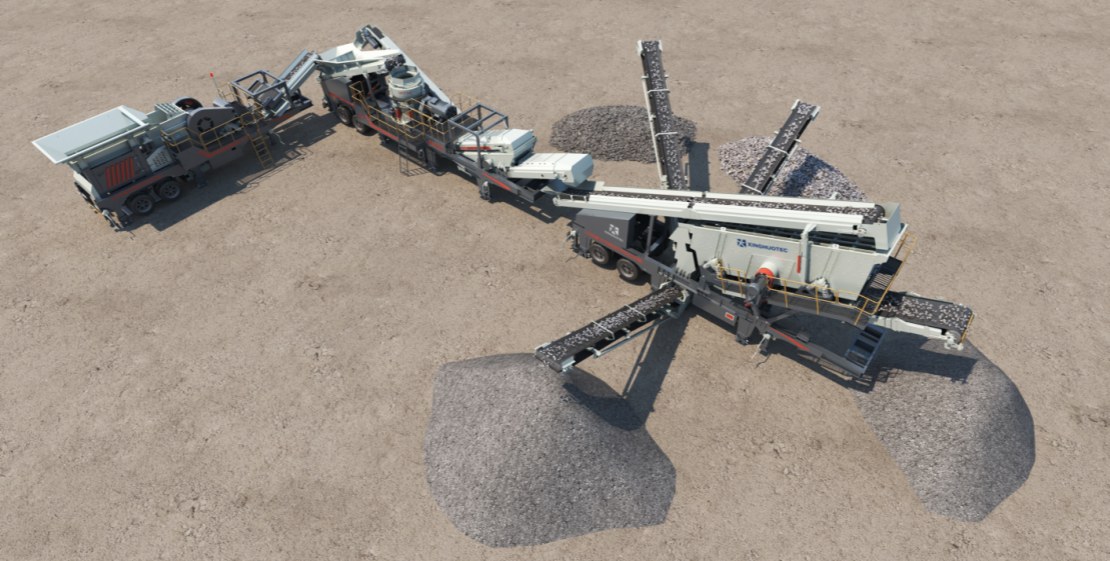

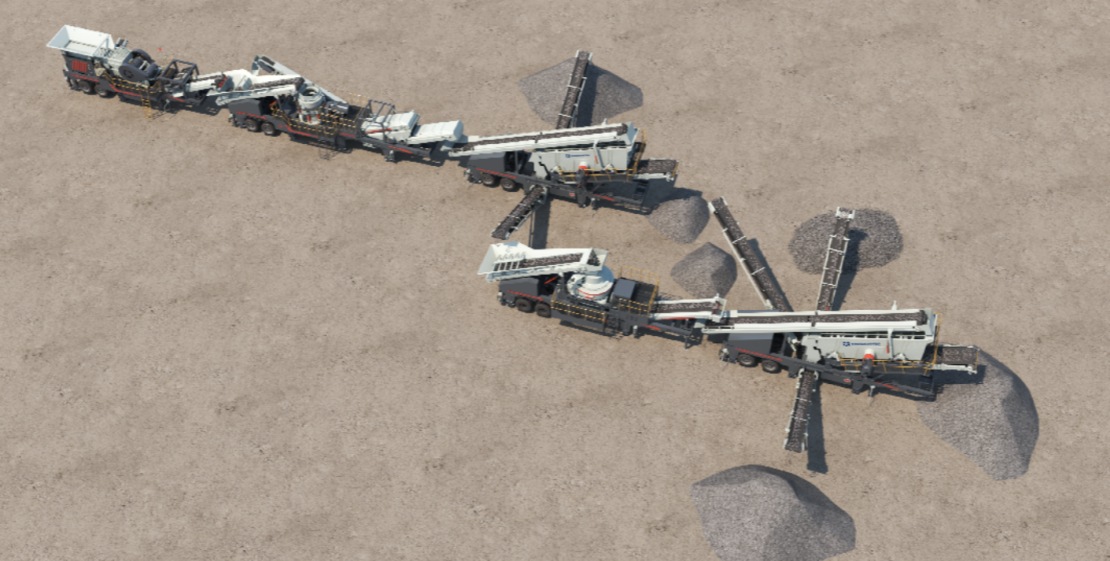

Typical Production-Line Configurations

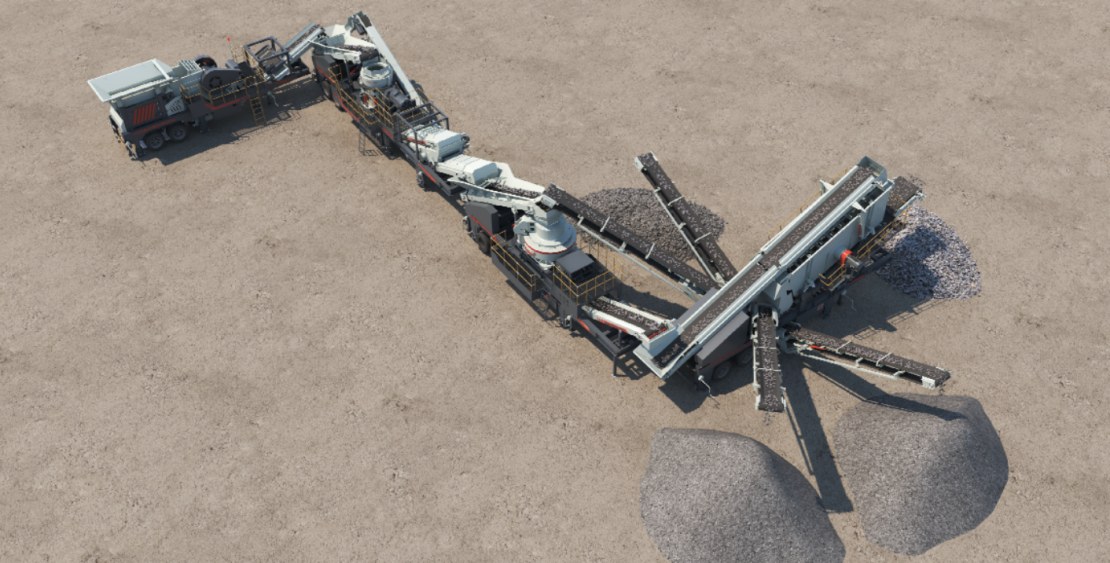

The following are typical production‑line configurations tailored for different raw materials, capacity requirements and screening demands. Each configuration delivers a complete equipment matching solution for aggregate crushing or sand‑making projects.
Layout Solution: Primary crushing plant + Secondary crushing plant without screening unit.
Finished Products: Only 1 output fraction, 95% material < 40 mm.
Layout Solution: Primary crushing plant + Secondary crushing plant with screening unit.
Finished Products: Only 1 output fraction, 100% passes required size.
Layout Solution: Primary crushing plant + Secondary crushing plant + Extra stationary belt conveyor module + Screening plant.
Finished Products: 2‑3 output fractions.
Layout Solution: Primary crushing plant + Secondary crushing plant with screening unit + Extra stationary belt conveyor module or Primary crushing plant + Secondary crushing plant with screening unit + Tertiary crushing plant with screening unit + Extra stationary belt conveyor module.
Finished Products: 2‑3 output fractions.
Layout Solution: Primary crushing plant + Secondary crushing plant with screening unit + Screening plant.
Finished Products: 3‑4 output fractions.
Layout Solution: Primary crushing plant + Secondary crushing plant + Tertiary crushing plant with screening unit + Screening plant.
Finished Products: 3‑4 output fractions.
Layout Solution: Primary crushing plant + Secondary crushing plant with screening unit + Tertiary crushing plant + Screening plant.
Finished Products: 3‑4 output fractions.
Layout Solution: Primary crushing plant + Secondary crushing plant with screening unit + Screening plant + Tertiary crushing plant + Screening plant.
Finished Products: 6‑7 output fractions.
Core Advantages of Our Wheeled Mobile Crushing Plant
● High Mobility & Road Transportable: The wheeled trailer design allows direct towing on public roads without special transport vehicles, greatly reducing relocation time and cost.
● No Foundation Installation: Integrated modular design requires no concrete foundation. The plant can be put into production immediately after arriving at the site.
● Lower Investment & Maintenance Cost: Compared with tracked mobile crusher, wheeled type has lower purchase cost, simpler structure and lower daily maintenance cost.
● Flexible Configuration Combination: Support jaw, impact and cone crusher modules to meet coarse, medium and fine crushing demands.
● Complete Set & High Efficiency: Equipped with feeder, screen and conveyor to form a fully automatic closed-loop crushing system.
Technical Parameters
All models support customized configuration according to site conditions.
Wheeled VS Tracked Mobile Crushing Plants
Wheeled Mobile Crushing Plant

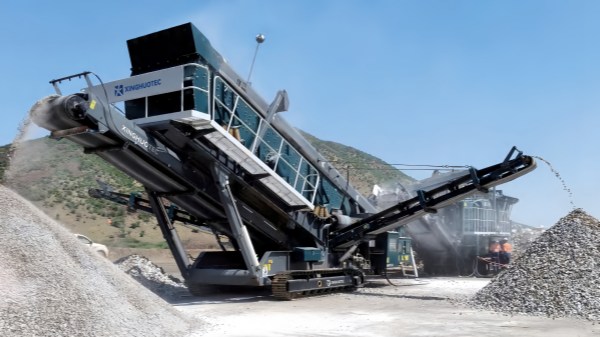

Tracked Mobile Crushing Plant
Comparison between wheeled and crawler mobile crushing plants:
If you frequently move between different cities via highway, wheeled type is your priority. If your site is mountainous, muddy with poor road condition, choose crawler model.

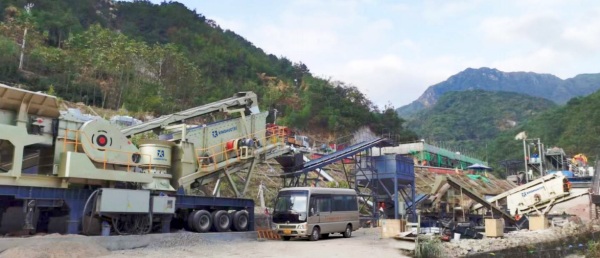

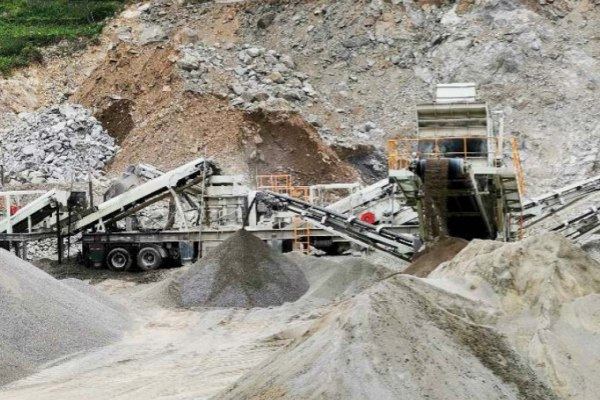

Global Project Cases

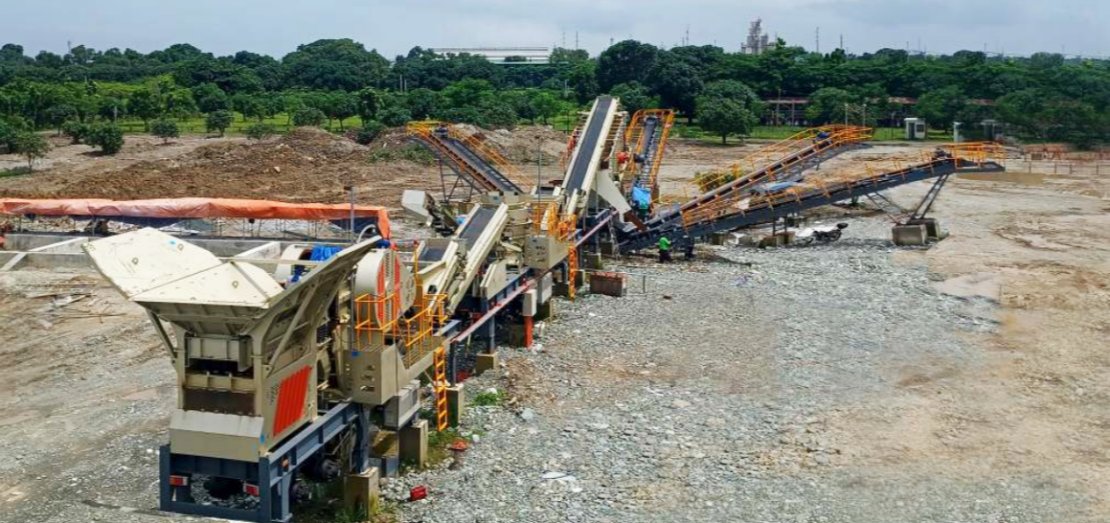

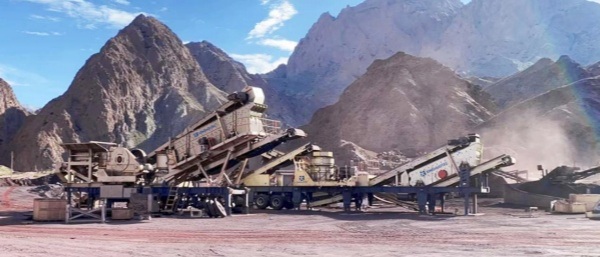

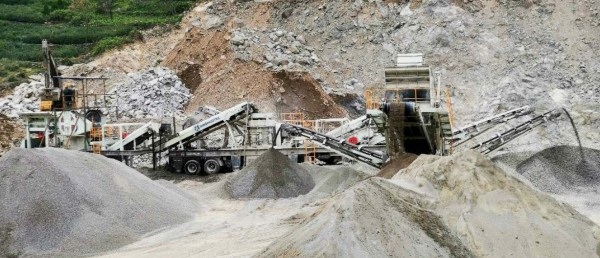

We have delivered a large number of wheeled mobile crushing plants for aggregate production and construction waste recycling projects in Kenya, Tanzania, Philippines, Uzbekistan and other Asian, African and Latin American countries.
