Jib Crane

›

‹

  • Jib Crane
  • Jib Crane

›

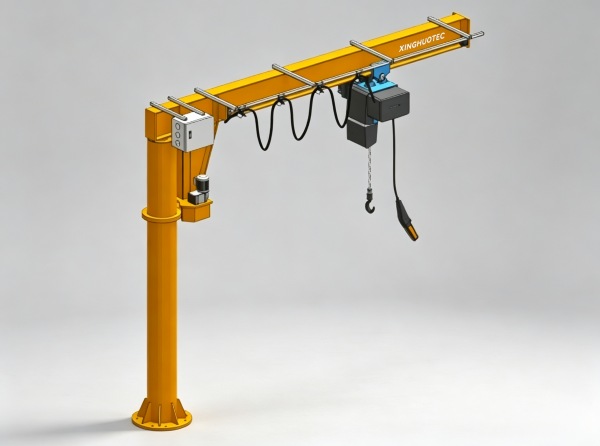

Jib Crane
Jib cranes are a new generation of lightweight lifting equipment engineered for modern production lines. Matched with highly reliable electric hoists, they are ideal for short-distance, frequent and intensive material handling operations. They feature high working efficiency, excellent energy-saving, compact footprint, simple operation and easy maintenance.
Lifting Capacity: 0.25–10 tons (Customizable)
Jib Length: 1m–7 m (Customizable)
Lifting Height: 2m–9 m (Customizable)
WhatsApp：+86 138 3856 8849
Email：sales@xinghuotec.com
Get A quote

Product Overview

The jib crane is lightweight workstation-specific lifting machinery. Mounted on columns or walls, it delivers 180° or 360° slewing functionality. Equipped with an electric hoist for vertical load lifting, it boasts a compact footprint and ultra-flexible operation.

It is widely applied in machine processing, assembly line work and small-parts warehouse handling, with options for manual or motorized slewing plus single and dual-speed lifting. As auxiliary lifting gear, it perfectly complements overhead and gantry cranes.

Jib-Crane3

Application Scenarios

● Machining Workshop: Loading & unloading workpieces, mold lifting

● Automatic Assembly Lines: Component transportation, tooling replacement

● Hardware & Steel Structure Factories: Small workpiece welding transfer

● Auto & Equipment Repair Shops: Motor, gearbox disassembly & lifting

● Small Warehouse & Logistics Packing Area: Light goods stacking

● Custom Special Versions: Explosion-proof jib cranes for chemical & paint workshops; anti-corrosion models for humid outdoor environments

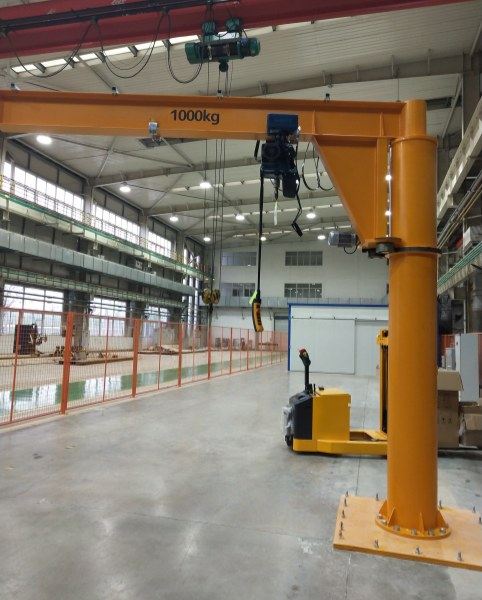

Jib-Crane4
Jib-Crane5

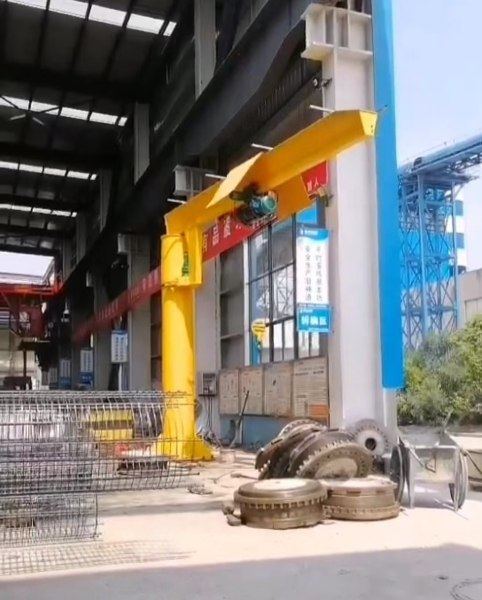

Jib-Crane6

Our Jib Crane Types & Models

Jib-Crane12

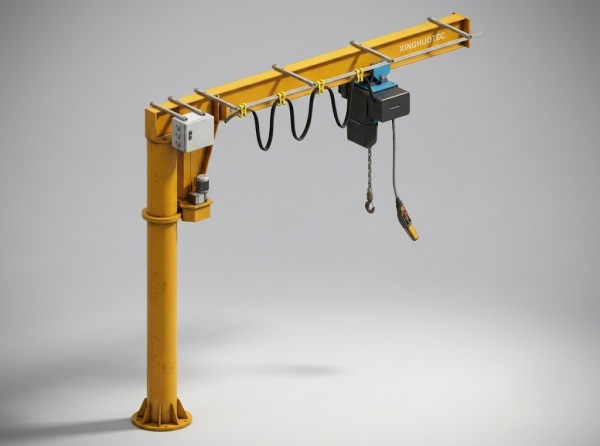

Column Jib Crane

Column jib cranes are floor-mounted with full 360° slewing, featuring compact layout and flexible operation with manual or motorized rotation available.

Get A Quote
Jib-Crane11

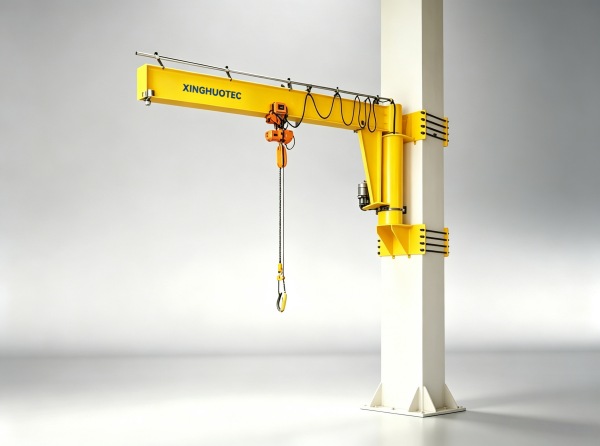

Wall Mounted Jib Crane

Wall-mounted jib cranes are installed on workshop walls with a 180° slewing range. They require no supporting columns and fit perfectly alongside wall-mounted assembly lines.

Get A Quote

Product Technical Parameters

Parameter

Specification

Rated Lifting Capacity

0.25 Ton – 10 Tons (Customizable)

Effective Jib Length

1m – 7m (Customizable)

Slewing Angle

360° Electric / Manual Slewing

Lifting Height

2m – 9m (Customizable)

Supporting Hoist

Electric Chain Hoist / Wire Rope Hoist

Working Class

A3-A5 Light Duty Workshop


Core Advantages of Jib Crane

Full Workstation Coverage with Flexible Slewing



Column jib cranes feature 360° unrestricted slewing, while wall-mounted models offer 180° directional rotation. Both precisely cover single-operator working zones without requiring large travelling trolley mechanisms.



Compact Footprint & Maximized Workshop Space Utilization



No rail laying is required. The cranes are simply mounted on columns or walls without occupying ground passageways, making them ideal for narrow workshops, machine tools and assembly line stations.



Low Cost, Quick Installation & Easy Maintenance



The whole machine adopts a lightweight structure for short installation cycles. All spare parts are standardized. Hoists and slewing bearing can be replaced effortlessly, greatly reducing maintenance costs compared with large cranes.



Diverse Configurations & High Customization Flexibility



Customizable parameters include lifting capacity, jib length, slewing mode and lifting speed. Special customized versions such as explosion-proof, anti-corrosion and low-headroom types are available to fit various working conditions.




How to Choose the Right Jib Crane?

Please confirm the following core parameters and working conditions before selection:

● Rated Lifting Capacity: Confirm your maximum lifting load and reserve a 20% safety margin; overloading is strictly prohibited.

● Jib Outreach & Lifting Height: Measure the required jib outreach and maximum lifting height at your workstation.

● Crane Type Selection Based on Workshop Layout: Select column jib cranes if you have sufficient floor space; opt for wall-mounted models when wall mounting positions are available.

● Working Environment Matching: Standard units are suitable for regular indoor application. Custom explosion-proof, anti-corrosion and low-headroom versions are available for special operating conditions.

● Slewing Requirement: 180° slewing for single fixed workstations; motorized 360° slewing for full-area coverage.

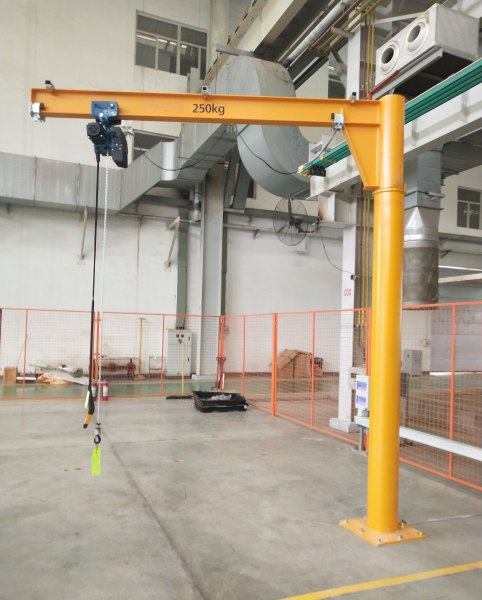

Jib-Crane7
Jib-Crane8

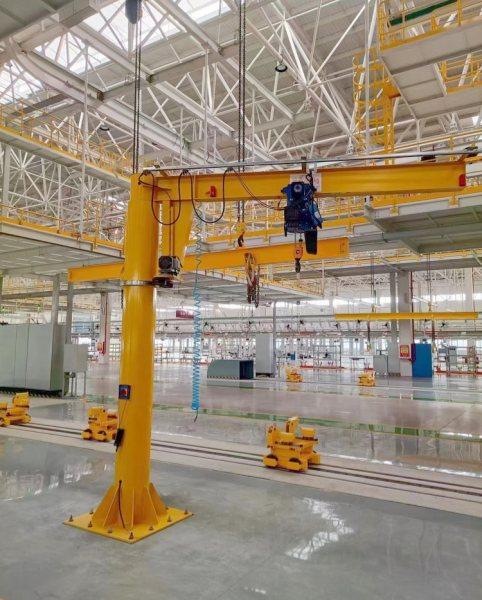

Jib-Crane9

FAQs

Q: Can jib cranes be used together with double girder gantry cranes and overhead cranes?

A: Yes. As auxiliary workstation lifting machinery, jib cranes work with large main cranes to handle small workpieces with high precision, boosting overall workshop operating efficiency.

Q: What is your MOQ and production lead time?

A: Standard models are in stock and can be shipped within 7 days. Custom-sized and explosion-proof units require a production lead time of 15 to 20 working days.

Q: Does this crane come with export certifications?

A: The complete crane is CE certified, and the matching electric hoists hold CE and ISO safety certificates. All documentation satisfies customs clearance requirements for Europe, the United States, Southeast Asia and other global markets.

Q: Are extra accessories required for outdoor installation?

A: Yes. Outdoor-duty jib cranes require rainproof motors, anti-corrosion coatings and anti-rust bearings. We can supply fully customized outdoor special jib cranes upon request.

Contact Us for Customized Solutions

We provide one-stop crane solutions including free design, custom production, global shipping and full-cycle after-sales service. All products are strictly tested before delivery to ensure stable performance.

Send your workshop drawing & lifting demand to get free technical drawing & best quotation within 24 hours!
