Cutting range: 3m*13m / 5m*26m (Customizable)
Laser power: 3000W-60000W (Optional)
X/Y Max Speed: 100m/min
Position Accuracy: ±0.03mm/m

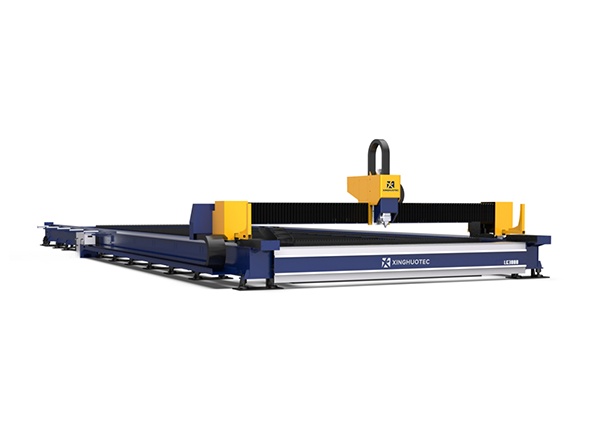

Product Overview

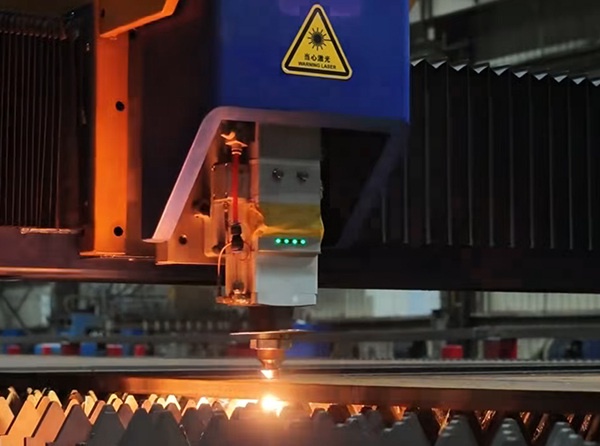

The Linear Rail Gantry Laser Cutting Machine is high-precision, high-efficiency metal cutting equipment integrating gantry structure and linear rail transmission technology. It is specially designed for large-format, high-precision cutting of metal materials, and is widely used in various industrial fields such as sheet metal processing, automobile manufacturing, shipbuilding, construction machinery, and precision parts processing. As an important export model of laser cutting machines, it has won wide recognition in the global market due to its stable performance, excellent cutting quality and high cost-effectiveness, and is one of China's core laser equipment export products.
Application Scenarios
The Linear Rail Gantry Laser Cutting Machine is widely used in metal processing and manufacturing industries, including but not limited to:
● Sheet Metal Processing: Cutting of various sheet metal parts, chassis, cabinets, etc.
● Automotive Industry: Cutting of auto parts, body frames, chassis components, etc.
● Shipbuilding & Construction Machinery: Cutting of large steel structures, ship parts, engineering machinery components, etc.
● Precision Parts: Cutting of precision electronic parts, medical devices, semiconductor components, etc.
● Other Industries: Advertising signs, hardware products, aerospace parts, etc.
How does the Linear Rail Gantry Laser Cutting Machine work?
Product features and advantages
● Sturdy and durable structure: The gantry crossbeam and bed are made of high-strength aluminum alloy or steel plate, and undergo high-temperature annealing and precision gantry milling to eliminate internal stress and ensure long-term continuous operation without deformation. The linear guide is equipped with fully enclosed protection, which can effectively prevent dust and debris from entering, extend the service life of the equipment, and adapt to the harsh working environment of industrial production.
● High Precision & Stability: Equipped with high-precision linear guide rails and gantry double-drive structure, the machine runs smoothly without vibration, ensuring the positioning accuracy and repeat positioning accuracy of the cutting process. The X, Y and Z axes are equipped with high-performance servo motors, which realize fast and precise movement, with a minimum line width of 0.1mm and a repeat positioning accuracy of ±0.02mm, effectively reduces cutting deviation and ensuring the flatness and smoothness of the cutting section.

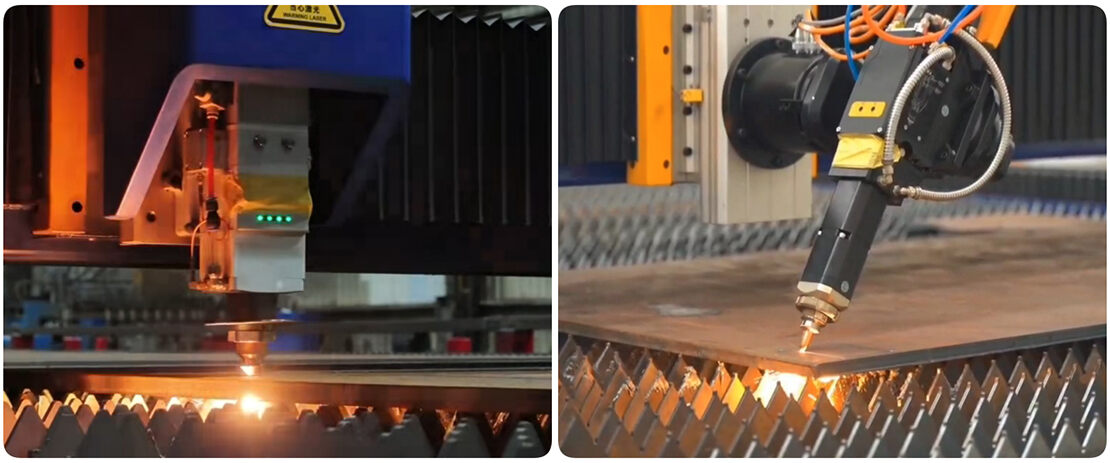

● Efficient Cutting Performance: Equipped with imported or domestic high-quality fiber laser sources (power range: 3KW-60KW optional), the machine features high energy concentration, fast cutting speed and high efficiency. It can quickly cut carbon steel, stainless steel, aluminum alloy, copper, galvanized sheet and other metal materials of different thicknesses, with ultra-high production efficiency. The cutting speed of thin plates can reach 100 meters per minute, and the layout, marking, and cutting can be completed in one operation. The cutting efficiency is 3-5 times that of traditional cutting methods. The narrow kerf design also improves material utilization and reduces production waste.
● Intelligent & User-Friendly Operation: Equipped with FSCUT or other professional CNC control systems, the machine features an intuitive and easy-to-use interface, and beginners can quickly master it. It supports real-time monitoring, automatic edge detection, path optimization and other functions, and can achieve automatic cutting of complex shapes. It can also be equipped with automatic feeding and unloading devices to enable unmanned operation and improve production efficiency.

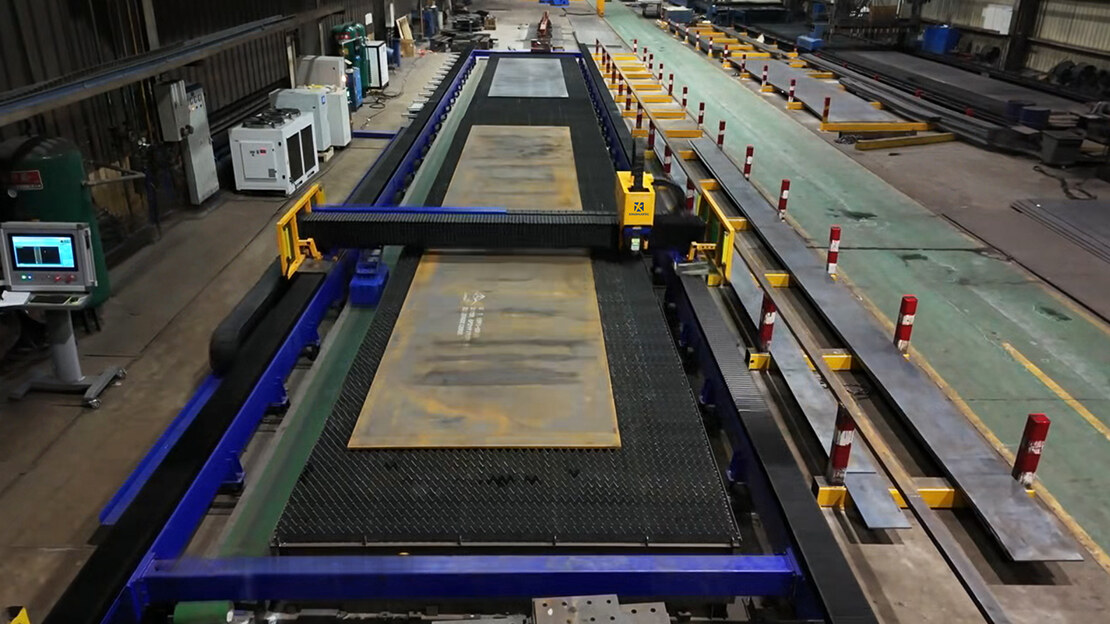

● Customizable & Versatile: The processing area can be customized according to customer needs, with a length ranging from 13 to 26 meters or longer and a width of 3 to 5 meters. This configuration meets the cutting requirements for extra-large workpieces in industries such as shipbuilding and large steel structure fabrication. It can be equipped with a plate bevel cutting system to provide bevel cutting capability and reduce the cutting process of medium and thick plates.
Detailed Technical Parameters

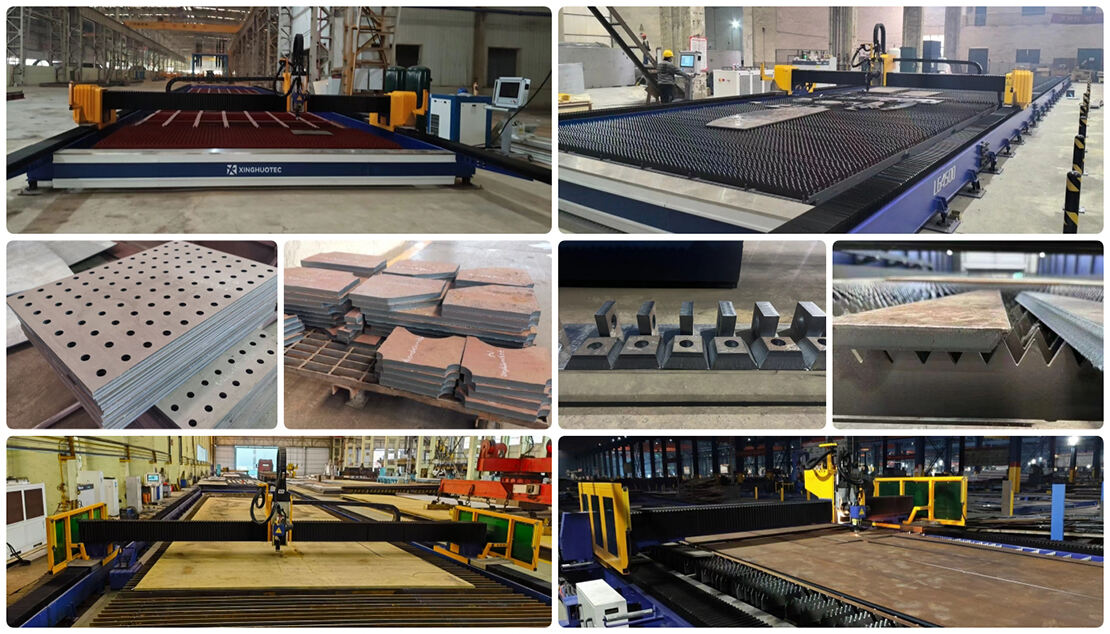

Customer cases and cutting samples
After-Sales Service & Support
We attach great importance to every customer’s experience and provide a comprehensive, efficient and professional after-sales service and technical support system to ensure the continuous and stable operation of your equipment and address your concerns in the production process.
● On-Site Installation & Commissioning: We provide on-site installation and commissioning services. Our professional technical team will arrive at your factory to complete equipment installation, commissioning and test runs, ensuring that the equipment meets the design standards and your production needs before formal operation.
● Professional Technical Training: Customized one-on-one technical training is provided, covering equipment operation, programming skills, daily maintenance, fault diagnosis and handling, as well as parameter adjustment for different materials and processes. We ensure that your operators can master the equipment operation skills proficiently and operate independently.
● Warranty Service: We provide a 1-year whole-machine warranty (including laser source, CNC system, servo drives, and other key components ). During the warranty period, we will provide free maintenance and replacement of faulty components (excluding man-made damage and consumables).
● Emergency Technical Support: Our 7×24-hour online technical support team is always on call. You can contact us through hotline, email or online chat, and we will respond to your questions and technical issues in the shortest time. For complex faults that cannot be resolved remotely, we will arrange professional engineers to provide on-site maintenance in a timely manner.
● Value-Added Services: We provide long-term value-added services, including equipment upgrades, consumables supply, remote monitoring and diagnosis, and customized process optimization. We regularly update the cutting parameter database and software system to help you improve production efficiency and reduce operating costs.
Pre-sales Service
One-on-one consultative service
Assist customers in equipmentselection
Customized Solutions
Transportation plan consultation
In-sales Service
Production supervision
Communicate project progress in atimely manner
Factory debugging and testing
After-sales Service
Transport Service
Installation Service
TRAINING
Quality Assurance Service
Spare Parts Service
FAQs
Q: What materials can the Linear Rail Gantry Laser Cutting Machine cut?
A: It is mainly used for cutting metal materials, including carbon steel, stainless steel, aluminum alloy, copper, galvanized sheet, titanium alloy and other common metal materials. It is not suitable for cutting non-metallic materials such as wood, plastic and glass.
Q: Does the equipment meet international export standards?
A: Yes. The equipment complies with international standards such as CE, FDA and ISO, and has passed relevant quality testing and certification. It can meet the import requirements of Europe, America, Southeast Asia and other regions, and supports customized configuration according to the electrical standards of different countries (such as voltage, plug type).
Q: What is the delivery time for export orders?
A: The standard delivery time is 15-30 working days. For customized models or large-volume orders, the delivery time will be appropriately extended to 30-60 working days, depending on the specific configuration and order quantity. We will also provide professional logistics solutions to ensure the safe and timely arrival of the equipment.
Q: How to solve the technical problems encountered during use?
A: We provide 24-hour online technical support (by phone, email and video call ). For complex technical problems, our overseas after-sales engineers can provide on-site maintenance within 72 hours (depending on the region). In addition, we provide free operation and maintenance training for customers operators.
Q: Can the equipment be customized according to specific needs?
A: Yes. We support comprehensive customization, including processing area (length, width), laser power, control system, automatic feeding and unloading device, etc. Customers can provide thier specific requirements according to their own production needs, and we will provide professional customized solutions.
