Lifting Capacity: 3–32 tons (Customizable)
Span Length: 8–30 m (Customizable)
Lifting Height: 6–18 m (Customizable)
Product Overview
Single girder gantry cranes are popular light & medium duty outdoor lifting equipment widely used for material handling, loading and unloading, and workpiece transfer. It features simple structure, stable operation, easy installation and low maintenance costs.
XINGHUOTEC offers three mature series of products: MH series standard straight leg full gantry, MHL series Partial-hanging L-shaped gantry crane, and BMH series single beam semi gantry crane.
All series can be equipped with traditional CD/MD electric hoist (cost-effective) or European low-headroom hoist (high precision & high working duty classification) to meet different budget and working requirements.
Application Scenarios
Single girder gantry cranes are widely used in steel stockyards, steel structure factories, concrete precast yards, stone processing yards, logistics warehouses, construction sites, outdoor area of machinery workshops, railway freight yards and ports auxiliary handling, and other scenarios.
Different Types of Single Girder Gantry Cranes
XINGHUOTEC provides three core series to suit various site conditions:
1. MH Series – Standard straight-leg full gantry crane, an economical general-purpose model.
2. MHL Series – L-type offset hoist gantry crane (partial suspended hoist design), large inner passing space, specially for long workpieces.
3. BMH Series – Single girder semi gantry crane, one leg + one building-side fixing design, space-saving for workshop side yards.

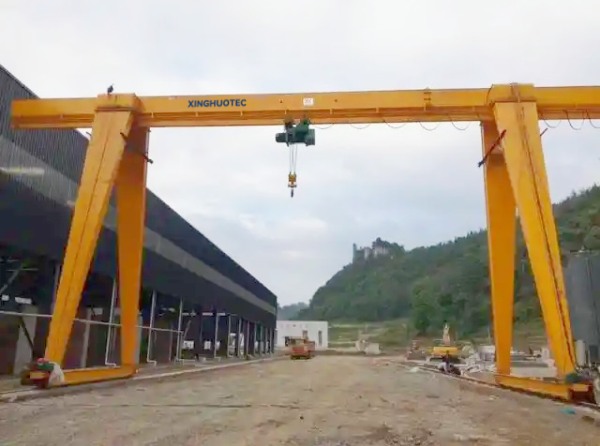

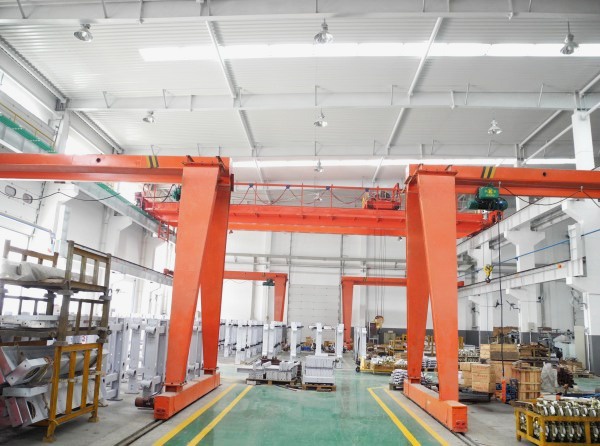

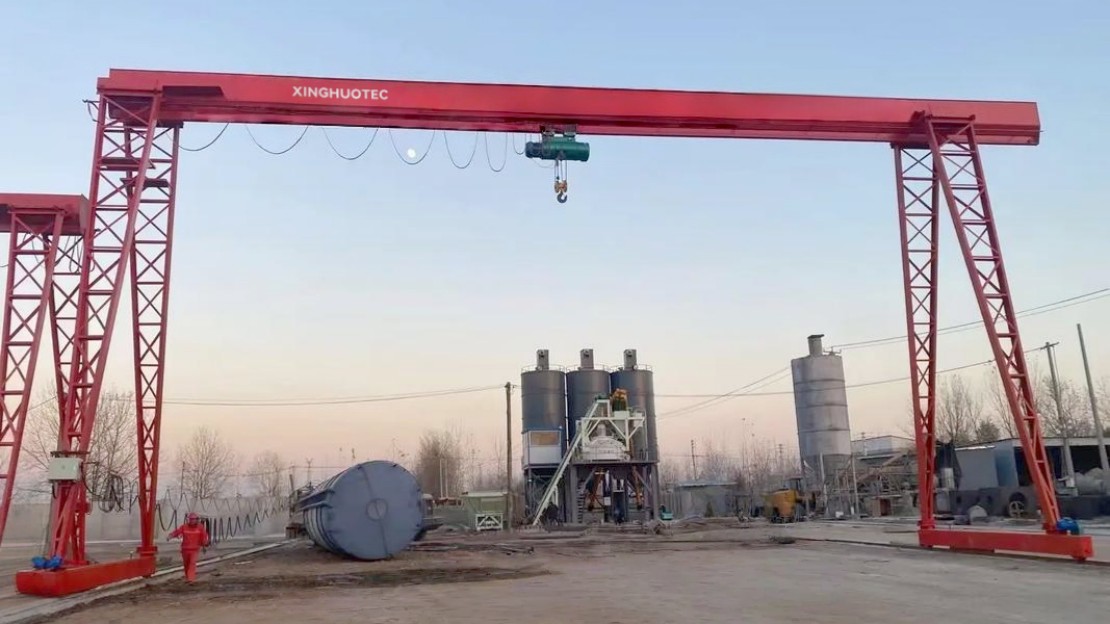

MH Series Standard Single Girder Gantry Cranes
Technical features:
MH gantry cranes are conventional full gantry crane with double straight vertical legs and box-type main girder. Matched with standard CD/MD electric hoist, it is the most cost-effective general-purpose model for ordinary outdoor lifting work. Their simple structure, easy maintenance and interchangeable spare parts make them popular.
Ideal for: Regular material lifting in ordinary factory areas, storage yards, and construction sites.

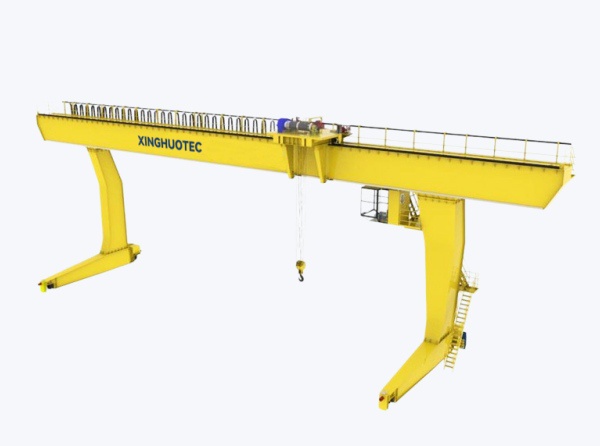

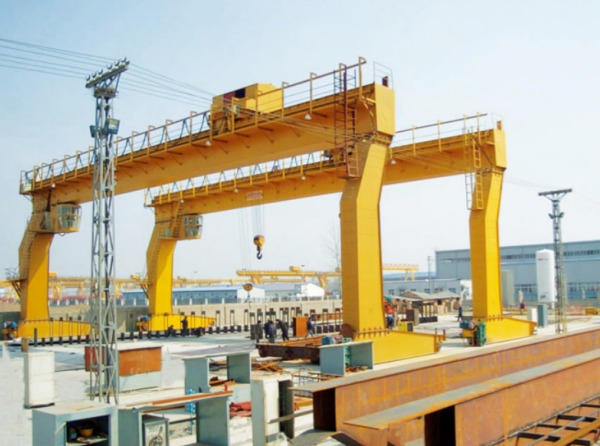

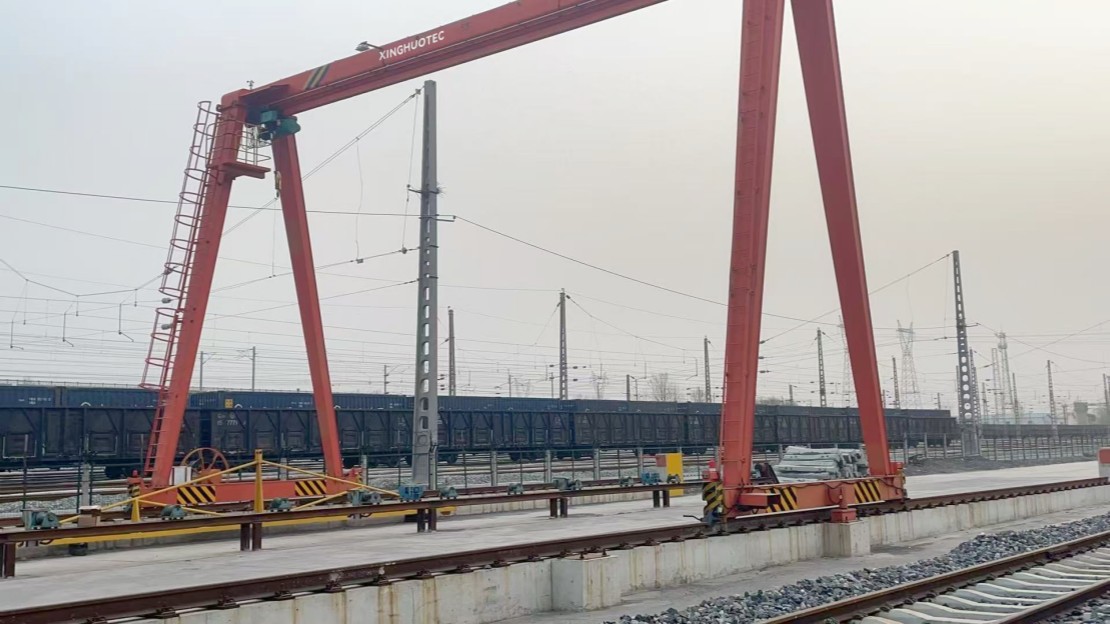

MHL Series L-Type Offset Hoist Gantry Cranes
Technical features:
MHL gantry crane are partial hanging (offset hoist) type gantry cranes with L-shaped bent support legs. Different from conventional centered hoist design, the electric hoist is installed on the inner side of the main girder, which greatly increases the internal horizontal clearance. Long steel pipes, profile steel and precast beams can pass freely through the gantry without collision.
Ideal for: Steel markets, pipe yards, prefabricated beam yards, long material processing sites.
BMH Series Single Girder Semi Gantry Cranes
Technical features:
BMH semi gantry cranes feature single-side leg structure. One side travels on ground rails, while the other end is fixed on the factory building column. It saves large floor space and foundation costs, ideal for workshop edge outdoor narrow working areas.
Ideal for: Factory building sides, indoor-outdoor transition zones, and wall-adjacent small yards.
Dual Hoist Configuration is Optional

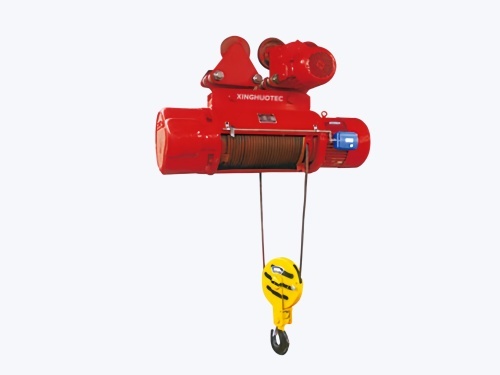

Traditional CD / MD Electric Hoist
Standard configuration for MH and MHL economy models. Mature structure, low price, easy maintenance and part replacement. Suitable for general intermittent working conditions A3-A4.

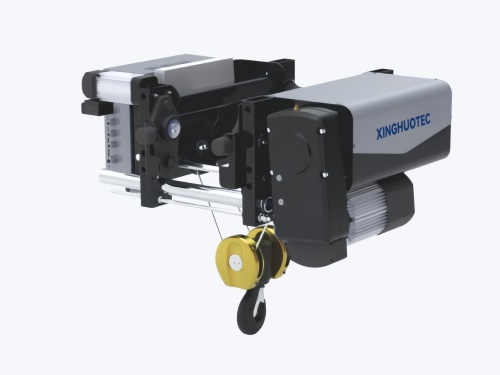

European Low Headroom Electric Hoist
Optional upgrade for all series. Compact body, ultra-low headroom, variable frequency speed, low noise, high working duty classification A5-A6, high positioning accuracy, suitable for high-end factory precise lifting.
Technical Parameter
Core Advantages of Single Girder Gantry Crane
● Full coverage of MH/MHL/BMH series, meeting all indoor, outdoor, and semi-outdoor operating conditions.
● Unique MHL offset hoist design solves long-workpiece lifting problems.
● Dual hoist options balance economy and high-end performance.
● Stable structure, low failure rates, easy installation and maintenance.
● Full customized sizes & professional export standards.
How to Choose the Right Single Girder Gantry Crane?
The key to selection is accurate demand matching. Balance load, span, working intensity and site conditions to avoid over-design or under-specification, ensuring safe, efficient and cost-effective crane operation.
Quick Selection Checklist：Confirm load safety margin → Match site span & clearance → Select suitable working duty classification → Confirm cantilever & moving mode → Match hoist and environmental configurations → Verify on-site power compatibility.
Step 1：Lifting Capacity
Standard load range: 3–20 tons (customizable up to 32 tons). Reserve a 20%–30% safety margin based on the maximum lifting weight (including accessories) to avoid overload risks. Do not oversize the model to prevent unnecessary costs and space waste.
Step 2：Span & Working Space
Span is the distance between two support legs, determining working coverage:
● 6–10m: Narrow workshops, light intermittent handling.
● 10–15m: Most versatile, for regular factories and warehouses.
● 15–20m: Large outdoor yards and steel processing sites.
● Over 20m: Custom thickened main girders required for stability.
Reserve safety clearance on both sides for anti-collision and buffer installation;Longer spans come with higher costs, so over-design should be avoided.
Step 3：Duty Class (Match Working Intensity)
Comply with FEM/ISO standards to match daily operation hours and frequency:
● A3–A4 (Light): 1–2 hours daily, sporadic maintenance and handling.
● A5 (Medium): 4–6 hours daily, regular factory/warehouse cyclic operations (most common).
● A6 (Heavy): Over 8 hours daily, high-frequency batch production and yard operations.
Upgrade duty class and add dust-proof, anti-corrosion configurations for harsh environments.
Step 4：Key Structural & Mobility Configurations
4.1 Cantilever
No cantilever (closed independent area), single cantilever (truck loading/unloading), double cantilever (max working range).
4.2 Moving Type
● Rail-mounted: Stable, high precision, for fixed long-term working areas.
● Rubber-tyred: Rail-free, flexible, for temporary and multi-site operation.
● Semi-gantry: Space-saving, for indoor edge operation.
4.3 Hoist Type
All series can be equipped with traditional CD/MD electric hoist (cost-effective) or European low-headroom hoist (high precision & high duty classification) to meet different budget and working requirements.
Step 5：Environment & Power Adaptation
Outdoor cranes require rain-proof, rust-proof and wind-proof devices; special flammable, explosive or corrosive scenarios need explosion-proof and anti-corrosion customization. Match on-site voltage (380V mainstream) and frequency to avoid power mismatch failures.
Step 6：Common Selection Pitfalls to Avoid
Avoid over-sizing parameters (wasting costs), underrating working intensity (shortening service life), ignoring site clearance/ground bearing capacity, and neglecting future capacity expansion demands.
Delivery Service Introduction
We provide standardized delivery services for all series of cranes. Before shipment, we verify main components, electric hoists/winch trolley, electrical systems and all accessories according to packing lists to ensure completeness. Steel structures are protected against rust and scratches, while precision electrical parts are packaged with shockproof, moisture-proof and dust-proof materials. Rainproof reinforcement is applied for outdoor transportation. We monitor logistics in real time for on-time delivery and assist customers with on-site unpacking, inspection and handover.

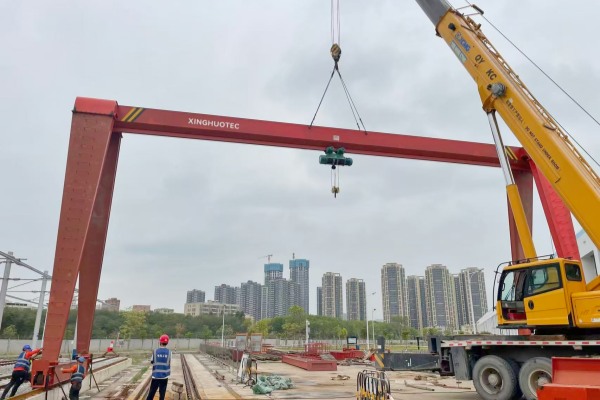

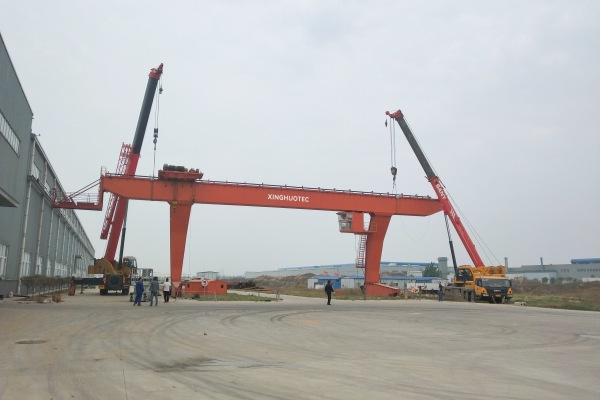

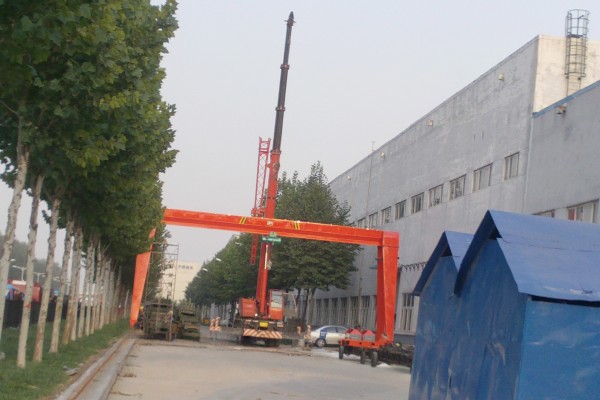

Installation Service Introduction
Our certified professional installation team provides standardized one-stop installation, commissioning and acceptance services in strict accordance with national codes and safety standards, ensuring compliant installation, stable operation and reliable performance of cranes.
Our service covers site surveys, construction plan formulation, track adjustment, beam assembly, hoist positioning, electrical wiring, safety device commissioning, overall calibration, no-load/load trial operation and final acceptance. We strictly control installation accuracy, standardize key procedures and implement full safety management to eliminate construction risks.
After installation and commissioning, we conduct comprehensive performance and safety inspection to guarantee qualified lifting, traveling and braking functions. We provide operation and maintenance training, deliver complete technical and certification documents, assist with equipment inspection and filing for compliant operation, and offer long-term after-sales maintenance and technical support.
On-site Cooperation Requirements for Customers
● Site and Foundation Condition Cooperation: The customer shall complete the construction of crane beams, track foundations and embedded parts in accordance with drawings and national standards. Clean the construction site to ensure sufficient working space, and provide windproof, rainproof and drainage measures. Suspend construction in severe weather as required.
● Power Resource Supporting Cooperation: The customer shall provide stable 380V three-phase industrial power supply with qualified distribution box, leakage and overload protection near the working area to ensure uninterrupted power supply during installation, commissioning and trial operation, with dedicated personnel for power management.
● Equipment Arrival and Hoisting Cooperation: Upon equipment arrival, the customer shall assign staff to cooperate with unpacking, inspection and handover. Prepare hoisting equipment such as truck cranes and forklifts, together with necessary tools and auxiliary labor to assist in unloading, handling and hoisting.
● On-site Safety and Construction Cooperation: The customer shall manage on-site safety, install safety barriers and warning signs, remove potential hazards and restrict unauthorized access. Cooperate with construction access procedures and safety briefings, assign on-site coordinators to resolve site and cross-operation issues and ensure valid working conditions.
● Acceptance and Training Cooperation: After commissioning, the customer shall arrange relevant personnel to cooperate with trial operation, testing and final acceptance. Participate in operation, maintenance and safety training to ensure standardized operation, and cooperate with equipment filing and annual inspection procedures.
Contact Us for Customized Solution
We provide one-stop crane solutions including free design, custom production, global shipping and full-cycle after-sales service. All products are strictly tested before delivery to ensure stable performance.
Send your workshop drawing & lifting demand to get free technical drawing & best quotation within 24 hours!
