Production capacity: 25-120 m³/h
Mobile mode: Traction movement
Main Types: Hopper Type / Belt Type
What is a Mobile Concrete Batching Plant？
A Mobile Concrete Batching Plant is an integrated, portable production equipment that combines loading, weighing, mixing and discharging functions. It is designed for flexible construction applications, offering high mobility and stable performance, providing high-quality concrete for various construction projects.
It is widely used in road and bridge construction, water conservancy projects, rural infrastructure construction, emergency repair projects, and small and medium-sized commercial and civil construction projects. It is especially suitable for temporary construction sites, remote construction areas and projects requiring frequent relocation.
What Are The Types of Mobile Concrete Batching Plants?
According to the feeding method, mobile concrete mixing plants are divided into two types: Hopper Type and Belt Type.
According to theoretical productivity, mobile concrete mixing plants are divided into several main models: YHZS-25, YHZS-40, YHZS-50, YHZS-75, YHZS-90, and YHZS-120, which are suitable for projects of different scales.

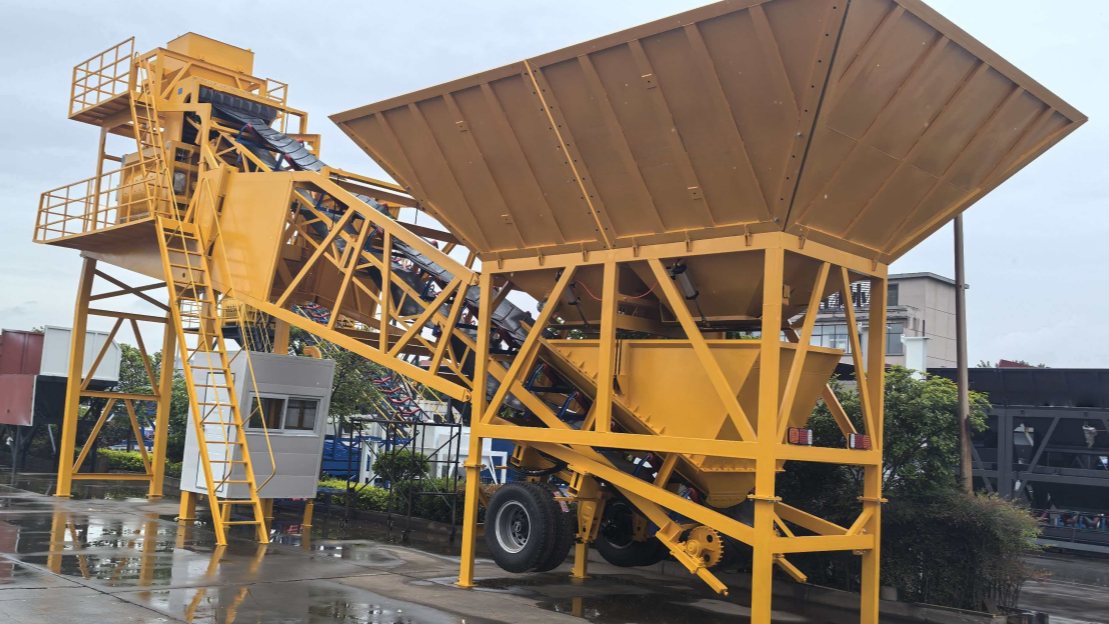

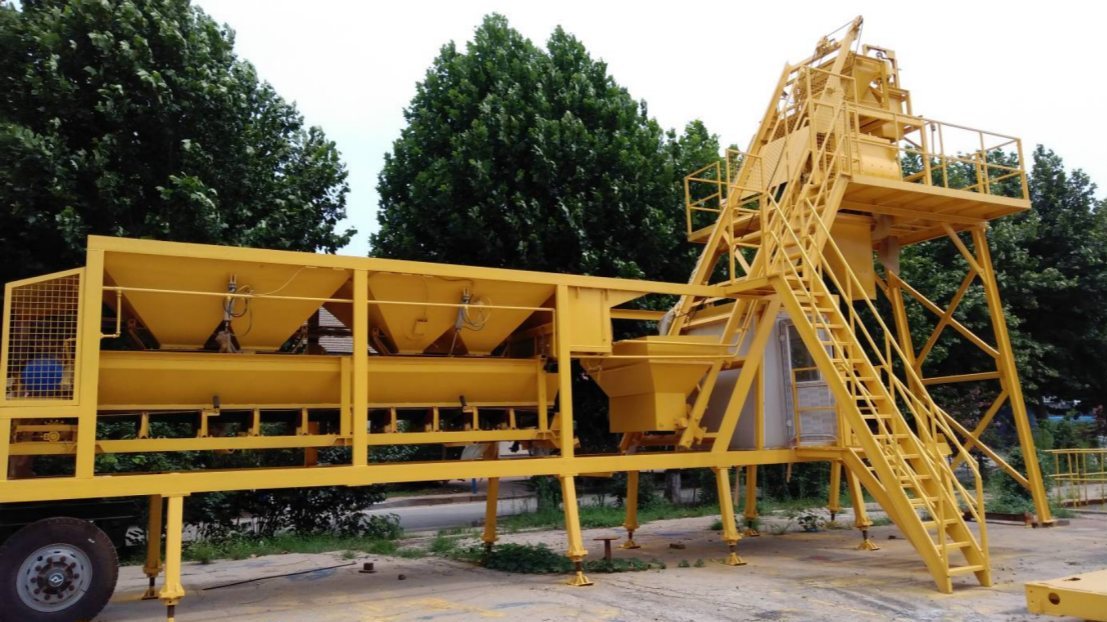

Hopper Type Mobile Concrete Batching Plant
Model: YHZS-25 / YHZS-40

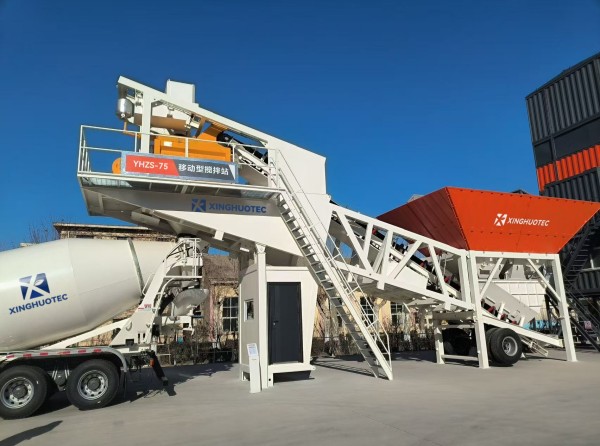

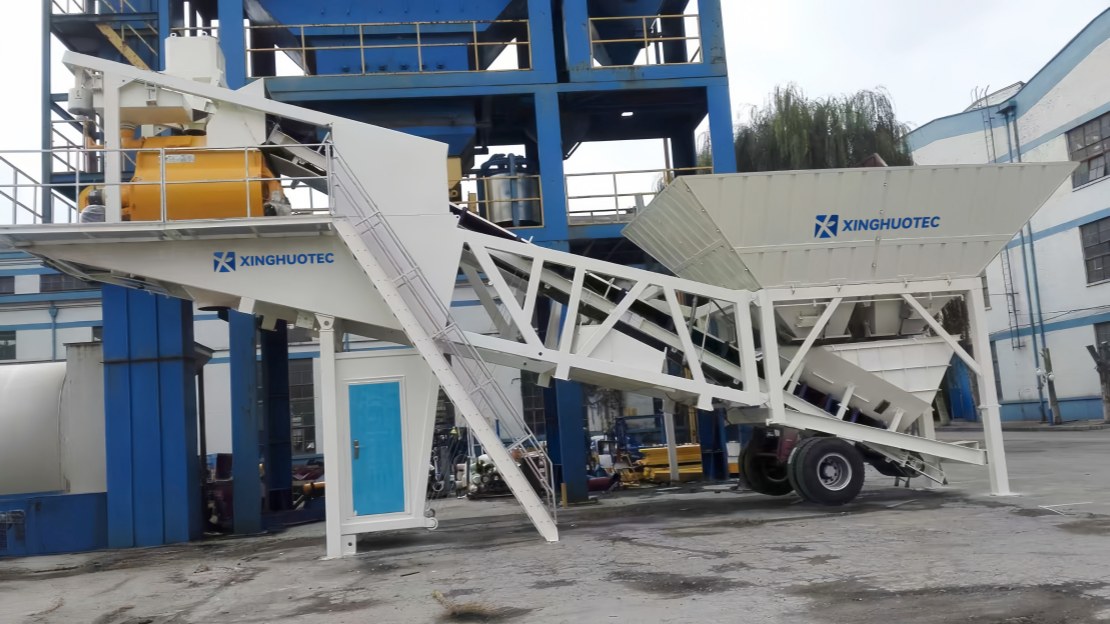

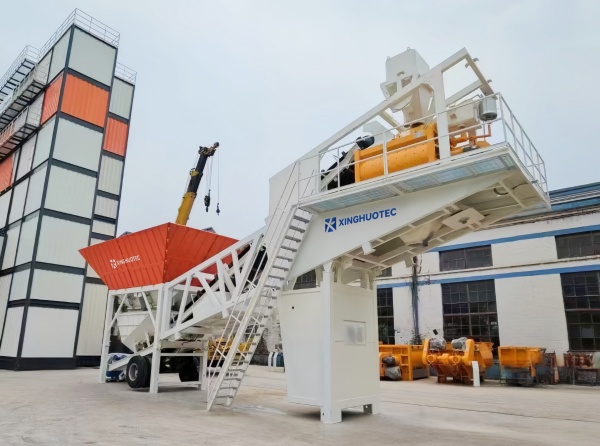

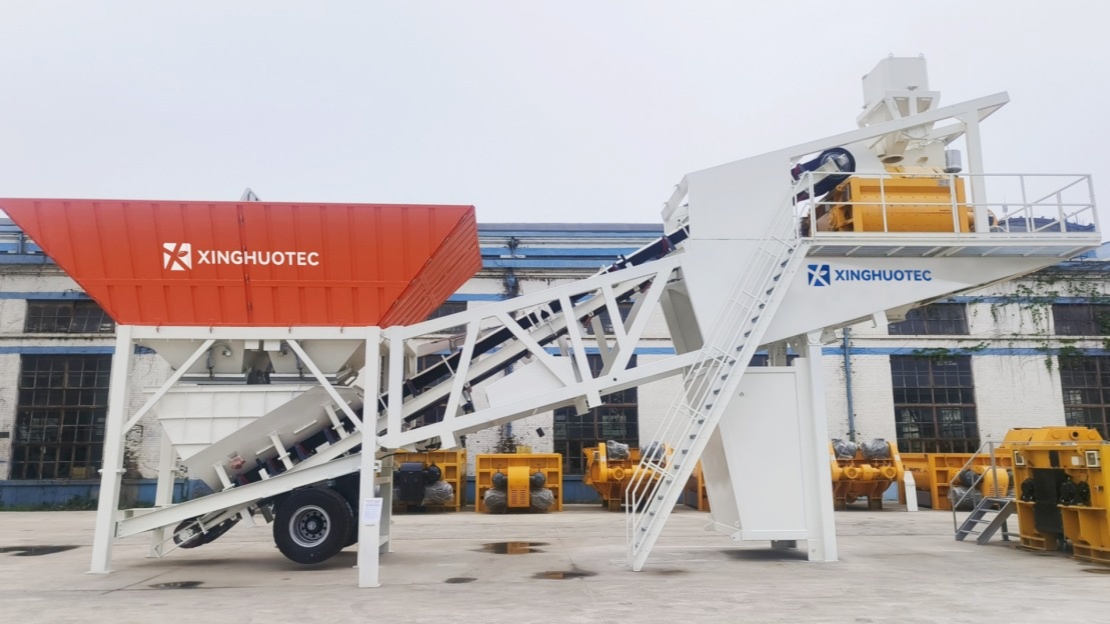

Belt Type Mobile Concrete Batching Plant
Model: YHZS-50 / YHZS-75 / YHZS-90 / YHZS-120
Key Features of Mobile Concrete Batching Plants
It is moved by a towing vehicle, and the unit integrates all functions such as storage, weighing and mixing. It has a compact structure and easy mobility. It is an ideal choice for small and medium-sized temporary projects and scattered construction sites. Its core characteristics are high cost-effectiveness and rapid deployment, suitable for small to medium batch concrete production, and compatible with various towing vehicles.
● Flexible Mobility: With a rear axle installed, the concrete batching plant can be towed as a complete unit by a tractor. It is suitable for various road conditions such as highways, rural roads and internal construction site roads, with flexible relocation and no need for special transportation equipment.
● Output Range: 25-120m³/h, which is suitable for small and medium-sized temporary projects, rural self-built houses, emergency repair and other needs.
● Rapid Installation and Operation: Compact structure, small footprint, low investment cost, rapid deployment, and can complete installation and commissioning and start production within 1–3 days. Simple operation, no need for professional operators, convenient maintenance, suitable for short-term construction and multi-construction site transfer scenarios.
● Multi-Scenario Adaptation: Rural self-built houses, small municipal emergency repair projects, small mountainous projects, emergency rescue, short-term rental projects, and scattered construction sites with narrow sites that require frequent relocation.
Comparison Between Mobile and Stationary Batching Plants
Specifications of Mobile Concrete Batching Plants
The following are the key technical specifications of the standard models of XINGHUOTEC Mobile Concrete Batching Plant, which can be customized and adjusted according to customer needs.
Note: The cement silo and screw conveyor are optional equipment and are not included in the above specifications.
Why Choose XINGHUOTEC Mobile concrete batching plant?
● Flexible Mobility & Rapid Deployment - The complete plant unit is integrated on a trailer-mounted mobile chassis, which can be easily towed and relocation. With minimal foundation work required, the plant can typically be installed and commissioned within 1–3 days.
● High Precision Weighing & Uniform Mixing - Equipped with a high-precision weighing system, the plant provides an aggregate weighing accuracy of ±2% and a cement, water, and admixture weighing accuracy of ±1%.The JS twin-shaft compulsory mixer delivers fast and homogeneous mixing, ensuring consistent concrete quality.
● Fully Automatic Operation & User-Friendly Control - Equipped with a fully automatic PLC control system, it supports manual and automatic both manual and automatic operating modes, with clear operation interface and easy operation. and easy mastery. It can achieve automatic batching, mixing and discharging, reducing labor requirements.
● Durable Structure & Strong Adaptability - Key components use high-quality parts with excellent wear resistance and corrosion resistance. It supports both electric and diesel power options and can adapt to challenging construction environments such as remote mountainous areas and tunnels.
● Energy Saving & Environmental Protection - Equipped with a dust collection system and noise reduction device, it complies with applicable environmental standards. The optimized power system saves 10-15% energy compared with similar products,contributing to more sustainable production.
FAQs About Mobile Concrete Batching Plants
Q: How long does it take to install and put the mobile concrete batching plant into operation?
A: No complex foundation work is required. It only requires a flat installation area (slope ≤ 3°). The small model (YHZS25) can be installed and put into operation within 1-3 hours, and the medium and large models (YHZS40/YHZS50/YHZS75) can be installed and commissioned within 1-3 days. Only a 30-ton crane is needed for installation and relocation when necessary, which is quick and convenient.
Q: Can the mobile concrete batching plant operate in remote areas without a power supply?
A: Yes. Our mobile concrete batching plant supports both electric and diesel power options. Where external power is unavailable, the diesel engine can be used to drive the equipment to operate normally, making it suitable for remote mountainous areas, tunnels and other challenging construction.
Q: What is the service life of the mobile concrete batching plant, and how can it be maintained to extend its service life?
A: Under normal operation and regular maintenance, the service life of the equipment can reach 8-10 years. Daily maintenance mainly includes keeping the equipment clean, removing accumulated materials in a timely manner; regularly checking and supplementing lubricating oil; regularly inspecting weighing sensors and electrical components; cleaning the mixer and discharge hopper in time after use to prevent concrete from hardening.
