Horizontal reach: 12–36 m
Slewing range: 360 °
Concrete Placing Boom type: Spider / Crawler / Wheel Type / Self-Climbing
Concrete Placing Boom Product Overview
Concrete placing boom is a high-efficiency concrete delivery machine designed for precise and fast concrete pouring in construction projects. Our XINGHUOTEC placing boom adopts high-strength structural steel, hydraulic drive system and flexible rotary design, which can realize 360° all-round concrete distribution, greatly improving pouring efficiency, reducing labor intensity and ensuring uniform and high-quality concrete pouring.
Suitable for residential buildings, bridges, high-rise construction and other engineering scenarios, it provides stable performance, easy operation and long service life to meet various on-site construction requirements.
Concrete Placing Boom Application Scenarios

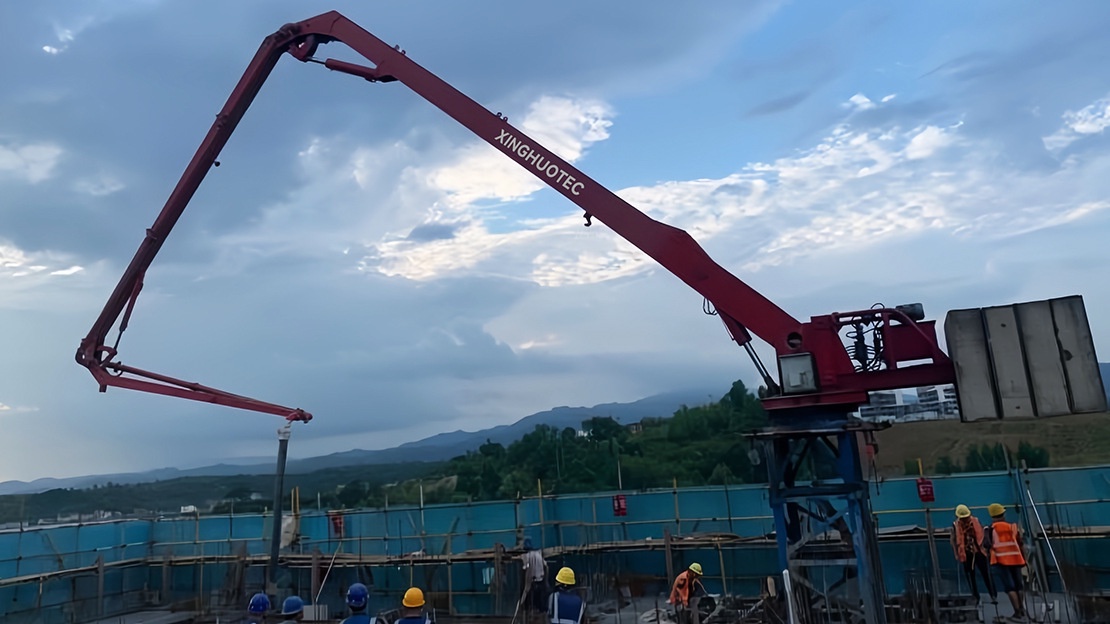

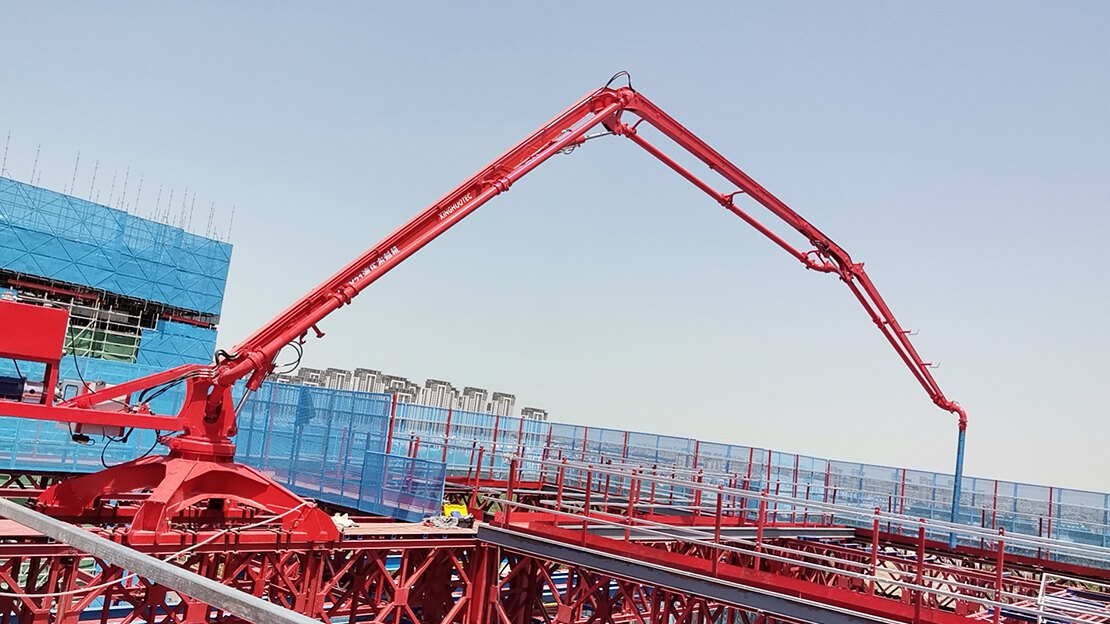

● High-rise residential & commercial building construction
● Bridge, viaduct and culvert pouring
● Water conservancy projects, dam and reservoir construction
● Industrial workshop, foundation and large-volume concrete pouring
● Tunnel, subway and municipal engineering
Advantages of XINGHUOTEC Concrete Placing Boom
The hydraulic concrete placing boom is an intelligent concrete delivery machine evolved from traditional placing boom. It is easy to operate, reduces labor costs, and can significantly improve pouring efficiency and quality.
● 360° Flexible Slewing System: Utilizing cutting-edge boom technology, the boom features an "R, Z, M" type folding design, enabling 360° full rotation and simultaneously accomplishing both the pitch luffing and the boom unfolding and folding actions. Perfectly solve the pouring needs in various narrow and complex locations.
● Adapt to various complex pouring construction scenarios: It is not affected by the size and shape of the construction level, and can adapt to various different construction floors and complex construction site needs. In addition to meeting the daily construction needs of residential buildings, industrial buildings, roads, bridges, etc., the hydraulic concrete spreader is particularly suitable for concrete pouring in high-rise and super high-rise buildings. There are multiple types to choose from, such as spider-type, wheeled-type, Crawler-type, and self-climbing-type.
● Easy Installation & Movement: With a compact structure, it is easy to lift and move. Depending on the need, it can be lifted to the appropriate pouring location using lifting equipment, and can be placed on floors, platforms, or simple platforms, offering great flexibility and maneuverability. The self-climbing model can utilize high-rise elevator shafts or floor slabs, and through hydraulic lifting, it can automatically climb along with the building floors.
● Stable Hydraulic & Electrical System: With a stable hydraulic and electrical system, the operation is simple, equipped with scientific safety protection devices, and it is economical and efficient.
Different Types of Concrete Placing Booms for Sale
XINGHUOTEC has the following types of concrete placing boom models for sale, including:
● Spider Concrete Placing Boom
● Crawler Spider Concrete Placing Boom

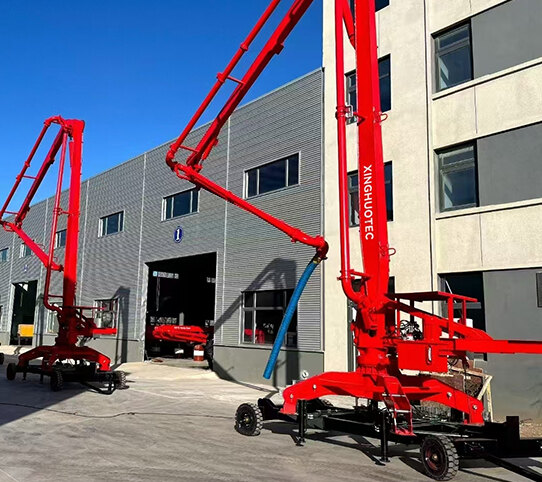

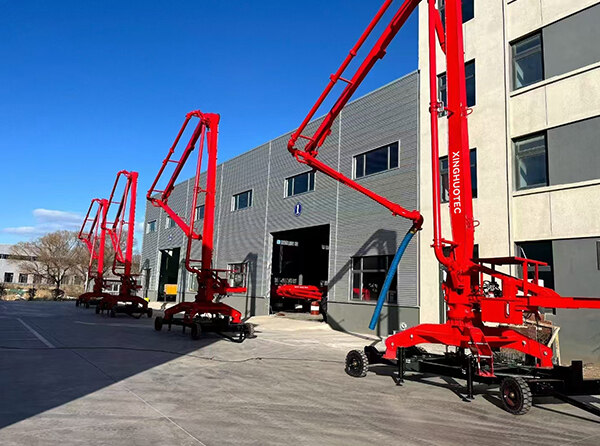

● Wheel Type Concrete Placing Boom
● Self-Climbing Concrete Placing Boom( Floors Fixed Type)
● Self-Climbing Concrete Placing Boom(Elevator Shaft Type)

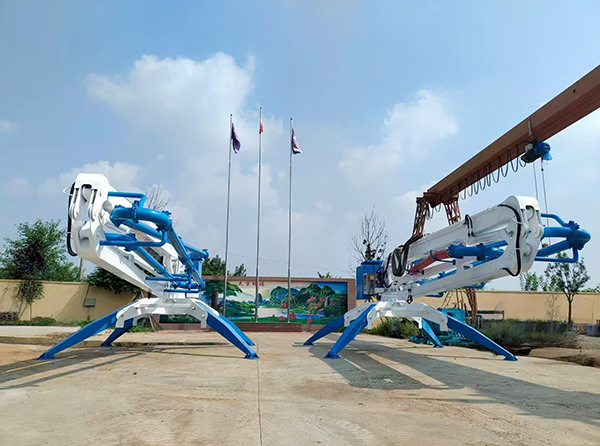

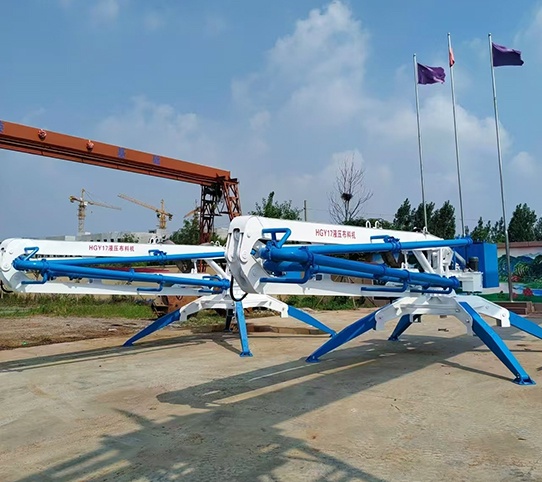

Spider Concrete Placing Boom
Features
● Compact and flexible hydraulic folding outriggers (spider-type legs)
● 360° continuous rotation
● Easy to move and position on job sites
● Suitable for narrow spaces and indoor construction
Advantages
● Small size, can enter elevators and narrow floors
● Strong stability with hydraulic support legs
● High mobility and fast setup
● Wide application in general construction and small projects
Models and horizontal reach
● HGY12 / HGY14 / HGY15 / HGY17 / HGY21 / HGY23
● 11.6m / 13.5m / 15m / 16.5m / 20.5m / 22.5m
Wheel Type Concrete Placing Boom
Features
● Four-wheel or hand-push movable frame
● Simple mechanical or hydraulic structure
● Light weight and easy to transport
● Suitable for flat ground working
Advantages
● Low cost and easy maintenance
● Convenient to push and move on flat floors
● High cost-performance for general housing construction
● Simple operation, suitable for small and medium construction sites
Models and horizontal reach
● HGY12 / HGY14 / HGY15 / HGY17 / HGY21 / HGY23
● 11.6m / 13.5m / 15m / 16.5m / 20.5m / 22.5m

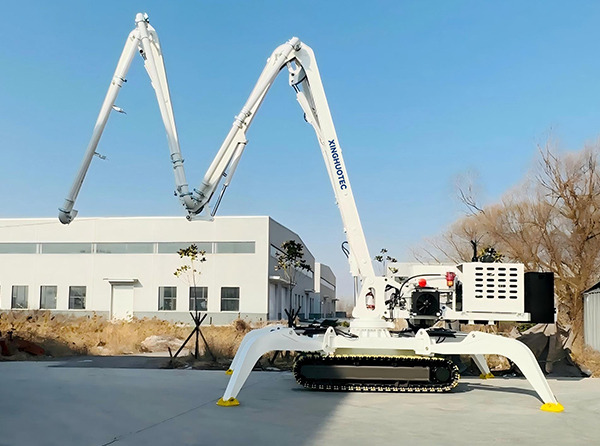

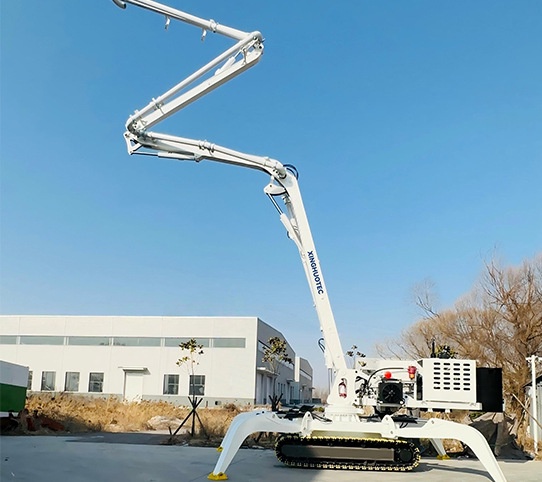

Crawler Spider Concrete Placing Boom
Features
● Full crawler walking chassis
● Hydraulic spider outriggers
● Self-propelled, no need for trailer or crane
● All-terrain adaptability
Advantages
● Excellent off-road performance (mud, sand, uneven ground)
● Strong self-moving ability, high construction efficiency
● High stability and safety
● Ideal for complex sites, sloping fields, and infrastructure projects
Models and horizontal reach
● HGL19 / HGL20 / HGL23
● 19m / 19.8m / 22.5m

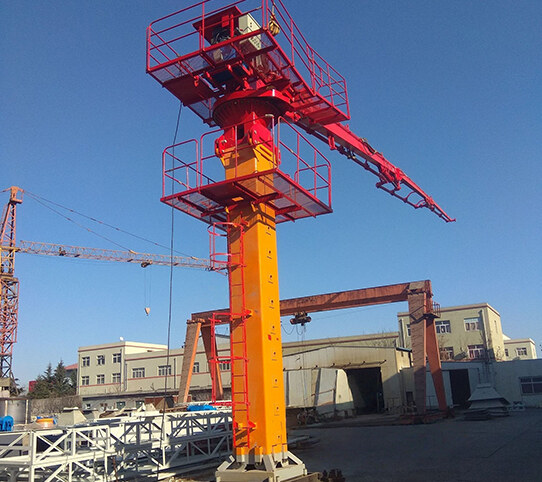

Self-Climbing Concrete Placing Boom (Elevator Shaft Type)
Features
● Installed and climbing inside the elevator shaft
● Compact structure, fits narrow shaft space
● Hydraulic climbing system
● High-precision positioning
Advantages
● Does not occupy exterior construction space
● Strong wind resistance and high safety
● Perfect for core tube and elevator shaft construction
● Especially suitable for super high-rise and commercial buildings
Models and horizontal reach
● HGY24 / HGY28 / HGY32 / HGY33 / HGY36
● 24m / 28m / 32m / 32.7m / 36m

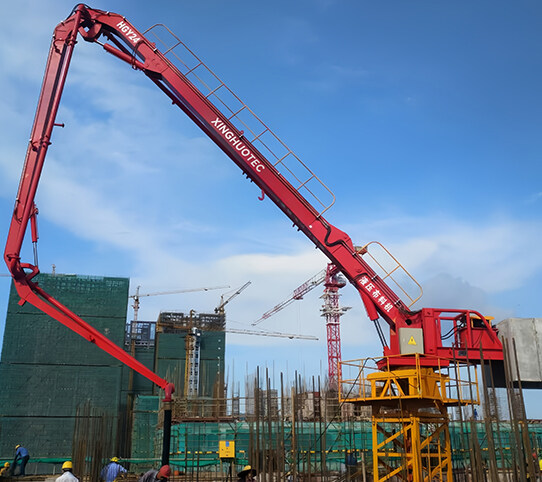

Self-Climbing Concrete Placing Boom (Floors Fixed Type)
Features
● Fixed and attached to building floor slabs
● Automatically climbs with the building rising
● High placing radius and strong stability
● No need for repeated hoisting
Advantages
● Specially designed for high-rise buildings
● High efficiency, reduces crane dependence
● Safe and stable working platform
● Saves labor and time in super high-rise construction
Models and horizontal reach
● HGY24 / HGY28 / HGY32 / HGY33 / HGY36
● 24m / 28m / 32m / 32.7m / 36m
Technical Parameters of Concrete Placing Boom
● Technical Specifications of Mobile Placing Boom
● Technical Specifications of Crawler Spider Concrete Placing Boom
● Technical Specifications of Mobile Placing Boom
How Much Does a Concrete Placing Boom Cost?
The price of a concrete placing boom varies greatly depending on the model, specifications, and configuration, The price range for standard products in the global market is from $10000 to $66000 per set.
Specifically,mobile spider-type models and wheel-type models are $10,000-$40,000, Crawler-type models are $32,000-$48,000, and self-climbing high-rise models are $49,000-$66,000.
The final price will also be affected by customization requirements, order quantity, and trade terms (EXW/FOB /CIF). Please contact us with your specific model and demand, and we will provide you with a competitive quotation.
Why Choose XINGHUOTEC Concrete Placing Boom?

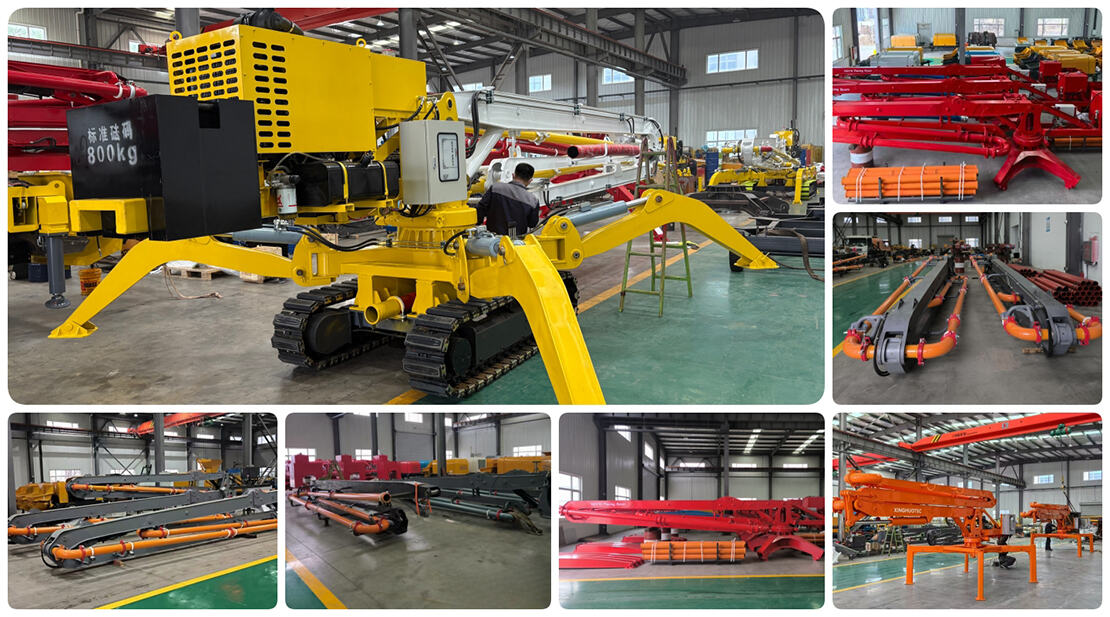

1. Strong Manufacturing Strength: Covering 30,000+ square meters of modern production workshop, equipped with advanced CNC cutting machines, precision welding robots and full-set testing equipment, realizing standardized and automated production of core components (boom, slewing mechanism, hydraulic system).
2. Professional R&D & Production Team: 50+ senior engineers with 20+ years of experience in construction machinery R&D and manufacturing, strict implementation of ISO9001 quality management system, CE, SGS certification, ensuring each product meets international standards.
3. Stable Production Capacity: Annual output of 500+ sets of concrete placing booms, supporting mass order delivery and short customization cycle (7-15 days for standard models, 20-30 days for customized models), ensuring on-time delivery for global projects.
4. Complete Quality Control System: From raw material inspection (high-quality manganese steel,hydraulic components) to semi-finished product testing, final assembly debugging and after-sales follow-up, forming a full-process quality supervision system to avoid product defects.
5. Support product customization: Complete models, support customized design for different construction sites.
6. Numerous successful cases: Stable quality, exported to many countries and regions, trusted by global customers.
7. Comprehensive and attentive service: Perfect after-sales service, technical guidance and spare parts supply.
Pre-sales Service
One-on-one consultative service
Assist customers in equipmentselection
Customized Solutions
Transportation plan consultation
In-sales Service
Production supervision
Communicate project progress in atimely manner
Factory debugging and testing
After-sales Service
Transport Service
Installation Service
TRAINING
Quality Assurance Service
Spare Parts Service
How Does a Concrete Placing Boom Work?
A concrete placing boom works based on hydraulic transmission and pipeline conveying, with a simple and efficient working principle, specifically as follows:
1. Stability Guarantee: Before working, the outriggers (spider-type, crawler-type or wheel-type) are fully expanded to support the whole machine, ensuring the stability of the boom during rotation and concrete pouring, and avoiding safety hazards caused by shaking.The Self-Climbing type adds an automatic climbing mechanism to follow the building’s rise.
2. Power Supply: The machine is powered by an electric motor (usually 380V/50Hz) to drive the hydraulic system, providing stable power for the boom’s movement and concrete conveying.
3. Hydraulic Control for Boom Movement: The hydraulic system drives the multi-section boom to fold, unfold, lift, lower and rotate 360° continuously. The boom angle (0°~180° for each section) and placing radius can be adjusted freely through wired/wireless remote control, enabling precise positioning of the concrete pouring point.
4. Concrete Conveying: Concrete is delivered to the boom’s pipeline through a concrete pump. Under the action of pump pressure, it flows along the pipeline to the end of the boom, and finally is poured to the designated construction position through the discharge port.

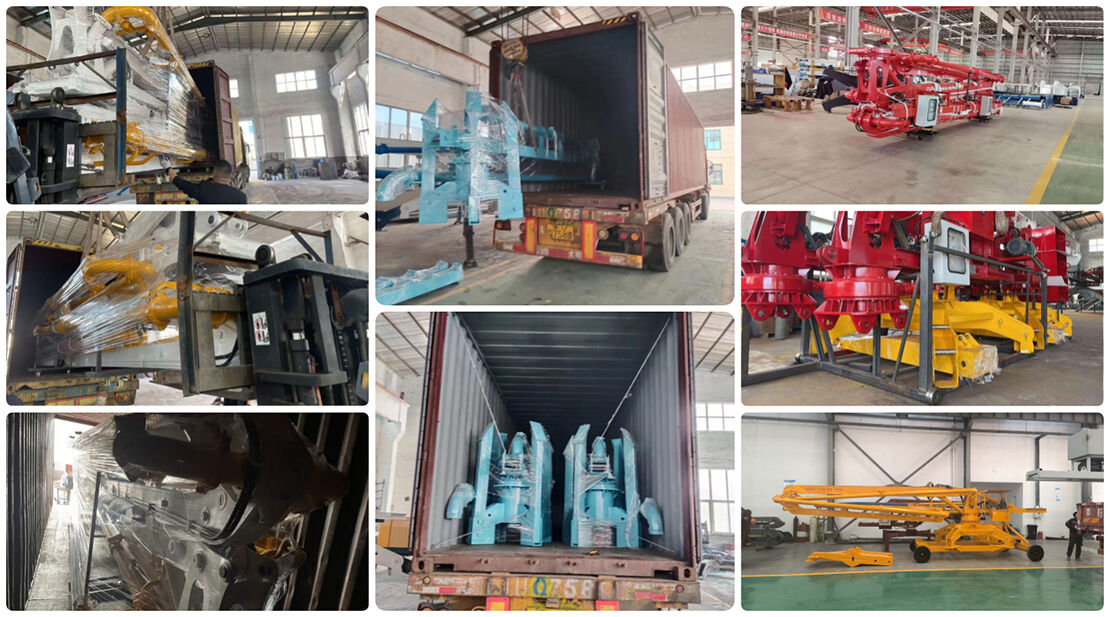

Packing & Shipping of Concrete Placing Booms
We adopt professional packaging and shipping methods to ensure that the equipment is not damaged during transportation, and provide door-to-door service according to the customer's needs.
● It is generally recommended to use 20GP or 40HQ containers for international long-distance transportation of the entire machine to prevent rust and accidental damage caused by rainwater and moisture during transportation.
● The chassis is secured with steel wire ropes and wooden blocks to prevent the equipment from swaying and shifting during transportation.
● Vulnerable parts are separately packaged in foam and cardboard boxes to avoid collision damage.
FAQs About Concrete Placing Boom
Q: Can the spider concrete placing boom enter the elevator for indoor construction?
A: Yes, our spider concrete placing boom is designed to be compact. The folded size can fit most standard construction elevators (usually within 1.8m×1.8m), which is very suitable for indoor and narrow floor construction.
Q: What is the maximum working height of your self-climbing concrete placing boom?
A: The maximum working height depends on the model. Generally, it can climb up to 150m (for high-rise buildings above 40 floors), and we can also provide customized solutions according to your project needs.
Q: Do you provide custom service for the concrete placing boom?
A: Yes, we support customized services, including adjusting the placing radius (12m-36m), modifying the outrigger span, and adding special control modes, to meet the specific needs of your construction site.
Q: What certificates do your products have for export?
A: Our concrete placing booms have passed ISO9001 quality system certification, CE certification (for European market). All certificates are valid and can be provided for customs clearance.
Q: What is the delivery time and payment terms?
A: Delivery time is 15-30 days after receiving the advance payment. Payment terms support T/T (30% advance payment, 70% before delivery), which is flexible and in line with international trade practices.
Q: How to solve technical problems after the machine is delivered?
A: We provide 24-hour online technical support. You can contact our professional engineers via video call, and we will guide you to solve the problem. If necessary, we can also arrange engineers to go to the site (paid service, depending on the region).
Q: What is the service life of the concrete placing boom?
A: Under normal maintenance and use, the service life is 8-10 years. We also provide lifelong supply of wearing parts (such as delivery pipes, seals) to ensure long-term stable operation of the machine.
Q: Can the crawler spider placing boom work on muddy or uneven job sites?
A: Yes, the crawler chassis is designed for all-terrain adaptability, with strong grip and stability, which can work normally on muddy, sandy and uneven construction sites without additional support.
